Appliances
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Samsung | 18 Cu. Ft. Counter-Depth Energy Star French-Door Refrigerator | RF18A5101SR | 32-3/16”W x 70-1/8”H x 30-9/16”D | Stainless | All Studio Units and 1-Bedroom Units under 700 sf. |
|
||
| Kitchen | Samsung | 27.0 Cu. Ft. Bottom Freezer Energy Star Refrigerator | RF27T5201SR | 35-73/4”W x 70”H x 35-3/8”D | Stainless |
|
|||
| Kitchen | Samsung | Slide-in, Electric Range | NSE6DG8100 | 29-15/16”W x 36”H x 28-11/16”D | Stainless | Glass Top Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL, RENDER, HARMON |
|
| Kitchen | Samsung | Dishwasher | DW60R2014US | 23 3/4 in x 32 1/4 in x 23 1/2 in | Stainless | Front Controls |
|
||
| Laundry | Samsung | 4.5 cu. ft. Washer | WF45T6000AW | 27”W x 38-3/4”H x 31-3/8”D | White | Front-load, Energy Star provide with 6” pedestal option |
|
||
| Laundry | Samsung | 7.5 cu. ft. Dryer | DVE45T6000W | 27”W x 38-3/4”H x 31-1/2”D | White | Front-load provide with 6” pedestal option |
|
||
| Kitchen | Samsung | Slide-in, Electric Range | NE63T8111SS | 29-15/16”W x 36”H x 28-11/16”D | Stainless | Glass Top |
|
||
| Kitchen | Samsung | 1.4 cu. ft. Countertop Microwave (Inside Pantry) | MS14K6000AS | 21-7/8”W x 12-5/16”H x 18-5/8”D | Stainless | Countertop Style; Verify Depth of Pantry |
|
||
| Kitchen | Samsung | 1.7 cu. ft. Over-the-range Microwave | ME17R7021ES | 29-7/8”W x 17-1/16”H x 16-1/2”D | Stainless | Over-the-range, Recirculating Venting |
|
||
| Kitchen | Samsung | Energy Star Dishwasher with Hidden Controls | DW80CG4021 | 23-7/8”W x 35”H x 24-3/4”D | Stainless | Top Controls Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $$ | NOVEL |
|
| Kitchen | Insinkerator | Disposal | Badger 5 Standard | hp | Provide with power cord |
|
|||
| Laundry | Samsung | 7.5 cu. ft. Dryer | DVE45T6000W | 27”W x 38-3/4”H x 31-1/2”D | White | Front-load |
|
||
| Laundry | Samsung | 4.5 cu. ft. Washer | WF45T6000AW | 27”W x 38-3/4”H x 31-3/8”D | White | Front-load with stacking kit as needed, Energy Star |
|
||
| Kitchen | Samsung | Under Cabinet Range Hood with LED Lighting | NK30A3300 | 30”W x 9-3/4” H x 19-3/4” D | Stainless | 350 CFM. Provide low switch control or remote for accessibility requirements |
|
| Samsung Stainless Refrigerator RF18A5101SR | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | 18 Cu. Ft. Counter-Depth Energy Star French-Door Refrigerator |
| Model # | RF18A5101SR |
| Size | 32-3/16”W x 70-1/8”H x 30-9/16”D |
| Color/Finish | Stainless |
| Notes | All Studio Units and 1-Bedroom Units under 700 sf. |
| Price Point | |
| Product Type | |
| Samsung Stainless Refrigerator RF27T5201SR | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | 27.0 Cu. Ft. Bottom Freezer Energy Star Refrigerator |
| Model # | RF27T5201SR |
| Size | 35-73/4”W x 70”H x 35-3/8”D |
| Color/Finish | Stainless |
| Notes | |
| Price Point | |
| Product Type | |
| Samsung Range NSE6DG8100 | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Slide-in, Electric Range |
| Model # | NSE6DG8100 |
| Size | 29-15/16”W x 36”H x 28-11/16”D |
| Color/Finish | Stainless |
| Notes | Glass Top Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| ADA Samsung Stainless Dishwasher DW60R2014US | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Dishwasher |
| Model # | DW60R2014US |
| Size | 23 3/4 in x 32 1/4 in x 23 1/2 in |
| Color/Finish | Stainless |
| Notes | Front Controls |
| Price Point | |
| Product Type | |
| ADA Samsung Side-by-side washer WF45T6000AW | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 4.5 cu. ft. Washer |
| Model # | WF45T6000AW |
| Size | 27”W x 38-3/4”H x 31-3/8”D |
| Color/Finish | White |
| Notes | Front-load, Energy Star provide with 6” pedestal option |
| Price Point | |
| Product Type | |
| ADA Samsung Side-by-side dryer DVE45T6000W | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 7.5 cu. ft. Dryer |
| Model # | DVE45T6000W |
| Size | 27”W x 38-3/4”H x 31-1/2”D |
| Color/Finish | White |
| Notes | Front-load provide with 6” pedestal option |
| Price Point | |
| Product Type | |
| ADA Samsung Electric Range Stainless NE63T8111SS | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Slide-in, Electric Range |
| Model # | NE63T8111SS |
| Size | 29-15/16”W x 36”H x 28-11/16”D |
| Color/Finish | Stainless |
| Notes | Glass Top |
| Price Point | |
| Product Type | |
| Samsung Stainless Countertop Microwave MS14K6000AS | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | 1.4 cu. ft. Countertop Microwave (Inside Pantry) |
| Model # | MS14K6000AS |
| Size | 21-7/8”W x 12-5/16”H x 18-5/8”D |
| Color/Finish | Stainless |
| Notes | Countertop Style; Verify Depth of Pantry |
| Price Point | |
| Product Type | |
| Samsung Stainless Over-the-Range Microwave ME17R7021ES | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | 1.7 cu. ft. Over-the-range Microwave |
| Model # | ME17R7021ES |
| Size | 29-7/8”W x 17-1/16”H x 16-1/2”D |
| Color/Finish | Stainless |
| Notes | Over-the-range, Recirculating Venting |
| Price Point | |
| Product Type | |
| Samsung Dishwasher DW80CG4021 | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Energy Star Dishwasher with Hidden Controls |
| Model # | DW80CG4021 |
| Size | 23-7/8”W x 35”H x 24-3/4”D |
| Color/Finish | Stainless |
| Notes | Top Controls Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $$ |
| Product Type | NOVEL |
| Insinkerator Disposal 1/2 hp | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Insinkerator |
| Description | Disposal |
| Model # | Badger 5 Standard |
| Size | hp |
| Color/Finish | |
| Notes | Provide with power cord |
| Price Point | |
| Product Type | |
| Samsung White Front Load Dryer DVE45T6000W | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 7.5 cu. ft. Dryer |
| Model # | DVE45T6000W |
| Size | 27”W x 38-3/4”H x 31-1/2”D |
| Color/Finish | White |
| Notes | Front-load |
| Price Point | |
| Product Type | |
| Samsung White Front load Washer WF45T6000AW | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 4.5 cu. ft. Washer |
| Model # | WF45T6000AW |
| Size | 27”W x 38-3/4”H x 31-3/8”D |
| Color/Finish | White |
| Notes | Front-load with stacking kit as needed, Energy Star |
| Price Point | |
| Product Type | |
| ADA Samsung Stainless Under Cabinet Range Hood NK30A3300 | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Under Cabinet Range Hood with LED Lighting |
| Model # | NK30A3300 |
| Size | 30”W x 9-3/4” H x 19-3/4” D |
| Color/Finish | Stainless |
| Notes | 350 CFM. Provide low switch control or remote for accessibility requirements |
| Price Point | |
| Product Type | |
Bath Accessories
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Bathroom | Pamex | Surface Paper Holder | BC14-42 | 7-3/8” x 1-3/4” | Matte Black |
|
|||
| Bathroom | Pamex | Single Robe Hook | BC14-21 | 2” x 2” Diameter | Matte Black | See Architectural Unit Plans for Quantity | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Pamex | Towel Bar Set | BC14-15824 | 25-3/4" x 2-1/8" | Matte Black | See Architectural Unit Plans for Quantity |
|
||
| Bathroom | Southeastern Aluminum Products | Frameless Shower Enclosure | Signature Pivot Series | 78" tall & shower width shown in drawings | Matte Black | Frameless doors with clear glass. Include at all Studios, Master of all 2-Beds, and half of JR 1-Beds. Total of 119 |
|
||
| Bathroom | Majestic Mirror | Backlit LED Mirror | Strand | Mirror sized per drawings | Separate mirrors for each sink (one for single sink, two for double sink) |
|
|||
| Bathroom | Pamex | Curved Shower Rod | BSR-573/673 | 60” | Matte Black | Only in Tub/shower combo locations |
|
| Toilet Paper Holder Pamex BC14-42 Matte Black | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Surface Paper Holder |
| Model # | BC14-42 |
| Size | 7-3/8” x 1-3/4” |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | |
| Product Type | |
| Bathroom Robe Hook Pamex BC14-21 Matte Black | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Single Robe Hook |
| Model # | BC14-21 |
| Size | 2” x 2” Diameter |
| Color/Finish | Matte Black |
| Notes | See Architectural Unit Plans for Quantity |
| Price Point | |
| Product Type | NOVEL, RENDER, HARMON |
| Towel Bar Pamex BC14-15824 Matte Black | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Towel Bar Set |
| Model # | BC14-15824 |
| Size | 25-3/4" x 2-1/8" |
| Color/Finish | Matte Black |
| Notes | See Architectural Unit Plans for Quantity |
| Price Point | |
| Product Type | |

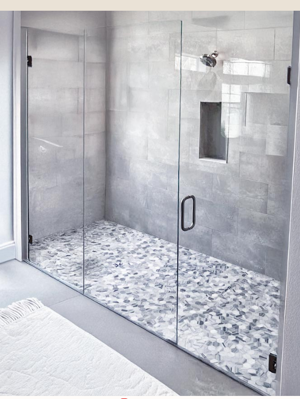

| Swing Shower Door Southeastern Aluminum 78" Tall Matte Black | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Southeastern Aluminum Products |
| Description | Frameless Shower Enclosure |
| Model # | Signature Pivot Series |
| Size | 78" tall & shower width shown in drawings |
| Color/Finish | Matte Black |
| Notes | Frameless doors with clear glass. Include at all Studios, Master of all 2-Beds, and half of JR 1-Beds. Total of 119 |
| Price Point | |
| Product Type | |
| Vanity Mirror Majestic Mirror Blacklit LED Mirror Strand | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Majestic Mirror |
| Description | Backlit LED Mirror |
| Model # | Strand |
| Size | Mirror sized per drawings |
| Color/Finish | |
| Notes | Separate mirrors for each sink (one for single sink, two for double sink) |
| Price Point | |
| Product Type | |
| Shower Rod Pamex BSR-573/673 Curved Matte Black | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Curved Shower Rod |
| Model # | BSR-573/673 |
| Size | 60” |
| Color/Finish | Matte Black |
| Notes | Only in Tub/shower combo locations |
| Price Point | |
| Product Type | |
Cabinets & Countertops
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Bathroom | Leedo | Lugano, Stained or Painted for wood look. Frameless | 34" high vanities | White Tusk | Full-overlay, frameless, Drawers to be wood boxes and have full extension, soft-close slides. Doors to be provided with soft-close hinges. |
|
|||
| Kitchen | Rev-A-Shelf | Top Mount Double Trash Pullout | RV-53TM1850GSCDM2-FL | Double 50 QT cans | Grey | Trash pull-outs require full extension soft-close slides and dual canister. |
|
||
| Kitchen | Rev-A-Shelf | Top Mount Double Trash Pullout | RV-53TM1835GSCDM2-FL | Double 35 QT cans | Grey | Trash pull-outs require full extension soft-close slides and dual canister. |
|
||
| Units | Richelieu | Pull spec - drawer | BP10746900 | Matte Black | Bar Pull |
|
|||
| Kitchen | Silestone by Cosentino | Quartz | Pencil Edge | 3cm | Et Calacatta Gold |
|
|||
| Bathroom | Kohler | Square Undermount Sink | K-2214-0 | 20" x 15"x7.5” | White | Drain and trim to match plumbing fixture finish. |
|
||
| Kitchen | Amerisink | Kitchen Sink – Undermount | AS1526 | 31.25”x18”x5.5” | Stainless | Squared edges oversize/ADA depth single bowl. |
|
||
| Kitchen | Amerisink | Kitchen Sink - Undermount | AS152 | 32"x19"x9" depth | Stainless | Squared edges oversize/depth single bowl |
|
||
| Kitchen | Leedo | Prato. Painted flat slab, Particle board box. Framless | 42" upper cabinets | Graphite | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. Doors to be provided with soft-close hinges. Open Shelving Above Kitchen Sinks (See Architectural Plans) |
|
|||
| Bathroom | Silestone by Cosentino | Quartz | Pencil Edge | 2cm | Grey Expo |
|
| Bathroom Vanity Leedo 34" High Vanities White Tusk | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Leedo |
| Description | Lugano, Stained or Painted for wood look. Frameless |
| Model # | |
| Size | 34" high vanities |
| Color/Finish | White Tusk |
| Notes | Full-overlay, frameless, Drawers to be wood boxes and have full extension, soft-close slides. Doors to be provided with soft-close hinges. |
| Price Point | |
| Product Type | |
| Trash Pullout Double 50QT Rev-A-Shelf RV-53TM1850GSCDM2-FL | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Rev-A-Shelf |
| Description | Top Mount Double Trash Pullout |
| Model # | RV-53TM1850GSCDM2-FL |
| Size | Double 50 QT cans |
| Color/Finish | Grey |
| Notes | Trash pull-outs require full extension soft-close slides and dual canister. |
| Price Point | |
| Product Type | |
| Trash Pullout Double 35QT Rev-A-Shelf RV-53TM1835GSCDM2-FL | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Rev-A-Shelf |
| Description | Top Mount Double Trash Pullout |
| Model # | RV-53TM1835GSCDM2-FL |
| Size | Double 35 QT cans |
| Color/Finish | Grey |
| Notes | Trash pull-outs require full extension soft-close slides and dual canister. |
| Price Point | |
| Product Type | |
| Cabinet Hardware Richelieu Drawer Pull Bar Matte Black | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Richelieu |
| Description | Pull spec - drawer |
| Model # | BP10746900 |
| Size | |
| Color/Finish | Matte Black |
| Notes | Bar Pull |
| Price Point | |
| Product Type | |
| Kitchen Countertops Silestone by Cosentino 3cm Et Calacatta Gold | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Silestone by Cosentino |
| Description | Quartz |
| Model # | Pencil Edge |
| Size | 3cm |
| Color/Finish | Et Calacatta Gold |
| Notes | |
| Price Point | |
| Product Type | |
| Vanity Sink Kohler K-2214-0 White | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Kohler |
| Description | Square Undermount Sink |
| Model # | K-2214-0 |
| Size | 20" x 15"x7.5” |
| Color/Finish | White |
| Notes | Drain and trim to match plumbing fixture finish. |
| Price Point | |
| Product Type | |
| Kitchen Sink (ADA) Amerisink AS1526 Stainless | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Amerisink |
| Description | Kitchen Sink – Undermount |
| Model # | AS1526 |
| Size | 31.25”x18”x5.5” |
| Color/Finish | Stainless |
| Notes | Squared edges oversize/ADA depth single bowl. |
| Price Point | |
| Product Type | |
| Kitchen Sink Amerisink AS152 Stainless | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Amerisink |
| Description | Kitchen Sink - Undermount |
| Model # | AS152 |
| Size | 32"x19"x9" depth |
| Color/Finish | Stainless |
| Notes | Squared edges oversize/depth single bowl |
| Price Point | |
| Product Type | |
| Kitchen & Island Leedo 42" Graphite Cabinets | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Leedo |
| Description | Prato. Painted flat slab, Particle board box. Framless |
| Model # | |
| Size | 42" upper cabinets |
| Color/Finish | Graphite |
| Notes | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. Doors to be provided with soft-close hinges. Open Shelving Above Kitchen Sinks (See Architectural Plans) |
| Price Point | |
| Product Type | |
| Vanity Countertops Silestone 2cm Grey Expo | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Silestone by Cosentino |
| Description | Quartz |
| Model # | Pencil Edge |
| Size | 2cm |
| Color/Finish | Grey Expo |
| Notes | |
| Price Point | |
| Product Type | |
Doors & Hardware
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Units | Masonite | Single Panel, Craftsman / Square Profile, Solid Core | Lincoln Park | 7' | Primed MDF |
|
|||
| Unit Entry Door | Masonite | Single Panel, Craftsman / Square Profile, Solid Core | Lincoln Park Series | 8' | Primed MDF |
|
|||
| Patio | Intus | High Performance Vinyl Patio Door | 7' | Smooth Door, Clear Glass | Tempered Glass if Required by code |
|
|||
| Units | Masonite | Flush Panel, Hollow Core | Flush Panel | 7' | Primed MDF | Provide as prehung door with finger-jointed pine jamb material and prehung casing WM412. |
|
||
| Unit Interior | Masonite | Single Panel, Craftsman / Square Profile, Hollow Core | Lincoln Park | 7' | Primed MDF | Provide as prehung door with finger-jointed pine jamb material and prehung casing WM412. |
|
||
| Unit Interior | Masonite | 2-Panel, Craftsman / Square Profile, Hollow Core | Logan, Heritage Series | 7' | Primed MDF | Provide as prehung door with finger-jointed pine jamb material and prehung casing WM412. |
|
||
| Unit Entries | Schlage Control | Smart Lock with Addison trim | BE467 | Matte Black | Unit entry doors. Provide with Stratis software package. | NOVEL |
|
||
| Unit Entries | Deltana | Standard Steel Hinge | S44U1B-R | 4x4 | All hinges to match door hardware (Do Not Paint) – Matte Black |
|
|||
| Unit Entries | Deltana | Standard HD Spring Hinge | DSH44U1B | 4x4 | All hinges to match door hardware (Do Not Paint) – Matte Black | Hinge must be UL Rated Heavy Duty hinge for rated openings |
|
||
| Units | Sliding Door Company | Framed glass panel barn doors Provide square designer handle in matte black with lockset. Rails finish to match door hardware. | Modern glass sliding barn doors with matte black hardware. | Size per drawings | Frame color to match bedroom doors. Glass panels to be tempered and frosted. | Modern glass sliding barn doors with matte black hardware. |
|
||
| Patio | Taymor | Vega Square Rose Lever | Lever (30-D0067X4BLK), model number dependent on function | Matte Black | Keyed Lock on Basement/1st Floor Only & No Lock on all Upper Floors |
|
|||
| Unit Doors Interior | Taymor | Vega Square Rose Lever | Lever (30-D0067X4BLK), model number dependent on function. | Matte Black | Privacy Locks on Bathroom & Bedroom Doors |
|
|||
| Unit Interior | Ives | Spring Door Stop | 63FLBK | 3" | Matte Black | Provide at wall base where space available |
|
||
| Unit Doors Interior | Door Saver | Hinge Pin Stop | DoorSaver3 | Matte Black | Provide at doors where base door stop cannot be provided. |
|
|||
| Unit Interior | Pamex | Single Robe Hook | BC14-21 | 2” x 2” Diameter | Matte Black | See Architectural Unit Plans for Quantity |
|
| Unit Entry Door Masonite Lincoln Park 7' | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Masonite |
| Description | Single Panel, Craftsman / Square Profile, Solid Core |
| Model # | Lincoln Park |
| Size | 7' |
| Color/Finish | Primed MDF |
| Notes | |
| Price Point | |
| Product Type | |
| Unit Entry Door Masonite Lincoln Park 8' | |
|---|---|
|
|
| Location | Unit Entry Door |
| Manufacturer | Masonite |
| Description | Single Panel, Craftsman / Square Profile, Solid Core |
| Model # | Lincoln Park Series |
| Size | 8' |
| Color/Finish | Primed MDF |
| Notes | |
| Price Point | |
| Product Type | |
| Patio Door Intus 7' | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | Intus |
| Description | High Performance Vinyl Patio Door |
| Model # | |
| Size | 7' |
| Color/Finish | Smooth Door, Clear Glass |
| Notes | Tempered Glass if Required by code |
| Price Point | |
| Product Type | |
| Unit Interior Door Masonite Flush Panel 7' | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Masonite |
| Description | Flush Panel, Hollow Core |
| Model # | Flush Panel |
| Size | 7' |
| Color/Finish | Primed MDF |
| Notes | Provide as prehung door with finger-jointed pine jamb material and prehung casing WM412. |
| Price Point | |
| Product Type | |
| Unit Interior Door Masonite Lincoln Park 7' | |
|---|---|
|
|
| Location | Unit Interior |
| Manufacturer | Masonite |
| Description | Single Panel, Craftsman / Square Profile, Hollow Core |
| Model # | Lincoln Park |
| Size | 7' |
| Color/Finish | Primed MDF |
| Notes | Provide as prehung door with finger-jointed pine jamb material and prehung casing WM412. |
| Price Point | |
| Product Type | |
| Unit Interior Door Masonite Logan Heritage 7' | |
|---|---|
|
|
| Location | Unit Interior |
| Manufacturer | Masonite |
| Description | 2-Panel, Craftsman / Square Profile, Hollow Core |
| Model # | Logan, Heritage Series |
| Size | 7' |
| Color/Finish | Primed MDF |
| Notes | Provide as prehung door with finger-jointed pine jamb material and prehung casing WM412. |
| Price Point | |
| Product Type | |
| Electronic Deadbolt Unit Entries Schlage BE47 Matte Black | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Schlage Control |
| Description | Smart Lock with Addison trim |
| Model # | BE467 |
| Size | |
| Color/Finish | Matte Black |
| Notes | Unit entry doors. Provide with Stratis software package. |
| Price Point | |
| Product Type | NOVEL |
| Unit Entry Door Standard Hinge Deltana 4x4 S44U1B-R | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Deltana |
| Description | Standard Steel Hinge |
| Model # | S44U1B-R |
| Size | 4x4 |
| Color/Finish | All hinges to match door hardware (Do Not Paint) – Matte Black |
| Notes | |
| Price Point | |
| Product Type | |
| Unit Entry Door Spring Hinges Deltana 4x4 DSH44U1B | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Deltana |
| Description | Standard HD Spring Hinge |
| Model # | DSH44U1B |
| Size | 4x4 |
| Color/Finish | All hinges to match door hardware (Do Not Paint) – Matte Black |
| Notes | Hinge must be UL Rated Heavy Duty hinge for rated openings |
| Price Point | |
| Product Type | |
| Unit Barn Doors Sliding Door Company | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Sliding Door Company |
| Description | Framed glass panel barn doors Provide square designer handle in matte black with lockset. Rails finish to match door hardware. |
| Model # | Modern glass sliding barn doors with matte black hardware. |
| Size | Size per drawings |
| Color/Finish | Frame color to match bedroom doors. Glass panels to be tempered and frosted. |
| Notes | Modern glass sliding barn doors with matte black hardware. |
| Price Point | |
| Product Type | |
| Patio Door Hardware Taymor 30-D0067X4BLK Matte Black Handle | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | Taymor |
| Description | Vega Square Rose Lever |
| Model # | Lever (30-D0067X4BLK), model number dependent on function |
| Size | |
| Color/Finish | Matte Black |
| Notes | Keyed Lock on Basement/1st Floor Only & No Lock on all Upper Floors |
| Price Point | |
| Product Type | |
| Unit Interior Door Hardware Taymor Matte Black | |
|---|---|
|
|
| Location | Unit Doors Interior |
| Manufacturer | Taymor |
| Description | Vega Square Rose Lever |
| Model # | Lever (30-D0067X4BLK), model number dependent on function. |
| Size | |
| Color/Finish | Matte Black |
| Notes | Privacy Locks on Bathroom & Bedroom Doors |
| Price Point | |
| Product Type | |
| Unit Interior Door Hardware Ives Spring Door Stop Matte Black | |
|---|---|
|
|
| Location | Unit Interior |
| Manufacturer | Ives |
| Description | Spring Door Stop |
| Model # | 63FLBK |
| Size | 3" |
| Color/Finish | Matte Black |
| Notes | Provide at wall base where space available |
| Price Point | |
| Product Type | |
| Unit Interior Door Hardware Door Saver Hinge Pin Stop Matte Black | |
|---|---|
|
|
| Location | Unit Doors Interior |
| Manufacturer | Door Saver |
| Description | Hinge Pin Stop |
| Model # | DoorSaver3 |
| Size | |
| Color/Finish | Matte Black |
| Notes | Provide at doors where base door stop cannot be provided. |
| Price Point | |
| Product Type | |
| Entry Bench Hooks Pamex BC14-21 Matte Black | |
|---|---|
|
|
| Location | Unit Interior |
| Manufacturer | Pamex |
| Description | Single Robe Hook |
| Model # | BC14-21 |
| Size | 2” x 2” Diameter |
| Color/Finish | Matte Black |
| Notes | See Architectural Unit Plans for Quantity |
| Price Point | |
| Product Type | |
Flooring & Hard Surfaces
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Emser | Glazed Ceramic Wall Tile | F50FLEXWH0206SBP | 2” x 6” | Flex White | Horizontal, Brick Pattern, with 1/16" joints - Grout: Laticrete - Color TBD. Seal grout joints |
|
||
| Bathroom | Emser | Glazed Ceramic Wall Tile | F50FLEXWH0606P | 6” x 6” | Flex White | Horizontal, Brick Pattern, with 1/16" joints - Grout: Laticrete - Color TBD. Seal grout joints |
|
||
| Bathroom | Emser | Glazed Ceramic Wall Tile | F50FLEXGR0306P | 3” x 6” | Flex Grey | Vertical, Stack Pattern, with 1/16" joints - Grout: Laticrete - Color TBD. Seal grout joints |
|
||
| Bathroom | Schluter | Wall Niche | KB12SN305305A | 12”x12” |
|
||||
| Unit Interior | Shaw Contract Group | Ancestry - 12 Mil LVP | 0517V/20MIL 0564V | 6" x 48" | Bleached Oak (00140) |
|
|||
| Bathroom | Emser | Cosmopolitan | F02COSMST1224 | 12”x24” |
|
||||
| Bathroom | Emser | Influence Penny Tile | W95INFLWH1112MOP | 11”x12” Mosaic | White |
|
|||
| Unit Entries | Daltile | Double Hollywood Bevel | G771 | 4" | Absolute Black | Polished Granite |
|
| Kitchen Backsplash Emser Ceramic Wall Tile Flex White | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Emser |
| Description | Glazed Ceramic Wall Tile |
| Model # | F50FLEXWH0206SBP |
| Size | 2” x 6” |
| Color/Finish | Flex White |
| Notes | Horizontal, Brick Pattern, with 1/16" joints - Grout: Laticrete - Color TBD. Seal grout joints |
| Price Point | |
| Product Type | |
| Tub/Shower Combo Surround F50FLEXWH0606P Ceramic Wall Tile Flex White | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Emser |
| Description | Glazed Ceramic Wall Tile |
| Model # | F50FLEXWH0606P |
| Size | 6” x 6” |
| Color/Finish | Flex White |
| Notes | Horizontal, Brick Pattern, with 1/16" joints - Grout: Laticrete - Color TBD. Seal grout joints |
| Price Point | |
| Product Type | |
| Tub/Shower Combo Surround Emser F50FLEXGR0306P Ceramic Wall Tile Flex Grey | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Emser |
| Description | Glazed Ceramic Wall Tile |
| Model # | F50FLEXGR0306P |
| Size | 3” x 6” |
| Color/Finish | Flex Grey |
| Notes | Vertical, Stack Pattern, with 1/16" joints - Grout: Laticrete - Color TBD. Seal grout joints |
| Price Point | |
| Product Type | |
| Tub/Shower Niche Schluter KB12SN305305A | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Schluter |
| Description | Wall Niche |
| Model # | KB12SN305305A |
| Size | 12”x12” |
| Color/Finish | |
| Notes | |
| Price Point | |
| Product Type | |
| Unit Flooring Shaw Bleached Oak 0517V/20MIL 0564V | |
|---|---|
|
|
| Location | Unit Interior |
| Manufacturer | Shaw Contract Group |
| Description | Ancestry - 12 Mil LVP |
| Model # | 0517V/20MIL 0564V |
| Size | 6" x 48" |
| Color/Finish | Bleached Oak (00140) |
| Notes | |
| Price Point | |
| Product Type | |
| Bathroom Flooring Emser F02COSMST1224 | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Emser |
| Description | Cosmopolitan |
| Model # | F02COSMST1224 |
| Size | 12”x24” |
| Color/Finish | |
| Notes | |
| Price Point | |
| Product Type | |
| Shower Flooring Emser White W95INFLWH1112MOP | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Emser |
| Description | Influence Penny Tile |
| Model # | W95INFLWH1112MOP |
| Size | 11”x12” Mosaic |
| Color/Finish | White |
| Notes | |
| Price Point | |
| Product Type | |
| Unit Entry Threshold Daltile 4" Absolute Black | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Daltile |
| Description | Double Hollywood Bevel |
| Model # | G771 |
| Size | 4" |
| Color/Finish | Absolute Black |
| Notes | Polished Granite |
| Price Point | |
| Product Type | |
Interior Paint Colors
| Location | Manufacturer | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|
| Walls | Sherwin Williams | SW 7028 - Incredible White - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use PE20 Series Eggshell Latex in Unit Bathrooms. |
|
|||
| Ceilings | Sherwin Williams | SW Pure White - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use PE20 Series Eggshell Latex in Unit Bathrooms. | Flat paint except in bathrooms (eggshell) Holt Faucette holt.faucette@sherwin.com (407) 448-2359 |
|
||
| Unit Trim | Sherwin Williams | SW Pure White - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE31 Series Semi-Gloss. |
|
|||
| Patio Door Exterior | Sherwin Williams | Primer - All Surface Enamel Interior/Exterior Latex Primer A41W01210 (dried to 1.5 mils thickness min.). Finish – Pro Industrial Multi-Surface Acrylic B-66-1550 Series (dried to 1.5 mils thickness min.) | Semi-gloss paint for patio door. See Arch. Drawings for color. |
|
||
| Corridor Walls (BASE) | Sherwin Williams | 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. |
|
|||
| Corridor Walls (ACCENT) | Sherwin Williams | 1 coat ProMar 200 Latex primer B28W02600, 2 coats Painters Edge PE30 Series Flat latex |
|
|||
| Corridor Trim (BASE) | Sherwin Williams | 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600 |
|
|||
| Corridor Trim (ACCENT) | Sherwin Williams | 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600 |
|
|||
| Building Doors & Trim | Sherwin Williams | 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600 | NOVEL |
|
||
| Mechanical Rooms Walls & Ceilings | Sherwin Williams | 1 coat Painters Edge latex PE30 Series Primer, 1 coat Painters Edge PE20 Series Eggshell Latex. 1 Coat Painters Edge PE30 Series Flat Latex (ceilings). |
|
|||
| Storage Room Walls & Ceilings | Sherwin Williams | 1 coat painters Edge latex PE30 Series Primer. Use 1 coat PE20 Series Eggshell Latex on walls & ceilings | Flat (ceilings)/Eggshell (walls). See Arch/ID Drawings for color(s). Holt Faucette holt.faucette@sherwin.com (407) 448-2359 |
|
||
| Stair Wells Walls & Ceilings | Sherwin Williams | 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex (ceilings). Use 1 coat PE20 Series Eggshell Latex on walls | Flat (ceilings)/Eggshell (walls). |
|
||
| Stair Rail/Stringers | Sherwin Williams | SW 7675 - Sealskin - 1 coat All Surface Enamel Latex Primer A41W01210 , 2 coats ProMar 200 Latex Semi-gloss Enamel B31-2600 . | Semi-gloss See Arch/ID Drawings for color(s) Holt Faucette holt.faucette@sherwin.com (407) 448-2359 |
|
| Walls Sherwin Williams SW 7028 - Incredible White | |
|---|---|
|
|
|
| Location | Walls |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW 7028 - Incredible White - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use PE20 Series Eggshell Latex in Unit Bathrooms. |
| Notes | |
| Price Point | |
| Product Type | |
| Ceilings Sherwin Williams SW Pure White | |
|---|---|
|
|
| Location | Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW Pure White - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use PE20 Series Eggshell Latex in Unit Bathrooms. |
| Notes | Flat paint except in bathrooms (eggshell) Holt Faucette holt.faucette@sherwin.com (407) 448-2359 |
| Price Point | |
| Product Type | |
| Unit Trim Sherwin Williams SW Pure White | |
|---|---|
|
|
| Location | Unit Trim |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW Pure White - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE31 Series Semi-Gloss. |
| Notes | |
| Price Point | |
| Product Type | |
| Patio Door Exterior Sherwin Williams | |
|---|---|
|
|
|
| Location | Patio Door Exterior |
| Manufacturer | Sherwin Williams |
| Color/Finish | Primer - All Surface Enamel Interior/Exterior Latex Primer A41W01210 (dried to 1.5 mils thickness min.). Finish – Pro Industrial Multi-Surface Acrylic B-66-1550 Series (dried to 1.5 mils thickness min.) |
| Notes | Semi-gloss paint for patio door. See Arch. Drawings for color. |
| Price Point | |
| Product Type | |
| Corridor Walls (BASE) Sherwin Williams Painters Edge (1) | |
|---|---|
|
|
|
| Location | Corridor Walls (BASE) |
| Manufacturer | Sherwin Williams |
| Color/Finish | 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. |
| Notes | |
| Price Point | |
| Product Type | |
| Corridor Walls (ACCENT) Sherwin Williams ProMar | |
|---|---|
|
|
|
| Location | Corridor Walls (ACCENT) |
| Manufacturer | Sherwin Williams |
| Color/Finish | 1 coat ProMar 200 Latex primer B28W02600, 2 coats Painters Edge PE30 Series Flat latex |
| Notes | |
| Price Point | |
| Product Type | |
| Corridor Trim (BASE) Sherwin Williams ProMar | |
|---|---|
|
|
|
| Location | Corridor Trim (BASE) |
| Manufacturer | Sherwin Williams |
| Color/Finish | 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600 |
| Notes | |
| Price Point | |
| Product Type | |
| Corridor Trim (ACCENT) Sherwin Williams ProMar | |
|---|---|
|
|
|
| Location | Corridor Trim (ACCENT) |
| Manufacturer | Sherwin Williams |
| Color/Finish | 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600 |
| Notes | |
| Price Point | |
| Product Type | |
| Building Doors & Trim Sherwin Williams ProMar | |
|---|---|
|
|
|
| Location | Building Doors & Trim |
| Manufacturer | Sherwin Williams |
| Color/Finish | 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600 |
| Notes | |
| Price Point | |
| Product Type | NOVEL |
| Mechanical Rooms Walls & Ceilings Sherwin Williams Painters Edge | |
|---|---|
|
|
|
| Location | Mechanical Rooms Walls & Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | 1 coat Painters Edge latex PE30 Series Primer, 1 coat Painters Edge PE20 Series Eggshell Latex. 1 Coat Painters Edge PE30 Series Flat Latex (ceilings). |
| Notes | |
| Price Point | |
| Product Type | |
| Storage Room Walls & Ceilings Sherwin Williams Painters Edge | |
|---|---|
|
|
|
| Location | Storage Room Walls & Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | 1 coat painters Edge latex PE30 Series Primer. Use 1 coat PE20 Series Eggshell Latex on walls & ceilings |
| Notes | Flat (ceilings)/Eggshell (walls). See Arch/ID Drawings for color(s). Holt Faucette holt.faucette@sherwin.com (407) 448-2359 |
| Price Point | |
| Product Type | |
| Stair Wells Walls & Ceilings Sherwin Williams Painters Edge | |
|---|---|
|
|
|
| Location | Stair Wells Walls & Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex (ceilings). Use 1 coat PE20 Series Eggshell Latex on walls |
| Notes | Flat (ceilings)/Eggshell (walls). |
| Price Point | |
| Product Type | |
| Stair Rail/Stringers Sherwin Williams SW 7675 Sealskin | |
|---|---|
|
|
|
| Location | Stair Rail/Stringers |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW 7675 - Sealskin - 1 coat All Surface Enamel Latex Primer A41W01210 , 2 coats ProMar 200 Latex Semi-gloss Enamel B31-2600 . |
| Notes | Semi-gloss See Arch/ID Drawings for color(s) Holt Faucette holt.faucette@sherwin.com (407) 448-2359 |
| Price Point | |
| Product Type | |
Lighting Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Living Room | Juno | 27K Flush Mount | JSF 11IN 13LM 27K 90CRI 120FPRC WH | 11" | White | Wire to LED-compatible switch. |
|
||
| Kitchen/pantry | Juno | 5” 27K LED Flush mount | JSF 5IN 07LM 27K 90CRI 120FPRC WH | 5" | White | Wire to LED-compatible switch. |
|
||
| Entry/Closet/Laundry/Bathroom | Juno | 7” 27K LED Flush mount | JSF 7IN 10LM 27K 90CRI 120FPRC WH | 7" | White | Wire to LED-compatible switch |
|
||
| Units | Leviton | Decora Plus | T5833-W (Type A and C Charger) | White | Locations as shown in plans |
|
|||
| Island Pendants | Pottery Barn (or equal) | Single Light Pendant | Dorland Glass Globe Pendant | 10”W x HGT TBD | Round, Black Exterior Finish Frosted Shade | See Plans for Locations. Centered over island. Provide with LED Bulb and ensure light/ switch are dimmable. |
|
||
| Units | Daikin | Madoka Remote Controller | BRC1H71W | White |
|
||||
| Units | Leviton | Decora Plus | R72-05601-2WS | White | 1 dimmer switch per unit (kitchen Pendants) |
|
|||
| Units | Leviton | Decora Plus | R62-16252-0WS | White |
|
||||
| Patio | Maxim Lighting | 86401BK | 4”x6.25”x 7.25” | Sconce, Architectural Black Finish | Wet Label / Rated in Balcony Areas |
|
| Juno 11" 27K Flush Mount White | |
|---|---|
|
|
| Location | Living Room |
| Manufacturer | Juno |
| Description | 27K Flush Mount |
| Model # | JSF 11IN 13LM 27K 90CRI 120FPRC WH |
| Size | 11" |
| Color/Finish | White |
| Notes | Wire to LED-compatible switch. |
| Price Point | |
| Product Type | |
| Juno 5" 27k LED Flush mount White | |
|---|---|
|
|
| Location | Kitchen/pantry |
| Manufacturer | Juno |
| Description | 5” 27K LED Flush mount |
| Model # | JSF 5IN 07LM 27K 90CRI 120FPRC WH |
| Size | 5" |
| Color/Finish | White |
| Notes | Wire to LED-compatible switch. |
| Price Point | |
| Product Type | |
| Juno 7" 27K LED Flsuh Mount White | |
|---|---|
|
|
| Location | Entry/Closet/Laundry/Bathroom |
| Manufacturer | Juno |
| Description | 7” 27K LED Flush mount |
| Model # | JSF 7IN 10LM 27K 90CRI 120FPRC WH |
| Size | 7" |
| Color/Finish | White |
| Notes | Wire to LED-compatible switch |
| Price Point | |
| Product Type | |
| Leviton USB Outlets White | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Decora Plus |
| Model # | T5833-W (Type A and C Charger) |
| Size | |
| Color/Finish | White |
| Notes | Locations as shown in plans |
| Price Point | |
| Product Type | |
| Island Pendant Pottery Barn Dorland Glass Globe | |
|---|---|
|
|
| Location | Island Pendants |
| Manufacturer | Pottery Barn (or equal) |
| Description | Single Light Pendant |
| Model # | Dorland Glass Globe Pendant |
| Size | 10”W x HGT TBD |
| Color/Finish | Round, Black Exterior Finish Frosted Shade |
| Notes | See Plans for Locations. Centered over island. Provide with LED Bulb and ensure light/ switch are dimmable. |
| Price Point | |
| Product Type | |
| Daikin Thermostat White BRC1H71W | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Daikin |
| Description | Madoka Remote Controller |
| Model # | BRC1H71W |
| Size | |
| Color/Finish | White |
| Notes | |
| Price Point | |
| Product Type | |
| Light Switches Leviton White R72-05601-2WS | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Decora Plus |
| Model # | R72-05601-2WS |
| Size | |
| Color/Finish | White |
| Notes | 1 dimmer switch per unit (kitchen Pendants) |
| Price Point | |
| Product Type | |
| Leviton White Outlet R62-16252-0WS | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Decora Plus |
| Model # | R62-16252-0WS |
| Size | |
| Color/Finish | White |
| Notes | |
| Price Point | |
| Product Type | |
| Maxim Lighting 7.25" LED Wall Mount Black | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | Maxim Lighting |
| Description | |
| Model # | 86401BK |
| Size | 4”x6.25”x 7.25” |
| Color/Finish | Sconce, Architectural Black Finish |
| Notes | Wet Label / Rated in Balcony Areas |
| Price Point | |
| Product Type | |
Moulding Trimwork
| Location | Manufacturer | Description | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|
| Units | 1" x 4" | FJP - Contemporary square profile. | NOVEL, RENDER, HARMON |
|
||||
| Units | Door Trim | 1"x 4" sides, 1"x 6" header | FJP - Contemporary square profile. Header flush with casings. No extensions provided. |
|
||||
| Units | Lattice Door Stop: Match trim color, Except in Kitchen and Bath at Cabinets: Color match to lower cabinets/toe kick | ½” x 1-1/2” | Applied at floor base throughout unit. Do not install at Sliding Door Clear Areas (i.e. width of door track) |
|
||||
| Unit Islands | Trim under Counter | ¼” x 1-5/16” | Applied under countertops to cover gap between drywall and countertop |
|
||||
| Units | Window Apron & Stool | 4" apron 6” stool | FJP - Contemporary square profile |
|
||||
| Unit Islands | Unit Island Wood Post | 3x3 | Painted to match cabinets | Flooring to extend underneath island post. Perimeter of island posts to be wrapped with shoe mold after post is leveled. |
|
|||
| Closets | Organized Living | Closet Shelving | Per Drawings | Chrome Rod/White Bracing with White Shelves | Size/quantity per drawings. Provide two shelves on long walls and single shelf on short wall. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 |
|
| Base Board 1" x 4" Paint Grade Pine | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | |
| Size | 1" x 4" |
| Color/Finish | |
| Notes | FJP - Contemporary square profile. |
| Price Point | |
| Product Type | NOVEL, RENDER, HARMON |
| Door Trim 1"x4", 1"x6" Paint Grade Pine | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Door Trim |
| Size | 1"x 4" sides, 1"x 6" header |
| Color/Finish | |
| Notes | FJP - Contemporary square profile. Header flush with casings. No extensions provided. |
| Price Point | |
| Product Type | |
| Lattice Door Stop 1/2" x 1-1/2" Paint Grade Wood | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Lattice Door Stop: Match trim color, Except in Kitchen and Bath at Cabinets: Color match to lower cabinets/toe kick |
| Size | ½” x 1-1/2” |
| Color/Finish | |
| Notes | Applied at floor base throughout unit. Do not install at Sliding Door Clear Areas (i.e. width of door track) |
| Price Point | |
| Product Type | |
| Trim Under Counter 1/4" x 1-5/16" Paint Grade Pine | |
|---|---|
|
|
| Location | Unit Islands |
| Manufacturer | |
| Description | Trim under Counter |
| Size | ¼” x 1-5/16” |
| Color/Finish | |
| Notes | Applied under countertops to cover gap between drywall and countertop |
| Price Point | |
| Product Type | |
| Window Apron & Stool 4", 6" Paint Grade Pine | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Window Apron & Stool |
| Size | 4" apron 6” stool |
| Color/Finish | |
| Notes | FJP - Contemporary square profile |
| Price Point | |
| Product Type | |
| Unit Island Wood Post 3x3 Paint Grade Wood | |
|---|---|
|
|
| Location | Unit Islands |
| Manufacturer | |
| Description | Unit Island Wood Post |
| Size | 3x3 |
| Color/Finish | Painted to match cabinets |
| Notes | Flooring to extend underneath island post. Perimeter of island posts to be wrapped with shoe mold after post is leveled. |
| Price Point | |
| Product Type | |
| Closet Organizer Organized Living | |
|---|---|
|
|
| Location | Closets |
| Manufacturer | Organized Living |
| Description | Closet Shelving |
| Size | Per Drawings |
| Color/Finish | Chrome Rod/White Bracing with White Shelves |
| Notes | Size/quantity per drawings. Provide two shelves on long walls and single shelf on short wall. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 |
| Price Point | |
| Product Type | |
Plumbing Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Kohler | Purist Kitchen Faucet | K-24982-BL | Matte Black | 1.5 GPM Flow Rate. Single hold with pull down spray. |
|
|||
| Kitchen | Peerless | Precept Kitchen Faucet | P7948LF-BL | Matte Black | 1.5 GPM Flow Rate. Single hold with pull down spray. |
|
|||
| Bathroom | Kohler | Honesty Single Hole Single-Handle Bathroom Faucet | K-99760-4N-BL | Matte Black | 0.5 GPM Flow Rate. Single Hole |
|
|||
| Bathroom | Delta | Modern Bath Faucet | 581LF-BLHGM-PP | Matte Black | 0.5 GPM Flow Rate. Single Hole |
|
|||
| Shower Only Trim | Pitch Shower Only Trim | TLS97077-4-BL | Matte Black | 1-Handle, Shower Only |
|
||||
| Shower Only Trim | Delta | Ara Shower Valve and Trim | T14267-BLLHD | Matte Black | With Model 52283-BL 1.75 GPM shower head on RP46870BL 16” shower arm |
|
|||
| Tub & Shower Combo Trim | Kohler | Pitch Tub & Shower Trim | TLS97074-4-BL | Matte Black | 1-Handle, Tub & Shower Combo |
|
|||
| Tub & Shower Combo Trim | Delta | Ara Tub - Shower Valve and Trim | T14467-BL | Matte Black | With Model 52283-BL 1.75 GPM shower head |
|
|||
| Bath/Shower Valves | Delta | Universal Mixing Valve | R10000-UNWS |
|
|||||
| Bath/Shower Valves | Kohler | Rite-Temp Valve Body | P8304-PX-NA |
|
|||||
| ADA Shower | Kohler | Hydro-Rail | K-45210-BL | Matte Black | Provide with Parellel Raincan Showerhead and Awaken Handheld Showerhead |
|
|||
| ADA Shower | Delta | Diverter | T11859-BL | Matte Black |
|
||||
| ADA Shower | Delta | Slide Bar | 51600-BL | Matte Black | Provide with Handheld Showerhead |
|
|||
| Shower Head | Delta | Raincan Showerhead (with straight shower arm for stand-alone showers) | 52283 | Matte Black | 1.75 GPM Flow Rate. Square Showerhead |
|
|||
| Shower Head | Kohler | (ARM) Parallel Showerhead with straight shower arm for stand-alone Shower | K-10124-BL | Matte Black | 1.75 GPM Flow Rate. Square Showerhead |
|
|||
| Shower Head | Kohler | (Head) Parallel Showerhead with straight shower arm for stand-alone Shower | 24805-G-BL | Matte Black | 1.75 GPM Flow Rate. Square Showerhead |
|
|||
| Shower Head | Delta | Raincan Showerhead (with straight shower arm for stand-alone showers) | RP46870 shower arm | Matte Black | 1.75 GPM Flow Rate. Square Showerhead |
|
|||
| ADA Hand Held Shower Head | Kohler | Purist Showerhead | K-22166-G-BL | Matte Black | 1.75 GPM Flow Rate. Hand Held Showerhead with pause function |
|
|||
| ADA Hand Held Shower Head | Delta | Active Touch Showerhead | 59424-BL-PK-B1 | Matte Black | 1.75 GPM Flow Rate. Hand Held Showerhead with pause function. | NOVEL, RENDER, HARMON |
|
||
| Tub/Shower | Aquatic | Soaker Fiberglass Tub Unit | 6036SMINM | 60"x36"x21" | White | Provide vinyl quarter round along base of tub. Drain/faceplate to match tub fixture finish. |
|
||
| Toilet | Kohler | 2-piece 1.28 gpf / Include Matching Seat | 402313-0 | 16-1/2" high minus seat | White | Elongated Bowl; Include 20110-0 BreviaT Soft-Close Seat and Lid |
|
||
| Shower Pan | TileRedi | Shower Pan | Per Plans | Fiberglass | Provide vinyl quarter round along base of pan. Drain to match shower fixture finish. |
|
| Kitchen Kohler Faucet K-24982-BL Matte Black | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Kohler |
| Description | Purist Kitchen Faucet |
| Model # | K-24982-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.5 GPM Flow Rate. Single hold with pull down spray. |
| Price Point | |
| Product Type | |
| Kitchen Peerless Faucet P7948LF-BL Matte Black | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Peerless |
| Description | Precept Kitchen Faucet |
| Model # | P7948LF-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.5 GPM Flow Rate. Single hold with pull down spray. |
| Price Point | |
| Product Type | |
| Bathroom Kohler K-99760-4N-BL Matte Black | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Kohler |
| Description | Honesty Single Hole Single-Handle Bathroom Faucet |
| Model # | K-99760-4N-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 0.5 GPM Flow Rate. Single Hole |
| Price Point | |
| Product Type | |
| Bathroom Delta 581LF-BLHGM-PP Matte Black | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Delta |
| Description | Modern Bath Faucet |
| Model # | 581LF-BLHGM-PP |
| Size | |
| Color/Finish | Matte Black |
| Notes | 0.5 GPM Flow Rate. Single Hole |
| Price Point | |
| Product Type | |
| Shower Only Trim Kohler TLS97077-4-BL Matte Black | |
|---|---|
|
|
| Location | Shower Only Trim |
| Manufacturer | |
| Description | Pitch Shower Only Trim |
| Model # | TLS97077-4-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1-Handle, Shower Only |
| Price Point | |
| Product Type | |
| Shower Only Trim Delta T14267-BLLHD Matte Black | |
|---|---|
|
|
| Location | Shower Only Trim |
| Manufacturer | Delta |
| Description | Ara Shower Valve and Trim |
| Model # | T14267-BLLHD |
| Size | |
| Color/Finish | Matte Black |
| Notes | With Model 52283-BL 1.75 GPM shower head on RP46870BL 16” shower arm |
| Price Point | |
| Product Type | |
| Tub & Shower Combo Trim Kohler TLS97074-4-BL Matte Black | |
|---|---|
|
|
| Location | Tub & Shower Combo Trim |
| Manufacturer | Kohler |
| Description | Pitch Tub & Shower Trim |
| Model # | TLS97074-4-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1-Handle, Tub & Shower Combo |
| Price Point | |
| Product Type | |
| Tub & Shower Combo Trim Delta T14467-BL Matte Black | |
|---|---|
|
|
| Location | Tub & Shower Combo Trim |
| Manufacturer | Delta |
| Description | Ara Tub - Shower Valve and Trim |
| Model # | T14467-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | With Model 52283-BL 1.75 GPM shower head |
| Price Point | |
| Product Type | |
| Bath/Shower Valves Delta R10000-UNWS | |
|---|---|
|
|
| Location | Bath/Shower Valves |
| Manufacturer | Delta |
| Description | Universal Mixing Valve |
| Model # | R10000-UNWS |
| Size | |
| Color/Finish | |
| Notes | |
| Price Point | |
| Product Type | |
| Bath/Shower Valves Kohler P8304-PX-NA | |
|---|---|
|
|
| Location | Bath/Shower Valves |
| Manufacturer | Kohler |
| Description | Rite-Temp Valve Body |
| Model # | P8304-PX-NA |
| Size | |
| Color/Finish | |
| Notes | |
| Price Point | |
| Product Type | |
| ADA Shower Kohler K-45210-BL Matte Black | |
|---|---|
|
|
| Location | ADA Shower |
| Manufacturer | Kohler |
| Description | Hydro-Rail |
| Model # | K-45210-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | Provide with Parellel Raincan Showerhead and Awaken Handheld Showerhead |
| Price Point | |
| Product Type | |
| ADA Shower Delta T11859-BL Matte Black | |
|---|---|
|
|
| Location | ADA Shower |
| Manufacturer | Delta |
| Description | Diverter |
| Model # | T11859-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | |
| Product Type | |
| ADA Shower Delta 51600-BL Matte Black | |
|---|---|
|
|
| Location | ADA Shower |
| Manufacturer | Delta |
| Description | Slide Bar |
| Model # | 51600-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | Provide with Handheld Showerhead |
| Price Point | |
| Product Type | |
| Shower Head Delta 52283 Matte Black | |
|---|---|
|
|
| Location | Shower Head |
| Manufacturer | Delta |
| Description | Raincan Showerhead (with straight shower arm for stand-alone showers) |
| Model # | 52283 |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.75 GPM Flow Rate. Square Showerhead |
| Price Point | |
| Product Type | |
| Shower Head (Arm) Kohler K-10124-BL Matte Black | |
|---|---|
|
|
| Location | Shower Head |
| Manufacturer | Kohler |
| Description | (ARM) Parallel Showerhead with straight shower arm for stand-alone Shower |
| Model # | K-10124-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.75 GPM Flow Rate. Square Showerhead |
| Price Point | |
| Product Type | |
| Shower Head (Head) Kohler 24805-G-BL Matte Black | |
|---|---|
|
|
| Location | Shower Head |
| Manufacturer | Kohler |
| Description | (Head) Parallel Showerhead with straight shower arm for stand-alone Shower |
| Model # | 24805-G-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.75 GPM Flow Rate. Square Showerhead |
| Price Point | |
| Product Type | |
| Shower Head Delta RP46870 Matte Black | |
|---|---|
|
|
| Location | Shower Head |
| Manufacturer | Delta |
| Description | Raincan Showerhead (with straight shower arm for stand-alone showers) |
| Model # | RP46870 shower arm |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.75 GPM Flow Rate. Square Showerhead |
| Price Point | |
| Product Type | |
| ADA Hand Held Shower Head Kohler K-22166-G-BL Matte Black | |
|---|---|
|
|
| Location | ADA Hand Held Shower Head |
| Manufacturer | Kohler |
| Description | Purist Showerhead |
| Model # | K-22166-G-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.75 GPM Flow Rate. Hand Held Showerhead with pause function |
| Price Point | |
| Product Type | |
| ADA Hand Held Shower Head Delta 59424-BL-PK-B1 Matte Black | |
|---|---|
|
|
| Location | ADA Hand Held Shower Head |
| Manufacturer | Delta |
| Description | Active Touch Showerhead |
| Model # | 59424-BL-PK-B1 |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.75 GPM Flow Rate. Hand Held Showerhead with pause function. |
| Price Point | |
| Product Type | NOVEL, RENDER, HARMON |
| Tub/Shower Aquatic 6036SMINM White | |
|---|---|
|
|
| Location | Tub/Shower |
| Manufacturer | Aquatic |
| Description | Soaker Fiberglass Tub Unit |
| Model # | 6036SMINM |
| Size | 60"x36"x21" |
| Color/Finish | White |
| Notes | Provide vinyl quarter round along base of tub. Drain/faceplate to match tub fixture finish. |
| Price Point | |
| Product Type | |
| Toilet Kohler 402313-0 White | |
|---|---|
|
|
| Location | Toilet |
| Manufacturer | Kohler |
| Description | 2-piece 1.28 gpf / Include Matching Seat |
| Model # | 402313-0 |
| Size | 16-1/2" high minus seat |
| Color/Finish | White |
| Notes | Elongated Bowl; Include 20110-0 BreviaT Soft-Close Seat and Lid |
| Price Point | |
| Product Type | |
| Shower Pan TileRedi Fiberglass | |
|---|---|
|
|
| Location | Shower Pan |
| Manufacturer | TileRedi |
| Description | Shower Pan |
| Model # | |
| Size | Per Plans |
| Color/Finish | Fiberglass |
| Notes | Provide vinyl quarter round along base of pan. Drain to match shower fixture finish. |
| Price Point | |
| Product Type | |
Window Treatments
| Location | Manufacturer | Description | Model # | Size | Color/Material | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Unit Windows (ALTERNATE) | Hunter Douglas | Roller Shades | Designer Roller Shade | Per Drawings | Match Window Frames | Inside mount - smooth finish, smooth valences included. 1% openness in bedrooms and 5% everywhere else. | NOVEL |
|
|
| Unit Windows | Hunter Douglas | 2" Faux Woods Blind | Everywood | Per Drawings | Match Window Frames | Inside mount - smooth finish - contemporary valence option; Cordless Option | NOVEL, RENDER, HARMON |
|
| Roller Shade Hunter Douglas Designer | |
|---|---|
|
|
| Location | Unit Windows (ALTERNATE) |
| Manufacturer | Hunter Douglas |
| Description | Roller Shades |
| Model # | Designer Roller Shade |
| Size | Per Drawings |
| Color/Material | Match Window Frames |
| Notes | Inside mount - smooth finish, smooth valences included. 1% openness in bedrooms and 5% everywhere else. |
| Price Point | |
| Product Type | NOVEL |
| Blinds Hunter Douglas 2" Everywood | |
|---|---|
|
|
| Location | Unit Windows |
| Manufacturer | Hunter Douglas |
| Description | 2" Faux Woods Blind |
| Model # | Everywood |
| Size | Per Drawings |
| Color/Material | Match Window Frames |
| Notes | Inside mount - smooth finish - contemporary valence option; Cordless Option |
| Price Point | |
| Product Type | NOVEL, RENDER, HARMON |
