Appliances
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Samsung | Energy Star, side-by-side refrigerator | RS27T5201SR | 35-7/8”W x 70-1/16”H x 33-1/2”D | Stainless | Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Insinkerator | Disposal | Badger 5 Standard | 1/2 HP | Provide with power cord | $ | NOVEL |
|
|
| Kitchen | Samsung | 1.7 cu. ft. Over-the-range Microwave | ME16A4021 | 29-7/8”W x 17-1/16”H x 16-1/2”D | Stainless | Over-the-range, recirculating venting with 300 CFM fan. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Laundry | Samsung | 4.5 cu. ft. Washer | WF45T6000AW | 27”W x 38-3/4”H x 31-3/8”D | White | Front-load with stacking kit as needed, Energy Star. In side-by-side installations, washer always installs to the left. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Laundry | Samsung | 4.5 cu. ft. Washer | WF45T6000AW | 27”W x 38-3/4”H x 31-3/8”D | White | Front-load, Energy Star. In side-by-side installation, washer always installs on the left. Provide with 6” pedestal option in ADA Units. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Laundry | Samsung | 7.5 cu. ft. Dryer | DVE45T6020W | 27”W x 38-3/4”H x 31-1/2”D | White | Front-load, long-vent dryer. In side-by-side installations, dryer always installs to the right. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Laundry | Samsung | 7.5 cu. ft. Dryer | DVE45T6020W | 27”W x 38-3/4”H x 31-1/2”D | White | Front-load. In side-by-side installation, dryer always installs on the right. Provide with 6” pedestal option in ADA Units. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Samsung | ADA Slide-in, Electric Range. | NSE6DG8100 | 29-15/16”W x 36”H x 28-11/16”D | Stainless | Turn up edge of countertop to conceal visible edge of rang. Glass Top. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Samsung | 1.4 cu. ft. Countertop Microwave (Inside Pantry) | MS14K6000AS | 21-7/8”W x 12-5/16”H x 18-5/8”D | Stainless | Countertop Style; Verify Depth of Pantry. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Samsung | Energy Star dishwasher for ADA Units. | DW60R2014US | 23 3/4 in x 32 1/4 in x 23 1/2 in | Stainless | Front Controls. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Samsung 27 CF SxS Energy Star Refrigerator | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Energy Star, side-by-side refrigerator |
| Model # | RS27T5201SR |
| Size | 35-7/8”W x 70-1/16”H x 33-1/2”D |
| Color/Finish | Stainless |
| Notes | Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Insinkerator Disposal 1/2 hp | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Insinkerator |
| Description | Disposal |
| Model # | Badger 5 Standard |
| Size | 1/2 HP |
| Color/Finish | |
| Notes | Provide with power cord |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung Over-the-Range Microwave | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | 1.7 cu. ft. Over-the-range Microwave |
| Model # | ME16A4021 |
| Size | 29-7/8”W x 17-1/16”H x 16-1/2”D |
| Color/Finish | Stainless |
| Notes | Over-the-range, recirculating venting with 300 CFM fan. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung Energy Star Front Load Washer | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 4.5 cu. ft. Washer |
| Model # | WF45T6000AW |
| Size | 27”W x 38-3/4”H x 31-3/8”D |
| Color/Finish | White |
| Notes | Front-load with stacking kit as needed, Energy Star. In side-by-side installations, washer always installs to the left. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung ADA Energy Star Front Load Washer | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 4.5 cu. ft. Washer |
| Model # | WF45T6000AW |
| Size | 27”W x 38-3/4”H x 31-3/8”D |
| Color/Finish | White |
| Notes | Front-load, Energy Star. In side-by-side installation, washer always installs on the left. Provide with 6” pedestal option in ADA Units. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung Long Vent Front Load Dryer | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 7.5 cu. ft. Dryer |
| Model # | DVE45T6020W |
| Size | 27”W x 38-3/4”H x 31-1/2”D |
| Color/Finish | White |
| Notes | Front-load, long-vent dryer. In side-by-side installations, dryer always installs to the right. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung ADA Long Vent Front Load Dryer | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 7.5 cu. ft. Dryer |
| Model # | DVE45T6020W |
| Size | 27”W x 38-3/4”H x 31-1/2”D |
| Color/Finish | White |
| Notes | Front-load. In side-by-side installation, dryer always installs on the right. Provide with 6” pedestal option in ADA Units. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| ADA Samsung Slide-in Range | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | ADA Slide-in, Electric Range. |
| Model # | NSE6DG8100 |
| Size | 29-15/16”W x 36”H x 28-11/16”D |
| Color/Finish | Stainless |
| Notes | Turn up edge of countertop to conceal visible edge of rang. Glass Top. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung Pantry Microwave | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | 1.4 cu. ft. Countertop Microwave (Inside Pantry) |
| Model # | MS14K6000AS |
| Size | 21-7/8”W x 12-5/16”H x 18-5/8”D |
| Color/Finish | Stainless |
| Notes | Countertop Style; Verify Depth of Pantry. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung ADA Dishwasher | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Energy Star dishwasher for ADA Units. |
| Model # | DW60R2014US |
| Size | 23 3/4 in x 32 1/4 in x 23 1/2 in |
| Color/Finish | Stainless |
| Notes | Front Controls. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
Bath Accessories
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Bathroom | Pamex | Surface Paper Holder | BC14-42 | 7-3/8” x 1-3/4” | Matte Black | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Pamex | Towel Bar Set | BC14-15824 | 25-3/4" x 2-1/8" | Matte Black | See Architectural Unit Plans for Quantity | $ | NOVEL, RENDER, HARMON |
|
| Bathroom | Pamex | Curved Shower Rod | BSR-573/673 | 60” | Matte Black | Only in Tub/shower combo locations | $$ | NOVEL, RENDER, HARMON |
|
| Bathroom | Pamex | Single Robe Hook | BC14-21 | 2” x 2” Diameter | Matte Black | See Architectural Unit Plans for Quantity | $ | NOVEL |
|
| Bathroom | Coral Industries | Pivot Swing | Freestyle Series | 78" tall & shower width wide | Matte Black | Semi-frameless doors with ¼” clear glass, pound-on handle (Include one per 2-bedroom and one in 50% of 1-bedrooms) | $$ | NOVEL, HARMON |
|
| Bathroom | Living Spaces | Rectangular Mirror | 280557 | 30x42 | Brass Trim | Separate mirrors for each sink (one for single sink, two for double sink) | $$ | NOVEL |
|
| Pamex Toilet Paper Holder MB | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Surface Paper Holder |
| Model # | BC14-42 |
| Size | 7-3/8” x 1-3/4” |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Pamex 24" Towel Bar MB | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Towel Bar Set |
| Model # | BC14-15824 |
| Size | 25-3/4" x 2-1/8" |
| Color/Finish | Matte Black |
| Notes | See Architectural Unit Plans for Quantity |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Pamex Curved Shower Rod MB | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Curved Shower Rod |
| Model # | BSR-573/673 |
| Size | 60” |
| Color/Finish | Matte Black |
| Notes | Only in Tub/shower combo locations |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Pamex Robe Hook MB | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Single Robe Hook |
| Model # | BC14-21 |
| Size | 2” x 2” Diameter |
| Color/Finish | Matte Black |
| Notes | See Architectural Unit Plans for Quantity |
| Price Point | $ |
| Product Type | NOVEL |
| Coral Industries Semi-Frameless Shower Door 78" Tall MB | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Coral Industries |
| Description | Pivot Swing |
| Model # | Freestyle Series |
| Size | 78" tall & shower width wide |
| Color/Finish | Matte Black |
| Notes | Semi-frameless doors with ¼” clear glass, pound-on handle (Include one per 2-bedroom and one in 50% of 1-bedrooms) |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Living Spaces Vanity Mirror | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Living Spaces |
| Description | Rectangular Mirror |
| Model # | 280557 |
| Size | 30x42 |
| Color/Finish | Brass Trim |
| Notes | Separate mirrors for each sink (one for single sink, two for double sink) |
| Price Point | $$ |
| Product Type | NOVEL |
Cabinets & Countertops
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Advanta | Mayfair FOL Thermofoil | Base Cabinets | White | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. Trash pull-outs require full extension soft-close slides also. | $$ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | Advanta | Mayfair FOL Thermofoil | 42" upper cabinets | Wood Thermofoil Vertical Grain to match LVT | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Open Shelving Above Kitchen Sinks (See Architectural Plans) | $$ | NOVEL, HARMON |
|
|
| Bathroom | Leedo | Sorano Thermofoil | 34" high vanities | White | Full-overlay, frameless, Drawers to be wood boxes and have full extension, soft-close slides. | $$ | NOVEL, RENDER, HARMON |
|
|
| Kitchens and Bathrooms | Richelieu | Pull spec - drawer | BP10746900 | Matte Black | Bar Pull | $$ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | Heron Stone | Granite | Eased edges along Tops, Bottoms, and Corners | 3 cm | Glacier White | Eased edges along Tops, Bottoms, and Corners. | $$ | NOVEL, RENDER, HARMON |
|
| Kitchen | Silestone by Cosentino | Quartz | 3cm | Grey Expo | Eased Edges at Tops, Bottoms, and Corners. | $$ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Heron Stone | Granite | Eased Edge along Top, Bottom, Corners | 2 cm | Glacier White | White Cabinet Scheme | $ | RENDER, HARMON |
|
| Bathroom | Silestone by Cosentino | Quartz | 2cm | Grey Expo | Eased Edges at Tops, Bottoms, and Corners | $$ | RENDER, NOVEL, HARMON |
|
|
| Bathroom | Amerisink | Square Undermount Sink | AS225 | 20" x 15"x7.5” | White (020) | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Amerisink | Square Undermount Sink | AS240A | 19.5" x 14.25"x5.5” | White (020) | $ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | Amerisink | Kitchen Sink – Undermount | AS152 | 32”x19”x9” | Stainless | Squared edges oversize single bowl. | NOVEL, RENDER, HARMON |
|
| Advanta Kitchen & Island Thermofoil Shaker Cabinets White | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Advanta |
| Description | Mayfair FOL Thermofoil |
| Model # | |
| Size | Base Cabinets |
| Color/Finish | White |
| Notes | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. Trash pull-outs require full extension soft-close slides also. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Advanta Kitchen & Island Thermofoil Shaker Cabinets Wood | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Advanta |
| Description | Mayfair FOL Thermofoil |
| Model # | |
| Size | 42" upper cabinets |
| Color/Finish | Wood Thermofoil Vertical Grain to match LVT |
| Notes | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Open Shelving Above Kitchen Sinks (See Architectural Plans) |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Leedo Bathroom Thermofoil Shaker | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Leedo |
| Description | Sorano Thermofoil |
| Model # | |
| Size | 34" high vanities |
| Color/Finish | White |
| Notes | Full-overlay, frameless, Drawers to be wood boxes and have full extension, soft-close slides. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Richelieu Cabinet Hardware Pull MB | |
|---|---|
|
|
| Location | Kitchens and Bathrooms |
| Manufacturer | Richelieu |
| Description | Pull spec - drawer |
| Model # | BP10746900 |
| Size | |
| Color/Finish | Matte Black |
| Notes | Bar Pull |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Heron Stone Granite Kitchen GW | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Heron Stone |
| Description | Granite |
| Model # | Eased edges along Tops, Bottoms, and Corners |
| Size | 3 cm |
| Color/Finish | Glacier White |
| Notes | Eased edges along Tops, Bottoms, and Corners. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Silestone Kitchen Quartz GE | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Silestone by Cosentino |
| Description | Quartz |
| Model # | |
| Size | 3cm |
| Color/Finish | Grey Expo |
| Notes | Eased Edges at Tops, Bottoms, and Corners. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Heron Stone Granite Bathroom GW | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Heron Stone |
| Description | Granite |
| Model # | Eased Edge along Top, Bottom, Corners |
| Size | 2 cm |
| Color/Finish | Glacier White |
| Notes | White Cabinet Scheme |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Silestone Bathroom Quartz GO | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Silestone by Cosentino |
| Description | Quartz |
| Model # | |
| Size | 2cm |
| Color/Finish | Grey Expo |
| Notes | Eased Edges at Tops, Bottoms, and Corners |
| Price Point | $$ |
| Product Type | RENDER, NOVEL, HARMON |
| Amerisink Bathroom Sink | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Amerisink |
| Description | Square Undermount Sink |
| Model # | AS225 |
| Size | 20" x 15"x7.5” |
| Color/Finish | White (020) |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink ADA Vanity Sink | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Amerisink |
| Description | Square Undermount Sink |
| Model # | AS240A |
| Size | 19.5" x 14.25"x5.5” |
| Color/Finish | White (020) |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink Kitchen Sink | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Amerisink |
| Description | Kitchen Sink – Undermount |
| Model # | AS152 |
| Size | 32”x19”x9” |
| Color/Finish | Stainless |
| Notes | Squared edges oversize single bowl. |
| Price Point | |
| Product Type | NOVEL, RENDER, HARMON |
Doors & Hardware
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Units | Masonite | Single Panel, Craftsman / Square Profile, Solid Core | Lincoln Park | 7' | Primed MDF | $$ | NOVEL |
|
|
| Unit Entry Door | Masonite | Single Panel, Craftsman / Square Profile, Solid Core | Lincoln Park Series | 8' | Primed MDF | $$ | NOVEL |
|
|
| Unit Doors Interior | Masonite | 2-Panel, Craftsman / Square Profile, Hollow Core | Logan Series | 6’-8” | Primed MDF | $ | NOVEL, RENDER, HARMON |
|
|
| Patio Door Exterior | Therma-Tru | 8' | Smooth Door, Clear Glass | Tempered Glass if Required by code. Provide glazing trim that can be painted with dark colors (if needed) | $$ | NOVEL, RENDER, HARMON |
|
||
| Electronic Deadbolt Unit Entries | Schlage Control | Smart Lock with Addison trim | Addison | Matte Black | Unit entry doors. Provide with Stratis software package. All electronic door fobs to be dual credential and coordinated with access control vendor for compatibility. John Blackwelder John.Blackwelder@allegion.com (803) 361-6892 |
|
|||
| Patio | Taymor | Vega Square Rose Lever | Lever (30-D0067X4BLK), model number dependent on function | Matte Black | Keyed Lock on Basement/1st Floor Only & No Lock on all Upper Floors | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Doors Interior | Taymor | Vega Square Rose Lever | Lever (30-D0067X4BLK), model number dependent on function. | Matte Black | Privacy Locks on Bathroom & Bedroom Doors | $$ | NOVEL, RENDER, HARMON |
|
|
| Patio | Taymor | Premier Square Deadbolt | 30-D01SC40BLK | Matte Black | Deadbolt (30-D01SC40BLK) model number dependent on function Keyed Lock on Basement/1st Floor Units & Bolt Only on all Upper Floors | $$ | NOVEL, RENDER, HARMON |
|
|
| Units | Hager | RC18423121DEA58 | 3.5" x 3.5" | Matte Black | All hinges to match door hardware. No paintable hinges. | $ | NOVEL, RENDER, HARMON |
|
|
| Unit Interiors | Rejuvenation | C102308 | Aged Brass | See Architectural Plans for Locations; In Select Units Only | $$ | NOVEL, HARMON |
|
| Masonite Entry Door 7' | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Masonite |
| Description | Single Panel, Craftsman / Square Profile, Solid Core |
| Model # | Lincoln Park |
| Size | 7' |
| Color/Finish | Primed MDF |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL |
| Masonite Entry Door 8' | |
|---|---|
|
|
| Location | Unit Entry Door |
| Manufacturer | Masonite |
| Description | Single Panel, Craftsman / Square Profile, Solid Core |
| Model # | Lincoln Park Series |
| Size | 8' |
| Color/Finish | Primed MDF |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL |
| Masonite Interior Door Two Panel 6'-8" | |
|---|---|
|
|
| Location | Unit Doors Interior |
| Manufacturer | Masonite |
| Description | 2-Panel, Craftsman / Square Profile, Hollow Core |
| Model # | Logan Series |
| Size | 6’-8” |
| Color/Finish | Primed MDF |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Therma-Tru Patio Door 8' | |
|---|---|
|
|
| Location | Patio Door Exterior |
| Manufacturer | Therma-Tru |
| Description | |
| Model # | |
| Size | 8' |
| Color/Finish | Smooth Door, Clear Glass |
| Notes | Tempered Glass if Required by code. Provide glazing trim that can be painted with dark colors (if needed) |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Schlage Smart Lock Addison Trim | |
|---|---|
|
|
| Location | Electronic Deadbolt Unit Entries |
| Manufacturer | Schlage Control |
| Description | Smart Lock with Addison trim |
| Model # | Addison |
| Size | |
| Color/Finish | Matte Black |
| Notes | Unit entry doors. Provide with Stratis software package. All electronic door fobs to be dual credential and coordinated with access control vendor for compatibility. John Blackwelder John.Blackwelder@allegion.com (803) 361-6892 |
| Price Point | |
| Product Type | |
| Taymor Patio Door Square Rose MB | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | Taymor |
| Description | Vega Square Rose Lever |
| Model # | Lever (30-D0067X4BLK), model number dependent on function |
| Size | |
| Color/Finish | Matte Black |
| Notes | Keyed Lock on Basement/1st Floor Only & No Lock on all Upper Floors |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Taymor Interior Door Hardware MB | |
|---|---|
|
|
| Location | Unit Doors Interior |
| Manufacturer | Taymor |
| Description | Vega Square Rose Lever |
| Model # | Lever (30-D0067X4BLK), model number dependent on function. |
| Size | |
| Color/Finish | Matte Black |
| Notes | Privacy Locks on Bathroom & Bedroom Doors |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

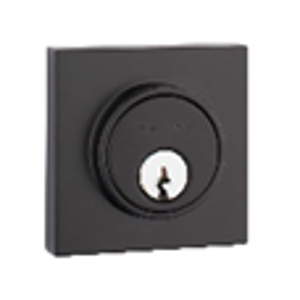

| Taymor Patio Door Deadbolt Square MB | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | Taymor |
| Description | Premier Square Deadbolt |
| Model # | 30-D01SC40BLK |
| Size | |
| Color/Finish | Matte Black |
| Notes | Deadbolt (30-D01SC40BLK) model number dependent on function Keyed Lock on Basement/1st Floor Units & Bolt Only on all Upper Floors |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Hager Standard Door Hinge MB | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Hager |
| Description | |
| Model # | RC18423121DEA58 |
| Size | 3.5" x 3.5" |
| Color/Finish | Matte Black |
| Notes | All hinges to match door hardware. No paintable hinges. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Rejuvenation Entry Bench Hooks AB | |
|---|---|
|
|
| Location | Unit Interiors |
| Manufacturer | Rejuvenation |
| Description | |
| Model # | C102308 |
| Size | |
| Color/Finish | Aged Brass |
| Notes | See Architectural Plans for Locations; In Select Units Only |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
Flooring & Hard Surfaces
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Daltile Color Wheel | Glazed Ceramic Wall Tile | X114 | 4” x 12” | Desert Gray | Horizontal, Brick Pattern, with 1/16" joints - Grout: Laticrete - Color TBD. Seal grout joints. At Tub/Shower surrounds, provide full height rows to achieve minimum 8’ AFF tile height. | $$ | NOVEL, RENDER, HARMON |
|
| Bathroom | Emser | Wall Tile, Porcelain | F02SILHCO0312SB | 12" x 24" (x 4 full tiles above shower pan) | Silhouette Contour | Stacked Vertically with 1/8" joints - Grout: Laticrete - Color TBD. Schluter edge. Center tile on walls. | $$ | NOVEL, HARMON |
|
| Bathroom | Emser | Wall Tile, Porcelain | F02SILHCO0312SB | 12" x 24" (x 3 full tiles above tub) | Silhouette Contour | Stacked Vertically with 1/8" joints - Grout: Laticrete - Color TBD.. Schluter edge. Center tile on walls. | $$ | NOVEL, RENDER, HARMON |
|
| Bathroom | Shaw Contract Group | Reside - 12 Mil LVP | 4094/12mil | 6" x 48" | Shelter 94710 | $$ | NOVEL, RENDER, HARMON |
|
|
| Units | Shaw Contract Group | Reside - 12 Mil LVP | 4094V/12mil | 6" x 48" | Shelter 94710 | Alternate price to include LVT throughout Unit (ALTERNATE) | $ | NOVEL, RENDER, HARMON |
|
| Units | Mohawk | Broadloom | Remarkable Quality | Liquid Silver | Studio Units and Ground Floor on-slab units must be LVT throughout the entire unit | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Entries | Daltile | Double Hollywood Bevel | G771 | 4" | Absolute Black | Polished Granite | $$ | NOVEL |
|
| Daltile Kitchen Backsplash DG | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Daltile Color Wheel |
| Description | Glazed Ceramic Wall Tile |
| Model # | X114 |
| Size | 4” x 12” |
| Color/Finish | Desert Gray |
| Notes | Horizontal, Brick Pattern, with 1/16" joints - Grout: Laticrete - Color TBD. Seal grout joints. At Tub/Shower surrounds, provide full height rows to achieve minimum 8’ AFF tile height. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Emser Bathroom Tub/Shower Surround | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Emser |
| Description | Wall Tile, Porcelain |
| Model # | F02SILHCO0312SB |
| Size | 12" x 24" (x 4 full tiles above shower pan) |
| Color/Finish | Silhouette Contour |
| Notes | Stacked Vertically with 1/8" joints - Grout: Laticrete - Color TBD. Schluter edge. Center tile on walls. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Emser Tub/Shower Surround SC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Emser |
| Description | Wall Tile, Porcelain |
| Model # | F02SILHCO0312SB |
| Size | 12" x 24" (x 3 full tiles above tub) |
| Color/Finish | Silhouette Contour |
| Notes | Stacked Vertically with 1/8" joints - Grout: Laticrete - Color TBD.. Schluter edge. Center tile on walls. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Shaw Bathroom Flooring Reside | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Shaw Contract Group |
| Description | Reside - 12 Mil LVP |
| Model # | 4094/12mil |
| Size | 6" x 48" |
| Color/Finish | Shelter 94710 |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Shaw Flooring Shelter | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Shaw Contract Group |
| Description | Reside - 12 Mil LVP |
| Model # | 4094V/12mil |
| Size | 6" x 48" |
| Color/Finish | Shelter 94710 |
| Notes | Alternate price to include LVT throughout Unit (ALTERNATE) |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Mohawk Carpet LS | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Mohawk |
| Description | Broadloom |
| Model # | Remarkable Quality |
| Size | |
| Color/Finish | Liquid Silver |
| Notes | Studio Units and Ground Floor on-slab units must be LVT throughout the entire unit |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Daltile Entry Threshold AB | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Daltile |
| Description | Double Hollywood Bevel |
| Model # | G771 |
| Size | 4" |
| Color/Finish | Absolute Black |
| Notes | Polished Granite |
| Price Point | $$ |
| Product Type | NOVEL |
Interior Paint Colors
| Location | Manufacturer | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|
| Unit Walls | Sherwin Williams | SW 7631 – City Loft. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, RENDER, HARMON |
|
| Ceilings | Sherwin Williams | SW 7005 - Pure White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, RENDER, HARMON |
|
| Unit Doors and Trim | Sherwin Williams | SW 7069 - Iron Ore. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solution B31 Series Semi-Gloss. | August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, HARMON |
|
| Unit Doors and Trim | Sherwin Williams | SW 9132 – Acacia Haze. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solution B31 Series Semi-Gloss. | August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, HARMON |
|
| Unit Walls City Loft | |
|---|---|
|
|
| Location | Unit Walls |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW 7631 – City Loft. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. |
| Notes | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Ceilings Pure White | |
|---|---|
|
|
| Location | Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW 7005 - Pure White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. |
| Notes | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Doors and Trim Iron Ore | |
|---|---|
|
|
| Location | Unit Doors and Trim |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW 7069 - Iron Ore. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solution B31 Series Semi-Gloss. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, HARMON |
| Unit Doors and Trim Acacia Haze | |
|---|---|
|
|
| Location | Unit Doors and Trim |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW 9132 – Acacia Haze. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solution B31 Series Semi-Gloss. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, HARMON |
Lighting Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Ceiling fan / light combo | Westinghouse | Comet | 7233600 | 52" | White | Provide with LED lamps | $ | NOVEL, RENDER, HARMON |
|
| Bathroom | Canarm | Talia Vanity | IVL1076A03MGG | 28”x11.75”x9” | Brass Accent | One for single sink over mirror. Furnish and install 400 lumen LED Edison Bulb. | $$ | NOVEL, HARMON |
|
| Bathroom | Canarm | Talia Vanity | IVL1076A02MGG | 18”x11.75”x8.25” | Brass accent with metal gray shades | One fixture over each sink in a double vanity. Furnish and install 400 lumen LED Edison Bulb. | $$ | NOVEL, RENDER, HARMON |
|
| Kitchen | Bromi Design | Single Light Pendant | B6001WG | 10”W x HGT TBD | Round, White Exterior Finish/Gold Interior Finish | See Plans for Locations. Centered over island. | $ | NOVEL, HARMON |
|
| Units | GMLighting | 5” 3000K LED Flush Mount | GM-RND5-30-WH | 5” | Round, Matte White Finish | $ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | GMLighting | 5” 3000K LED Flush Mount | GM-RND5-30-WH | 5” | Round, Matte White Finish | See Plans for Locations. Centered between island and counter | $ | NOVEL, RENDER, HARMON |
|
| Units | Honeywell | T6 Smart Thermostat | TH6220WF2006/U | White | $$ | NOVEL, HARMON, RENDER |
|
||
| Patio | GM Lighting | 6” 3000K LED Flush Mount | GM-LSD6-30-WH | 6” | Square, Matte Black Finish | Wet Label / Rated in Bathroom Areas and Balcony Areas | $ | NOVEL, RENDER, HARMON |
|
| Patio | WAC Lighting | Wall/Step Light | WL-LED110 | 5”W x 3 1/8”H | Matte Black | Wall/Step Light | $$ | NOVEL, RENDER, HARMON |
|
| Units | Leviton | Decora Plus | R72-05601-2WS | White | 1 dimmer switch per unit (kitchen Pendants) | $$ | NOVEL, RENDER, HARMON |
|
|
| Units | Leviton | Decora Plus | R62-16252-0WS | White | $$ | NOVEL, HARMON |
|
||
| Units | Leviton | Decora Plus | T5833-W (Type A and C Charger) | White | Locations as shown in plans | $$ | NOVEL, HARMON, RENDER |
|
|
| Units | GMLighting | 8” 3000K LED Flush Mount | GM-RND8-30-WH | 8” | Round, Matte White Finish | See Plans for Locations. | $ | NOVEL, RENDER, HARMON |
|
| Westinghouse Ceiling Fan 52" White | |
|---|---|
|
|
| Location | Ceiling fan / light combo |
| Manufacturer | Westinghouse |
| Description | Comet |
| Model # | 7233600 |
| Size | 52" |
| Color/Finish | White |
| Notes | Provide with LED lamps |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Canarm Bathroom Vanity Three Head | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Canarm |
| Description | Talia Vanity |
| Model # | IVL1076A03MGG |
| Size | 28”x11.75”x9” |
| Color/Finish | Brass Accent |
| Notes | One for single sink over mirror. Furnish and install 400 lumen LED Edison Bulb. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Canarm Bathroom Vanity Two Head | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Canarm |
| Description | Talia Vanity |
| Model # | IVL1076A02MGG |
| Size | 18”x11.75”x8.25” |
| Color/Finish | Brass accent with metal gray shades |
| Notes | One fixture over each sink in a double vanity. Furnish and install 400 lumen LED Edison Bulb. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Bromi Pendant WG | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Bromi Design |
| Description | Single Light Pendant |
| Model # | B6001WG |
| Size | 10”W x HGT TBD |
| Color/Finish | Round, White Exterior Finish/Gold Interior Finish |
| Notes | See Plans for Locations. Centered over island. |
| Price Point | $ |
| Product Type | NOVEL, HARMON |
| GMLighting Closet Puck Light 5" 3000K | |
|---|---|
|
|
| Location | Units |
| Manufacturer | GMLighting |
| Description | 5” 3000K LED Flush Mount |
| Model # | GM-RND5-30-WH |
| Size | 5” |
| Color/Finish | Round, Matte White Finish |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| GMLighting Kitchen 5" | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | GMLighting |
| Description | 5” 3000K LED Flush Mount |
| Model # | GM-RND5-30-WH |
| Size | 5” |
| Color/Finish | Round, Matte White Finish |
| Notes | See Plans for Locations. Centered between island and counter |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Honeywell Smart Thermostat White | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Honeywell |
| Description | T6 Smart Thermostat |
| Model # | TH6220WF2006/U |
| Size | |
| Color/Finish | White |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, HARMON, RENDER |
| GM Lighting Patio Puck Light 5" MB | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | GM Lighting |
| Description | 6” 3000K LED Flush Mount |
| Model # | GM-LSD6-30-WH |
| Size | 6” |
| Color/Finish | Square, Matte Black Finish |
| Notes | Wet Label / Rated in Bathroom Areas and Balcony Areas |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| WAC Patio Step Light MB | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | WAC Lighting |
| Description | Wall/Step Light |
| Model # | WL-LED110 |
| Size | 5”W x 3 1/8”H |
| Color/Finish | Matte Black |
| Notes | Wall/Step Light |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Leviton Light Switches | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Decora Plus |
| Model # | R72-05601-2WS |
| Size | |
| Color/Finish | White |
| Notes | 1 dimmer switch per unit (kitchen Pendants) |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Leviton White Outlet | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Decora Plus |
| Model # | R62-16252-0WS |
| Size | |
| Color/Finish | White |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Leviton USB Outlets | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Decora Plus |
| Model # | T5833-W (Type A and C Charger) |
| Size | |
| Color/Finish | White |
| Notes | Locations as shown in plans |
| Price Point | $$ |
| Product Type | NOVEL, HARMON, RENDER |
| GMLighting LR Puck Light 8" | |
|---|---|
|
|
| Location | Units |
| Manufacturer | GMLighting |
| Description | 8” 3000K LED Flush Mount |
| Model # | GM-RND8-30-WH |
| Size | 8” |
| Color/Finish | Round, Matte White Finish |
| Notes | See Plans for Locations. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
Moulding Trimwork
| Location | Manufacturer | Description | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|
| Units | Base Board | 1" x 6" nominal | Solid wood - Contemporary eased edge. | $$ | NOVEL, HARMON |
|
||
| Units | Door Trim | 1"x 4" sides, 1"x 6" header | FJP - Contemporary square profile. Header flush with casings. No extensions provided. | $$ | NOVEL, RENDER, HARMON |
|
||
| Units | Window Apron & Stool | 4" apron 8” sill | FJP - Contemporary square profile with eased edges. Apron to be square cut at each end. | $$ | NOVEL, RENDER, HARMON |
|
||
| Units | Match trim color, Except in Kitchen and Bath at Cabinets: Color match to lower cabinets/toe kick | ½” x 1-1/2” | Applied at floor base throughout unit. Do not install at Sliding Door Clear Areas (i.e. width of door track) | $ | NOVEL, RENDER, HARMON |
|
||
| Closets | ClosetMaid | Closet Shelving | 2” high x 12” deep wire shelving or 1.5” high x 16” deep close mesh wire shelving | Vinyl coated steel | Provide brackets and wall anchors as needed to support shelves. | $ | NOVEL, RENDER, HARMON |
|
| Unit Islands | Unit Island Wood Post | 3x3 | Painted to match cabinets | Flooring to extend underneath island post. Perimeter of island posts to be wrapped with shoe mold after post is leveled. | $$ | NOVEL, HARMON |
|
|
| Unit Islands | Trim under Counter | ¼” x 1-5/16” | Applied under countertops to cover gap between drywall and countertop | $ | NOVEL, HARMON |
|
||
| Closets | Organized Living | Closet Shelving | Per Drawings | Chrome Rod/White Bracing with White Shelves | Size/quantity per drawings. Provide two shelves on long walls and single shelf on short wall. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 | NOVEL, HARMON |
|
| Wall Base 1" x 6" FJP | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Base Board |
| Size | 1" x 6" nominal |
| Color/Finish | |
| Notes | Solid wood - Contemporary eased edge. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Door Casing Trim 1"x4", 1"x6" FJP | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Door Trim |
| Size | 1"x 4" sides, 1"x 6" header |
| Color/Finish | |
| Notes | FJP - Contemporary square profile. Header flush with casings. No extensions provided. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Window Apron & Sill 4", 8" Paint Grade Pine | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Window Apron & Stool |
| Size | 4" apron 8” sill |
| Color/Finish | |
| Notes | FJP - Contemporary square profile with eased edges. Apron to be square cut at each end. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Shoe Mold 1/2" x 1-1/2" Paint Grade Wood | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Match trim color, Except in Kitchen and Bath at Cabinets: Color match to lower cabinets/toe kick |
| Size | ½” x 1-1/2” |
| Color/Finish | |
| Notes | Applied at floor base throughout unit. Do not install at Sliding Door Clear Areas (i.e. width of door track) |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

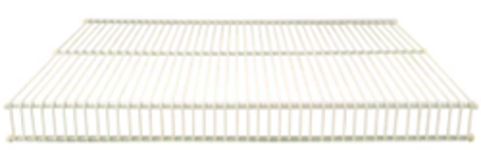

| ClosetMaid Close Mesh Wire Shelving | |
|---|---|
|
|
| Location | Closets |
| Manufacturer | ClosetMaid |
| Description | Closet Shelving |
| Size | 2” high x 12” deep wire shelving or 1.5” high x 16” deep close mesh wire shelving |
| Color/Finish | Vinyl coated steel |
| Notes | Provide brackets and wall anchors as needed to support shelves. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Island Wood Post 3x3 Paint Grade Wood | |
|---|---|
|
|
| Location | Unit Islands |
| Manufacturer | |
| Description | Unit Island Wood Post |
| Size | 3x3 |
| Color/Finish | Painted to match cabinets |
| Notes | Flooring to extend underneath island post. Perimeter of island posts to be wrapped with shoe mold after post is leveled. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Trim Under Counter 1/4" x 1-5/16" FJP | |
|---|---|
|
|
| Location | Unit Islands |
| Manufacturer | |
| Description | Trim under Counter |
| Size | ¼” x 1-5/16” |
| Color/Finish | |
| Notes | Applied under countertops to cover gap between drywall and countertop |
| Price Point | $ |
| Product Type | NOVEL, HARMON |
| Organized Living Closet Shelving | |
|---|---|
|
|
| Location | Closets |
| Manufacturer | Organized Living |
| Description | Closet Shelving |
| Size | Per Drawings |
| Color/Finish | Chrome Rod/White Bracing with White Shelves |
| Notes | Size/quantity per drawings. Provide two shelves on long walls and single shelf on short wall. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 |
| Price Point | |
| Product Type | NOVEL, HARMON |
Plumbing Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Peerless | Precept Kitchen Faucet | P7948LF-BL | Matte Black | 1.5 GPM Flow Rate. Single hold with pull down spray. | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Peerless | Bath Faucet | Xander P1519LF-BL-M | Matte Black | $$ | NOVEL, RENDER, HARMON |
|
||
| Tub/Shower | Peerless | Xander Tub/Shower Multichoice (less shower head) | PTT14419-BL | Matte Black | 1-Handle, Tub & Shower Combo. Drain/trim assemblies to match (separate shower head) | $$ | NOVEL, RENDER, HARMON |
|
|
| Shower Only Trim | Peerless | Xander Shower Valve and Trim (less shower head) | PTT14219-BL | Matte Black | Drain assemblies to match (separate shower head) | $$ | NOVEL, RENDER, HARMON |
|
|
| Bath/Shower Valves | Delta | Universal Mixing Valve | R10000-UNWS | $ | NOVEL, RENDER, HARMON |
|
|||
| Bathroom | Delta | Shower arm. | RP46870 shower arm | Matte Black | Only to be used in stand-alone showers. | $$ | NOVEL, RENDER, HARMON |
|
|
| Shower Head | Delta | Raincan Showerhead (with straight shower arm for stand-alone showers) | 52283 | Matte Black | 1.75 GPM Flow Rate. Square Showerhead | $$ | NOVEL, RENDER, HARMON |
|
|
| ADA Shower | Delta | Slide Bar | 51600-BL | Matte Black | Provide with Handheld Showerhead | $$ | NOVEL, RENDER, HARMON |
|
|
| ADA Shower | Delta | Diverter | T11859-BL | Matte Black | $$ | NOVEL, HARMON, RENDER |
|
||
| ADA Hand Held Shower Head | Delta | Active Touch Showerhead | 59424-BL-PK-B1 | Matte Black | 1.75 GPM Flow Rate. Hand Held Showerhead with pause function. | NOVEL, RENDER, HARMON |
|
||
| Tub/Shower | Aker | AcryIX Tub Unit | TO-3660 | 60"x36"x 17.75" | White | Provide vinyl quarter round along base of tub. Drain/faceplate to match tub fixture finish. | $$ | NOVEL, RENDER, HARMON |
|
| Bathroom | Mansfield | Alto 2-piece 1.28 gpf / Include Matching Seat | 137-3173 | 16-1/2" high minus seat | White | Elongated Bowl; Include 20110-0 BreviaT Soft-Close Seat and Lid | $ | NOVEL, RENDER, HARMON |
|
| Shower Pan | Sterling | Guard + Shower Pan | 95079-0 | Dimensions per Architectural Plans | White | Provide vinyl quarter round along base of pan. Drain to match shower fixture finish. | $$ | NOVEL, RENDER, HARMON |
|
| Peerless Kitchen Sink MB (1) | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Peerless |
| Description | Precept Kitchen Faucet |
| Model # | P7948LF-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.5 GPM Flow Rate. Single hold with pull down spray. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Peerless Bathroom Sink MB | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Peerless |
| Description | Bath Faucet |
| Model # | Xander P1519LF-BL-M |
| Size | |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Peerless Tub/Shower Trim MB | |
|---|---|
|
|
| Location | Tub/Shower |
| Manufacturer | Peerless |
| Description | Xander Tub/Shower Multichoice (less shower head) |
| Model # | PTT14419-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1-Handle, Tub & Shower Combo. Drain/trim assemblies to match (separate shower head) |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Peerless Shower Trim MB | |
|---|---|
|
|
| Location | Shower Only Trim |
| Manufacturer | Peerless |
| Description | Xander Shower Valve and Trim (less shower head) |
| Model # | PTT14219-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | Drain assemblies to match (separate shower head) |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Delta Bath/Shower Valve | |
|---|---|
|
|
| Location | Bath/Shower Valves |
| Manufacturer | Delta |
| Description | Universal Mixing Valve |
| Model # | R10000-UNWS |
| Size | |
| Color/Finish | |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Delta Shower Arm MB | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Delta |
| Description | Shower arm. |
| Model # | RP46870 shower arm |
| Size | |
| Color/Finish | Matte Black |
| Notes | Only to be used in stand-alone showers. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Delta Rain Can Shower Head MB | |
|---|---|
|
|
| Location | Shower Head |
| Manufacturer | Delta |
| Description | Raincan Showerhead (with straight shower arm for stand-alone showers) |
| Model # | 52283 |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.75 GPM Flow Rate. Square Showerhead |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Delta ADA Shower Rod MB | |
|---|---|
|
|
| Location | ADA Shower |
| Manufacturer | Delta |
| Description | Slide Bar |
| Model # | 51600-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | Provide with Handheld Showerhead |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Delta ADA Shower Diverter MB | |
|---|---|
|
|
| Location | ADA Shower |
| Manufacturer | Delta |
| Description | Diverter |
| Model # | T11859-BL |
| Size | |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, HARMON, RENDER |
| Delta ADA Hand Held Shower Head MB | |
|---|---|
|
|
| Location | ADA Hand Held Shower Head |
| Manufacturer | Delta |
| Description | Active Touch Showerhead |
| Model # | 59424-BL-PK-B1 |
| Size | |
| Color/Finish | Matte Black |
| Notes | 1.75 GPM Flow Rate. Hand Held Showerhead with pause function. |
| Price Point | |
| Product Type | NOVEL, RENDER, HARMON |
| Aker 36" Tub | |
|---|---|
|
|
| Location | Tub/Shower |
| Manufacturer | Aker |
| Description | AcryIX Tub Unit |
| Model # | TO-3660 |
| Size | 60"x36"x 17.75" |
| Color/Finish | White |
| Notes | Provide vinyl quarter round along base of tub. Drain/faceplate to match tub fixture finish. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Mansfield Comfort Height Toilet | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Mansfield |
| Description | Alto 2-piece 1.28 gpf / Include Matching Seat |
| Model # | 137-3173 |
| Size | 16-1/2" high minus seat |
| Color/Finish | White |
| Notes | Elongated Bowl; Include 20110-0 BreviaT Soft-Close Seat and Lid |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Sterling FHA Shower Pan 38x60 | |
|---|---|
|
|
| Location | Shower Pan |
| Manufacturer | Sterling |
| Description | Guard + Shower Pan |
| Model # | 95079-0 |
| Size | Dimensions per Architectural Plans |
| Color/Finish | White |
| Notes | Provide vinyl quarter round along base of pan. Drain to match shower fixture finish. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
Window Treatments
| Location | Manufacturer | Description | Model # | Size | Color/Material | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Unit Windows | Hunter Douglas | 2" Faux Woods Blind | Everywood | Per Drawings | Match Window Frames | Inside mount - smooth finish - contemporary valence option; Cordless Option | $ | NOVEL, RENDER, HARMON |
|
| Unit Windows (ALTERNATE) | Hunter Douglas | Roller Shades | Designer Roller Shade | Per Drawings | Match Window Frames | Inside mount - smooth finish, smooth valences included. 1% openness in bedrooms and 5% everywhere else. | $$$ | NOVEL, HARMON |
|
| Hunter Douglas 2" Blinds | |
|---|---|
|
|
| Location | Unit Windows |
| Manufacturer | Hunter Douglas |
| Description | 2" Faux Woods Blind |
| Model # | Everywood |
| Size | Per Drawings |
| Color/Material | Match Window Frames |
| Notes | Inside mount - smooth finish - contemporary valence option; Cordless Option |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Hunter Douglas Roller Shades | |
|---|---|
|
|
| Location | Unit Windows (ALTERNATE) |
| Manufacturer | Hunter Douglas |
| Description | Roller Shades |
| Model # | Designer Roller Shade |
| Size | Per Drawings |
| Color/Material | Match Window Frames |
| Notes | Inside mount - smooth finish, smooth valences included. 1% openness in bedrooms and 5% everywhere else. |
| Price Point | $$$ |
| Product Type | NOVEL, HARMON |
