Appliances
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Samsung | ADA Slide-in, Electric Range. | NSE6DG8100 | 29-15/16”W x 36”H x 28-11/16”D | Stainless | Turn up edge of countertop to conceal visible edge of rang. Glass Top. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Insinkerator | Disposal | Badger 5 Standard | 1/2 HP | Provide with power cord | $ | NOVEL |
|
|
| Kitchen | Samsung | 18 Cu. Ft. Counter-Depth Energy Star French-Door Refrigerator | RF18A5101SR | 32-3/16”W x 70-1/8”H x 30-9/16”D | Stainless | All Studio Units and 1-Bedroom Units under 700 sf. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $$ | NOVEL |
|
| Kitchen | Samsung | 1.7 cu. ft. Over-the-range Microwave | ME16A4021 | 29-7/8”W x 17-1/16”H x 16-1/2”D | Stainless | Over-the-range, recirculating venting with 300 CFM fan. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Samsung | Energy Star dishwasher with hidden controls. | DW80CG4021 | 23-7/8”W x 35”H x 24-3/4”D | Stainless | Plastic tub Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $$ | NOVEL |
|
| Kitchen | Samsung | Slide-in, Electric Range. | NSE6DG8100 | 29-15/16”W x 36”H x 28-11/16”D | Stainless | Glass Top Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Samsung | Under Cabinet Range Hood with LED lighting and recirculating fan. | NK30A3300 | 30”W x 9-3/4” H x 19-3/4” D | Stainless | 350 CFM. Provide low switch control or remote for accessibility requirements in ADA Units. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Samsung | Energy Star, side-by-side refrigerator | RS27T5201SR | 35-7/8”W x 70-1/16”H x 33-1/2”D | Stainless | Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Samsung | Energy Star dishwasher for ADA Units. | DW60R2014US | 23 3/4 in x 32 1/4 in x 23 1/2 in | Stainless | Front Controls. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| Kitchen | Samsung | 1.9 cu. ft. microwave | MS19DG8500 | 23-5/8" x 13-9/32"H x 18-7/16"D | Stainless | Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $ | NOVEL |
|
| ADA Laundry | Samsung | 7.5 cu. ft. Dryer | DVE50BG8300E | 27”W x 38-3/4”H x 31-1/2”D | White | Front-load, Energy Star. Provide with 6” pedestal option. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $$$ | NOVEL |
|
| Laundry | Samsung | 4.5 cu. ft. Washer | WF50BG8300AEUS | 27”W x 38-3/4”H x 31-3/8”D | White | Front-load with stacking kit as needed, Energy Star. In SxS installations, washer always installs on left. Provide with 6” pedestal option. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $$$ | NOVEL |
|
| Laundry | Samsung | 7.5 cu. ft. Dryer | DVE50BG8300E | 27”W x 38-3/4”H x 31-1/2”D | White | Front-load, Energy Star. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $$$ | NOVEL |
|
| Laundry | Samsung | 4.5 cu. ft. Washer | WF50BG8300AEUS | 27”W x 38-3/4”H x 31-3/8”D | White | Front-load with stacking kit as needed, Energy Star. In SxS installations, washer always installs on left. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 | $$$ | NOVEL |
|
| ADA Samsung Slide-in Range | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | ADA Slide-in, Electric Range. |
| Model # | NSE6DG8100 |
| Size | 29-15/16”W x 36”H x 28-11/16”D |
| Color/Finish | Stainless |
| Notes | Turn up edge of countertop to conceal visible edge of rang. Glass Top. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Insinkerator Disposal 1/2 hp | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Insinkerator |
| Description | Disposal |
| Model # | Badger 5 Standard |
| Size | 1/2 HP |
| Color/Finish | |
| Notes | Provide with power cord |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung 18 CF French Door Energy Star Refrigerator | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | 18 Cu. Ft. Counter-Depth Energy Star French-Door Refrigerator |
| Model # | RF18A5101SR |
| Size | 32-3/16”W x 70-1/8”H x 30-9/16”D |
| Color/Finish | Stainless |
| Notes | All Studio Units and 1-Bedroom Units under 700 sf. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $$ |
| Product Type | NOVEL |
| Samsung Over-the-Range Microwave | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | 1.7 cu. ft. Over-the-range Microwave |
| Model # | ME16A4021 |
| Size | 29-7/8”W x 17-1/16”H x 16-1/2”D |
| Color/Finish | Stainless |
| Notes | Over-the-range, recirculating venting with 300 CFM fan. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung Plastic Tub Energy Star Dishwasher | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Energy Star dishwasher with hidden controls. |
| Model # | DW80CG4021 |
| Size | 23-7/8”W x 35”H x 24-3/4”D |
| Color/Finish | Stainless |
| Notes | Plastic tub Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $$ |
| Product Type | NOVEL |
| Samsung Slide-In Range | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Slide-in, Electric Range. |
| Model # | NSE6DG8100 |
| Size | 29-15/16”W x 36”H x 28-11/16”D |
| Color/Finish | Stainless |
| Notes | Glass Top Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung Under Cabinet Range Hood | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Under Cabinet Range Hood with LED lighting and recirculating fan. |
| Model # | NK30A3300 |
| Size | 30”W x 9-3/4” H x 19-3/4” D |
| Color/Finish | Stainless |
| Notes | 350 CFM. Provide low switch control or remote for accessibility requirements in ADA Units. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung 27 CF SxS Energy Star Refrigerator | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Energy Star, side-by-side refrigerator |
| Model # | RS27T5201SR |
| Size | 35-7/8”W x 70-1/16”H x 33-1/2”D |
| Color/Finish | Stainless |
| Notes | Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung ADA Dishwasher | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | Energy Star dishwasher for ADA Units. |
| Model # | DW60R2014US |
| Size | 23 3/4 in x 32 1/4 in x 23 1/2 in |
| Color/Finish | Stainless |
| Notes | Front Controls. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung Countertop Microwave | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Samsung |
| Description | 1.9 cu. ft. microwave |
| Model # | MS19DG8500 |
| Size | 23-5/8" x 13-9/32"H x 18-7/16"D |
| Color/Finish | Stainless |
| Notes | Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $ |
| Product Type | NOVEL |
| Samsung ADA Energy Star Dryer (1) | |
|---|---|
|
|
|
| Location | ADA Laundry |
| Manufacturer | Samsung |
| Description | 7.5 cu. ft. Dryer |
| Model # | DVE50BG8300E |
| Size | 27”W x 38-3/4”H x 31-1/2”D |
| Color/Finish | White |
| Notes | Front-load, Energy Star. Provide with 6” pedestal option. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $$$ |
| Product Type | NOVEL |
| Samsung ADA Energy Star Washer Pair | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 4.5 cu. ft. Washer |
| Model # | WF50BG8300AEUS |
| Size | 27”W x 38-3/4”H x 31-3/8”D |
| Color/Finish | White |
| Notes | Front-load with stacking kit as needed, Energy Star. In SxS installations, washer always installs on left. Provide with 6” pedestal option. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $$$ |
| Product Type | NOVEL |
| Samsung Energy Star Dryer | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 7.5 cu. ft. Dryer |
| Model # | DVE50BG8300E |
| Size | 27”W x 38-3/4”H x 31-1/2”D |
| Color/Finish | White |
| Notes | Front-load, Energy Star. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $$$ |
| Product Type | NOVEL |
| Samsung Energy Star Washer ES Dryer Pair | |
|---|---|
|
|
|
| Location | Laundry |
| Manufacturer | Samsung |
| Description | 4.5 cu. ft. Washer |
| Model # | WF50BG8300AEUS |
| Size | 27”W x 38-3/4”H x 31-3/8”D |
| Color/Finish | White |
| Notes | Front-load with stacking kit as needed, Energy Star. In SxS installations, washer always installs on left. Stephen Paschal s.paschal@sea.samsung.com (469) 978-2985 |
| Price Point | $$$ |
| Product Type | NOVEL |
Bath Accessories
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Bathroom | Precision Frameworks | Polished Edge Floating Mirror | RM2438FL | 24"x38" | Polished | Separate mirrors for each sink (one for single sink, two for double sink). | $$ | NOVEL, RENDER, HARMON |
|
| Bathroom | Coral Industries | Freestyle Series with pivot swing door. | Freestyle Series | 80" tall & shower width wide | Polished Chrome | Semi-frameless doors with clear glass | $$ | NOVEL, HARMON, RENDER |
|
| Bathroom | Kohler | Single robe hook. | K-26636-CP | Polished Chrome | See Architectural Unit Plans for Quantity Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL |
|
|
| Bathroom | Kohler | Curved Shower Rod | K-9351-2MB | 60" | Polished Chrome | Only in Tub/shower combo locations Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL, RENDER, HARMON |
|
| Bathroom | Kohler | Elate paper holder. | K-27292-CP | 7-3/8” x 1-3/4” | Polished Chrome | Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL |
|
| Bathroom | Kohler | Elate towel bar. | K-27287-CP | 25-3/4" x 2-1/8" | Polished Chrome | See Architectural Unit Plans for Quantity Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL |
|

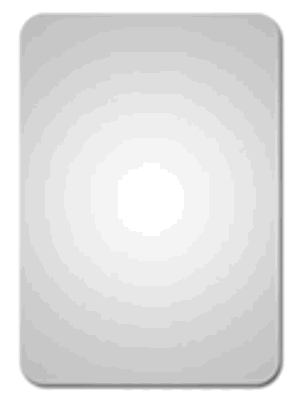

| Bath Mirror 2438 | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Precision Frameworks |
| Description | Polished Edge Floating Mirror |
| Model # | RM2438FL |
| Size | 24"x38" |
| Color/Finish | Polished |
| Notes | Separate mirrors for each sink (one for single sink, two for double sink). |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

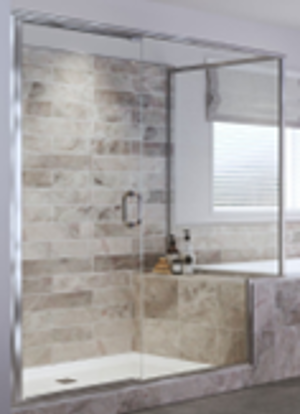

| Coral Industries Pivot Swing PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Coral Industries |
| Description | Freestyle Series with pivot swing door. |
| Model # | Freestyle Series |
| Size | 80" tall & shower width wide |
| Color/Finish | Polished Chrome |
| Notes | Semi-frameless doors with clear glass |
| Price Point | $$ |
| Product Type | NOVEL, HARMON, RENDER |

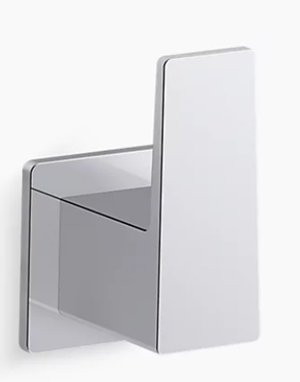

| Kohler Bathroom Robe Hook | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Kohler |
| Description | Single robe hook. |
| Model # | K-26636-CP |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | See Architectural Unit Plans for Quantity Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL |

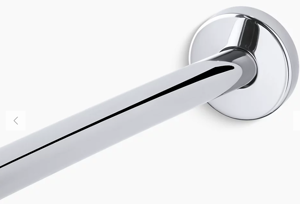

| Kohler Shower Rod | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Kohler |
| Description | Curved Shower Rod |
| Model # | K-9351-2MB |
| Size | 60" |
| Color/Finish | Polished Chrome |
| Notes | Only in Tub/shower combo locations Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

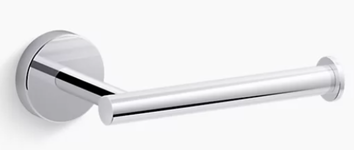

| Kohler Toilet Paper Holder | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Kohler |
| Description | Elate paper holder. |
| Model # | K-27292-CP |
| Size | 7-3/8” x 1-3/4” |
| Color/Finish | Polished Chrome |
| Notes | Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL |

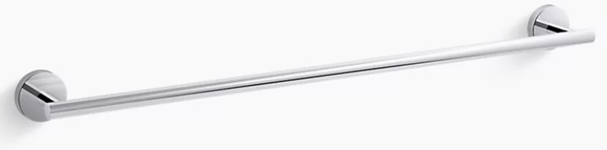

| Kohler Towel Bar | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Kohler |
| Description | Elate towel bar. |
| Model # | K-27287-CP |
| Size | 25-3/4" x 2-1/8" |
| Color/Finish | Polished Chrome |
| Notes | See Architectural Unit Plans for Quantity Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL |
Cabinets & Countertops
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Rev-A-Shelf | Top Mount Double Trash Pullout | RV-53TM1835GSCDM2-FL | Double 35 QT cans | Grey | Trash pull-outs require full extension soft-close slides and dual canister. | $$ | NOVEL, HARMON |
|
| Bathroom | Amerisink | Square Undermount Sink | AS240A | 19.5" x 14.25"x5.5” | White (020) | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Amerisink | Square Undermount Sink | AS225 | 20" x 15"x7.5” | White (020) | $ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | Amerisink | Kitchen Sink – Undermount | AS152 | 32”x19”x9” | Stainless | Squared edges oversize single bowl. | NOVEL, RENDER, HARMON |
|
|
| Kitchen | Amerisink | Kitchen Sink -undermount | AS1526 | 31.25"x18"x5.5" | Stainless | Squared edges oversize/ADA Depth Single bowl | $ | NOVEL, RENDER, HARMON |
|
| Bathroom | Republic | Slim shaker thermofoil cabinet. | White | Full-overlay, drawers to be wood boxes with full extension, soft-close slides. | $$ | NOVEL, HARMON |
|
||
| Units | Republic | Slim Shaker Thermofoil Cabinet | Sage | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1-1/2” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. | $$ | NOVEL, HARMON |
|
||
| Units | Republic | Slim shaker thermofoil cabinet | White | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1-1/2” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. | $$ | NOVEL, HARMON |
|
| Rev-A-Shelf 35QT Pullout | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Rev-A-Shelf |
| Description | Top Mount Double Trash Pullout |
| Model # | RV-53TM1835GSCDM2-FL |
| Size | Double 35 QT cans |
| Color/Finish | Grey |
| Notes | Trash pull-outs require full extension soft-close slides and dual canister. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Amerisink ADA Vanity Sink | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Amerisink |
| Description | Square Undermount Sink |
| Model # | AS240A |
| Size | 19.5" x 14.25"x5.5” |
| Color/Finish | White (020) |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink Bathroom Sink | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Amerisink |
| Description | Square Undermount Sink |
| Model # | AS225 |
| Size | 20" x 15"x7.5” |
| Color/Finish | White (020) |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink Kitchen Sink | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Amerisink |
| Description | Kitchen Sink – Undermount |
| Model # | AS152 |
| Size | 32”x19”x9” |
| Color/Finish | Stainless |
| Notes | Squared edges oversize single bowl. |
| Price Point | |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink ADA Kitchen Sink | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Amerisink |
| Description | Kitchen Sink -undermount |
| Model # | AS1526 |
| Size | 31.25"x18"x5.5" |
| Color/Finish | Stainless |
| Notes | Squared edges oversize/ADA Depth Single bowl |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

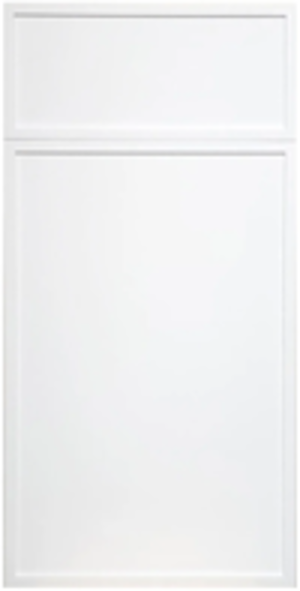

| Republic Bath Thermofoil Slim Shaker White | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Republic |
| Description | Slim shaker thermofoil cabinet. |
| Model # | |
| Size | |
| Color/Finish | White |
| Notes | Full-overlay, drawers to be wood boxes with full extension, soft-close slides. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |

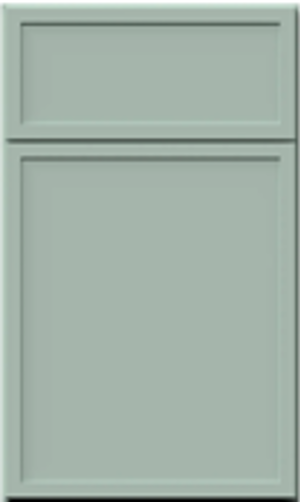

| Republic Kitchen Thermofoil Slim Shaker Sage | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Republic |
| Description | Slim Shaker Thermofoil Cabinet |
| Model # | |
| Size | |
| Color/Finish | Sage |
| Notes | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1-1/2” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Republic Kitchen Thermofoil Slim Shaker White | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Republic |
| Description | Slim shaker thermofoil cabinet |
| Model # | |
| Size | |
| Color/Finish | White |
| Notes | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1-1/2” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
Doors & Hardware
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Patio Door Exterior | Therma-Tru | 8' | Smooth Door, Clear Glass | Tempered Glass if Required by code. Provide glazing trim that can be painted with dark colors (if needed) | $$ | NOVEL, RENDER, HARMON |
|
||
| Unit Doors | AFCO | ADA Compliant Latching Panic Saddle Threshold | A-207BS | Match width of door. | Matte Black | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Entry | Masonite | Single Panel, Craftsman / Square Profile, Solid Core. | Lincoln Park Series | 3'-0"x7'-6" | Primed | Provide with 10" bottom panel. | $$$ | NOVEL |
|
| Mechanical Room | Taymor | Premier Round Flush Deadbolt | Deadbolt (30-D01SC408SN) model number dependent on function | Satin Nickel | Provide with dummy lever handle on outside of door. Katie Braunscheidel kbraunscheidel@taymor.com (561) 919-2995 | $$ | NOVEL, RENDER, HARMON |
|
|
| Mud Bench | Emtek | Conical Knurled Knob | 86655.CCKUS14.KNKUS14 | Polished Chrome | 3 Hooks See Architectural Plans for Locations; In Select Units Only | $$$ | NOVEL, RENDER, HARMON |
|
|
| Unit Entry & Unit Balcony | Taymor | Vega Round Rose Lever | Lever (30-D0064X4SN), model number dependent on function | Satin Nickel | Keyed Lock on Basement/1st Floor Only & No Lock on all Upper Floors Katie Braunscheidel kbraunscheidel@taymor.com (561) 919-2995 | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Entry & Unit Balcony | Hager | Standard Steel Hinge | BB12794545US15 | 4.5"x4.5" | Satin Nickel | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Entry & Unit Balcony | Taymor | Premier Round Flush Deadbolt | Deadbolt (30-D01SC408SN) model number dependent on function | Satin Nickel | Keyed Lock on Basement/1st Floor Units & Bolt Only on all Upper Floors Katie Braunscheidel kbraunscheidel@taymor.com (561) 919-2995 | $$ | NOVEL, HARMON, RENDER |
|
|
| Unit Entry Door | Hager | Standard HD square spring hinge | 1250 | 4.5"x4.5" | Satin Nickel | Hinge must be UL Rated Heavy Duty hinge for rated openings. Provide minimum 3 per door. | $$ | NOVEL, RENDER, HARMON |
|
| Unit Interior Doors | Taymor | Vega Round Rose Lever | Lever (30-D0064X4SN), model number dependent on function | Satin Nickel | Privacy Locks on Bathroom & Bedroom Doors Katie Braunscheidel kbraunscheidel@taymor.com (561) 919-2995 | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Interior Doors | Hager | Radius edge, plain bearing hinge. | RC18423124EA58 | 3.5"x3.5" | Satin Nickel | No paintable hinges | $ | NOVEL, RENDER, HARMON |
|
| Unit Interior Doors | Masonite | Single Panel, Craftsman / Square Profile, Hollow Core | Lincoln Park Series | Width x 7'-0" | Primed | Provide with 10" bottom plate | $$$ | NOVEL, HARMON |
|
| Unit Entry Door | Schlage | Smart Lock with Greenwich trim | BE467 | Satin Nickel | Unit entry doors. Provide with Stratis software package. All electronic door fobs to be dual credential and coordinated with access control vendor for compatibility. | $$$ | NOVEL |
|
| Therma-Tru Patio Door 8' | |
|---|---|
|
|
| Location | Patio Door Exterior |
| Manufacturer | Therma-Tru |
| Description | |
| Model # | |
| Size | 8' |
| Color/Finish | Smooth Door, Clear Glass |
| Notes | Tempered Glass if Required by code. Provide glazing trim that can be painted with dark colors (if needed) |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| AFCO Balcony Door Threshold | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | AFCO |
| Description | ADA Compliant Latching Panic Saddle Threshold |
| Model # | A-207BS |
| Size | Match width of door. |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Entry Door 7'-6" | |
|---|---|
|
|
| Location | Unit Entry |
| Manufacturer | Masonite |
| Description | Single Panel, Craftsman / Square Profile, Solid Core. |
| Model # | Lincoln Park Series |
| Size | 3'-0"x7'-6" |
| Color/Finish | Primed |
| Notes | Provide with 10" bottom panel. |
| Price Point | $$$ |
| Product Type | NOVEL |

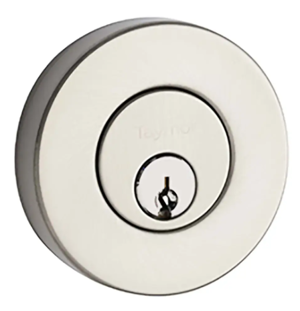

| Mechanical Room Deadbolt | |
|---|---|
|
|
| Location | Mechanical Room |
| Manufacturer | Taymor |
| Description | Premier Round Flush Deadbolt |
| Model # | Deadbolt (30-D01SC408SN) model number dependent on function |
| Size | |
| Color/Finish | Satin Nickel |
| Notes | Provide with dummy lever handle on outside of door. Katie Braunscheidel kbraunscheidel@taymor.com (561) 919-2995 |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

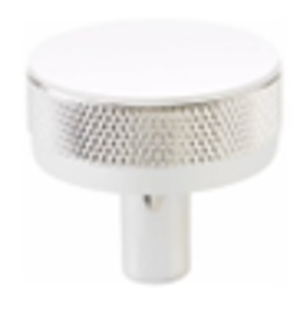

| Mud Room Hooks | |
|---|---|
|
|
| Location | Mud Bench |
| Manufacturer | Emtek |
| Description | Conical Knurled Knob |
| Model # | 86655.CCKUS14.KNKUS14 |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | 3 Hooks See Architectural Plans for Locations; In Select Units Only |
| Price Point | $$$ |
| Product Type | NOVEL, RENDER, HARMON |

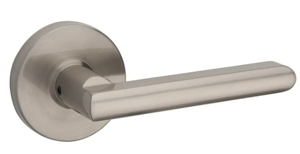

| Unit Entry and Balcony Door Hardware | |
|---|---|
|
|
| Location | Unit Entry & Unit Balcony |
| Manufacturer | Taymor |
| Description | Vega Round Rose Lever |
| Model # | Lever (30-D0064X4SN), model number dependent on function |
| Size | |
| Color/Finish | Satin Nickel |
| Notes | Keyed Lock on Basement/1st Floor Only & No Lock on all Upper Floors Katie Braunscheidel kbraunscheidel@taymor.com (561) 919-2995 |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

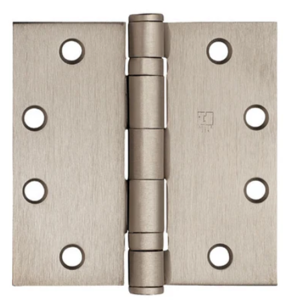

| Unit Entry and Balcony Door Hardware (1) | |
|---|---|
|
|
| Location | Unit Entry & Unit Balcony |
| Manufacturer | Hager |
| Description | Standard Steel Hinge |
| Model # | BB12794545US15 |
| Size | 4.5"x4.5" |
| Color/Finish | Satin Nickel |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Entry and Patio Door Deadbolt | |
|---|---|
|
|
| Location | Unit Entry & Unit Balcony |
| Manufacturer | Taymor |
| Description | Premier Round Flush Deadbolt |
| Model # | Deadbolt (30-D01SC408SN) model number dependent on function |
| Size | |
| Color/Finish | Satin Nickel |
| Notes | Keyed Lock on Basement/1st Floor Units & Bolt Only on all Upper Floors Katie Braunscheidel kbraunscheidel@taymor.com (561) 919-2995 |
| Price Point | $$ |
| Product Type | NOVEL, HARMON, RENDER |

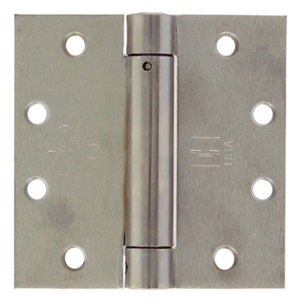

| Unit Entry Door Hardware | |
|---|---|
|
|
| Location | Unit Entry Door |
| Manufacturer | Hager |
| Description | Standard HD square spring hinge |
| Model # | 1250 |
| Size | 4.5"x4.5" |
| Color/Finish | Satin Nickel |
| Notes | Hinge must be UL Rated Heavy Duty hinge for rated openings. Provide minimum 3 per door. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Interior Door Hardware | |
|---|---|
|
|
| Location | Unit Interior Doors |
| Manufacturer | Taymor |
| Description | Vega Round Rose Lever |
| Model # | Lever (30-D0064X4SN), model number dependent on function |
| Size | |
| Color/Finish | Satin Nickel |
| Notes | Privacy Locks on Bathroom & Bedroom Doors Katie Braunscheidel kbraunscheidel@taymor.com (561) 919-2995 |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

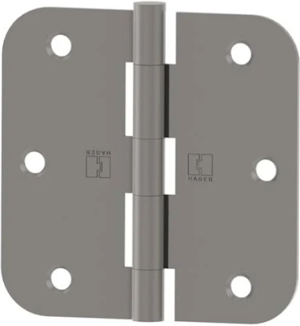

| Unit Interior Door Hardware (1) | |
|---|---|
|
|
| Location | Unit Interior Doors |
| Manufacturer | Hager |
| Description | Radius edge, plain bearing hinge. |
| Model # | RC18423124EA58 |
| Size | 3.5"x3.5" |
| Color/Finish | Satin Nickel |
| Notes | No paintable hinges |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

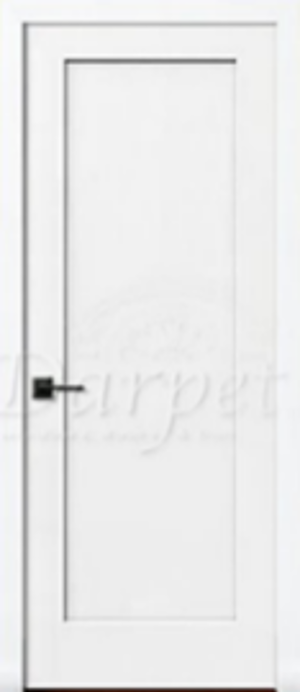

| Unit Interior Doors | |
|---|---|
|
|
| Location | Unit Interior Doors |
| Manufacturer | Masonite |
| Description | Single Panel, Craftsman / Square Profile, Hollow Core |
| Model # | Lincoln Park Series |
| Size | Width x 7'-0" |
| Color/Finish | Primed |
| Notes | Provide with 10" bottom plate |
| Price Point | $$$ |
| Product Type | NOVEL, HARMON |

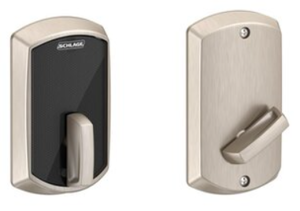

| Unit Entry Smart Lock | |
|---|---|
|
|
| Location | Unit Entry Door |
| Manufacturer | Schlage |
| Description | Smart Lock with Greenwich trim |
| Model # | BE467 |
| Size | |
| Color/Finish | Satin Nickel |
| Notes | Unit entry doors. Provide with Stratis software package. All electronic door fobs to be dual credential and coordinated with access control vendor for compatibility. |
| Price Point | $$$ |
| Product Type | NOVEL |
Flooring & Hard Surfaces
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Unit Entries | Daltile | Double Hollywood Bevel | G771 | 4" | Absolute Black | Polished Granite | $$ | NOVEL |
|
| Bedroom/ Closet Flooring | Mohawk | Broadloom | Enriched Texture II | 776 Hourglass | Nate Except Studio Units and Ground Floor Units – LVP to be kept throughout the Entire Unit Nate Kepner Nate_kepner@mohawkind.com (206) 530-4395 | $$ | NOVEL, RENDER, HARMON |
|
|
| Units | Schluter VinPro-U 5/16 | LVT to carpet transition strip | VPUL80ACGB | Lengths as shown on drawings | Brushed nickel anodized | Transition strip from carpet to vinyl flooring | $$ | NOVEL, HARMON |
|
| Living Area | Cobalt | 12 mil LVP | K##-827 | 7"x48" | Amaretto | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 | $ | NOVEL, RENDER, HARMON |
|
| Kitchen | Emser | Passion tile. | W32PASSCR0308P28 | 3"x8" | Nero | Stacked horizontally with 1/8" joints - Grout: Laticrete - Color TBD. Schluter edge. Center tile on sinks when installed against walls. Amy Aebert AmyAebert@emser.com (704) 648-1208 | $$ | NOVEL, HARMON |
|
| Kitchen | Emser | Passion tile | W32PASSNE0308P28 | 3"x8" | Nero | Stacked horizontally with 1/8" joints - Grout: Laticrete - Color TBD. Schluter edge. Center tile on sinks when installed against walls. Amy Aebert AmyAebert@emser.com (704) 648-1208 | $$ | NOVEL, HARMON |
|
| Daltile Entry Threshold AB | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Daltile |
| Description | Double Hollywood Bevel |
| Model # | G771 |
| Size | 4" |
| Color/Finish | Absolute Black |
| Notes | Polished Granite |
| Price Point | $$ |
| Product Type | NOVEL |
| Mohawk Carpet | |
|---|---|
|
|
| Location | Bedroom/ Closet Flooring |
| Manufacturer | Mohawk |
| Description | Broadloom |
| Model # | Enriched Texture II |
| Size | |
| Color/Finish | 776 Hourglass |
| Notes | Nate Except Studio Units and Ground Floor Units – LVP to be kept throughout the Entire Unit Nate Kepner Nate_kepner@mohawkind.com (206) 530-4395 |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Schluter Flooring Transition Strip | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Schluter VinPro-U 5/16 |
| Description | LVT to carpet transition strip |
| Model # | VPUL80ACGB |
| Size | Lengths as shown on drawings |
| Color/Finish | Brushed nickel anodized |
| Notes | Transition strip from carpet to vinyl flooring |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |

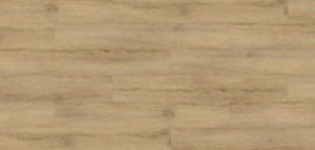

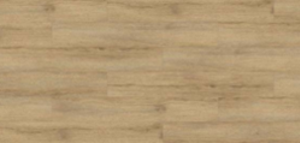

| Living Area Flooring | |
|---|---|
|
|
| Location | Living Area |
| Manufacturer | Cobalt |
| Description | 12 mil LVP |
| Model # | K##-827 |
| Size | 7"x48" |
| Color/Finish | Amaretto |
| Notes | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

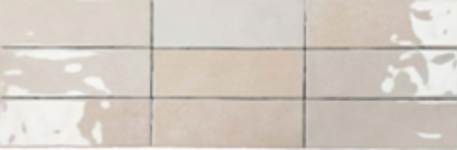

| Kitchen Backsplash Crema | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Emser |
| Description | Passion tile. |
| Model # | W32PASSCR0308P28 |
| Size | 3"x8" |
| Color/Finish | Nero |
| Notes | Stacked horizontally with 1/8" joints - Grout: Laticrete - Color TBD. Schluter edge. Center tile on sinks when installed against walls. Amy Aebert AmyAebert@emser.com (704) 648-1208 |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |

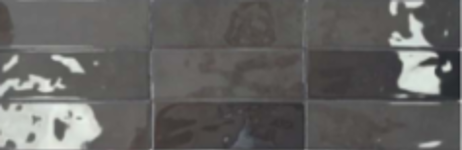

| Kitchen Backsplash Passion Nero | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Emser |
| Description | Passion tile |
| Model # | W32PASSNE0308P28 |
| Size | 3"x8" |
| Color/Finish | Nero |
| Notes | Stacked horizontally with 1/8" joints - Grout: Laticrete - Color TBD. Schluter edge. Center tile on sinks when installed against walls. Amy Aebert AmyAebert@emser.com (704) 648-1208 |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
Interior Paint Colors
| Location | Manufacturer | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|
| Ceilings | Sherwin Williams | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, RENDER, HARMON |
|
| Building Doors & Trim | Sherwin Williams | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600. | August E. Favaroth august.e.favaroth@sherwin.com | $$ | NOVEL |
|
| Corridor Trim (ACCENT) | Sherwin Williams | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600. | August E. Favaroth august.e.favaroth@sherwin.com | $$ | NOVEL |
|
| Corridor Trim (BASE) | Sherwin Williams | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600. | August E. Favaroth august.e.favaroth@sherwin.com | $$ | NOVEL |
|
| Corridor Walls (ACCENT) Flat | Sherwin Williams | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Flat B60-2600. | August E. Favaroth august.e.favaroth@sherwin.com | $$ | NOVEL |
|
| Corridor Walls (BASE) Flat | Sherwin Williams | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Flat B60-2600. | August E. Favaroth august.e.favaroth@sherwin.com | $$ | NOVEL |
|
| Elevator Lobby Walls & Ceilings Flat | Sherwin Williams | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Flat B20-2600. | Flat (ceilings)/Eggshell (walls). | $$ | NOVEL |
|
| Stairwells Walls & Ceilings | Sherwin Williams | See Interiors drawings for color. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex on ceilings. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 on walls. | August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL |
|
| Corridor Walls (ACCENT) Eggshell | Sherwin Williams | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Eg-Shel B20-2600. | August E. Favaroth august.e.favaroth@sherwin.com | $$ | NOVEL |
|
| Corridor Walls (BASE) Eggshell | Sherwin Williams | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Eg-Shel B20-2600. | August E. Favaroth august.e.favaroth@sherwin.com | $$ | NOVEL |
|
| Elevator Lobby Walls & Ceilings Eggshell | Sherwin Williams | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Eg-Shel B20-2600. | August E. Favaroth august.e.favaroth@sherwin.com | $$ | NOVEL |
|
| Units | Sherwin Williams | SW Accessible Beige - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE31 Series Semi-Gloss. | Semi-gloss August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | NOVEL, RENDER, HARMON |
|
| Units | Sherwin Williams | SW Accessible Beige - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE31 Series Semi-Gloss. | Semi-gloss August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | NOVEL, RENDER, HARMON |
|
| Unit Walls | Sherwin Williams | SW 7005 - Pure White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, RENDER, HARMON |
|
| Units | Sherwin Williams | SW Accessible Beige - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE31 Series Semi-Gloss. | Semi-gloss August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | NOVEL, RENDER, HARMON |
|
| Unit Ceilings Extra White | |
|---|---|
|
|
| Location | Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. |
| Notes | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Building Doors & Trim Paint | |
|---|---|
|
|
|
| Location | Building Doors & Trim |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $$ |
| Product Type | NOVEL |
| Corridor Trim (ACCENT) Paint | |
|---|---|
|
|
|
| Location | Corridor Trim (ACCENT) |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $$ |
| Product Type | NOVEL |
| Corridor Trim (BASE) Paint | |
|---|---|
|
|
|
| Location | Corridor Trim (BASE) |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Latex Semi-gloss B31-2600. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $$ |
| Product Type | NOVEL |
| Corridor Walls (ACCENT) Flat Paint | |
|---|---|
|
|
|
| Location | Corridor Walls (ACCENT) Flat |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Flat B60-2600. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $$ |
| Product Type | NOVEL |
| Corridor Walls (BASE) Flat Paint | |
|---|---|
|
|
|
| Location | Corridor Walls (BASE) Flat |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Flat B60-2600. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $$ |
| Product Type | NOVEL |
| Elevator Lobby Walls & Ceilings Flat Paint | |
|---|---|
|
|
|
| Location | Elevator Lobby Walls & Ceilings Flat |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Flat B20-2600. |
| Notes | Flat (ceilings)/Eggshell (walls). |
| Price Point | $$ |
| Product Type | NOVEL |
| Stairwell Walls & Ceilings | |
|---|---|
|
|
|
| Location | Stairwells Walls & Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex on ceilings. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 on walls. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL |
| Corridor Walls (ACCENT) Eggshell Paint | |
|---|---|
|
|
|
| Location | Corridor Walls (ACCENT) Eggshell |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Eg-Shel B20-2600. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $$ |
| Product Type | NOVEL |
| Corridor walls (BASE) Eggshell Paint | |
|---|---|
|
|
|
| Location | Corridor Walls (BASE) Eggshell |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Eg-Shel B20-2600. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $$ |
| Product Type | NOVEL |
| Elevator Lobby Walls & Ceilings Eggshell Paint | |
|---|---|
|
|
|
| Location | Elevator Lobby Walls & Ceilings Eggshell |
| Manufacturer | Sherwin Williams |
| Color/Finish | See Interiors drawings for color. 1 coat ProMar 200 Latex primer B28W02600, 2 coats ProMar 200 Zero VOC Interior Latex Eg-Shel B20-2600. |
| Notes | August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $$ |
| Product Type | NOVEL |
| Unit Entry Door and Balcony Door (Interior Side) | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW Accessible Beige - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE31 Series Semi-Gloss. |
| Notes | Semi-gloss August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Trim | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW Accessible Beige - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE31 Series Semi-Gloss. |
| Notes | Semi-gloss August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Walls Alabaster | |
|---|---|
|
|
| Location | Unit Walls |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW 7005 - Pure White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. |
| Notes | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Interior Doors | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW Accessible Beige - 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE31 Series Semi-Gloss. |
| Notes | Semi-gloss August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
Lighting Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | GMLighting | 5” 3000K LED Flush Mount | GM-RND5-30-WH | 5” | Round, Matte White Finish | See Plans for Locations. Centered between island and counter | $ | NOVEL, RENDER, HARMON |
|
| Units | GMLighting | 8” 3000K LED Flush Mount | GM-RND8-30-WH | 8” | Round, Matte White Finish | See Plans for Locations. | $ | NOVEL, RENDER, HARMON |
|
| Units | Leviton | Decora Plus | T5833-W (Type A and C Charger) | White | Locations as shown in plans | $$ | NOVEL, HARMON, RENDER |
|
|
| Units | Leviton | Decora Plus | R72-05601-2WS | White | 1 dimmer switch per unit (kitchen Pendants) | $$ | NOVEL, RENDER, HARMON |
|
|
| Units | Leviton | Decora Plus | R62-16252-0WS | White | $$ | NOVEL, HARMON |
|
||
| Patio | GM Lighting | 6” 3000K LED Flush Mount | GM-LSD6-30-WH | 6” | Square, Matte Black Finish | Wet Label / Rated in Bathroom Areas and Balcony Areas | $ | NOVEL, RENDER, HARMON |
|
| Island Pendants | Rejuvenation | 16” pendant light. | Blaine 16” Pendant | 16”W x HGT TBD | Polished Nickel Trim. Shade color TBD | See Plans for Locations. Centered over island. Provide with LED Bulb and ensure light/ switch are dimmable. | $$$ | NOVEL, HARMON |
|
| Ceiling fan / light combo | WAC | LED Ceiling Fan | F-081L-MW | 52" | White | Energy Star Fan. Fans in all bedrooms & pre-wire living room. Provide with LED lamps | $$ | NOVEL, RENDER, HARMON |
|
| Ceiling fan / light combo | WAC | Ceiling fan and light wall control | WC20-WT | White | Combination fan/light control switch | $$ | NOVEL, RENDER, HARMON |
|
|
| Bathroom Vanity | Kohler | Honesty sconce. | K-31493-SC02-CPL | 3.5”x16.33” | Polished Chrome | Provide one for single vanities and two for double vanities. Provide LED Bulb(s) with E26 base. | $$$ | NOVEL, HARMON |
|
| GMLighting Kitchen 5" | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | GMLighting |
| Description | 5” 3000K LED Flush Mount |
| Model # | GM-RND5-30-WH |
| Size | 5” |
| Color/Finish | Round, Matte White Finish |
| Notes | See Plans for Locations. Centered between island and counter |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| GMLighting LR Puck Light 8" | |
|---|---|
|
|
| Location | Units |
| Manufacturer | GMLighting |
| Description | 8” 3000K LED Flush Mount |
| Model # | GM-RND8-30-WH |
| Size | 8” |
| Color/Finish | Round, Matte White Finish |
| Notes | See Plans for Locations. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Leviton USB Outlets | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Decora Plus |
| Model # | T5833-W (Type A and C Charger) |
| Size | |
| Color/Finish | White |
| Notes | Locations as shown in plans |
| Price Point | $$ |
| Product Type | NOVEL, HARMON, RENDER |
| Leviton Light Switches | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Decora Plus |
| Model # | R72-05601-2WS |
| Size | |
| Color/Finish | White |
| Notes | 1 dimmer switch per unit (kitchen Pendants) |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Leviton White Outlet | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Decora Plus |
| Model # | R62-16252-0WS |
| Size | |
| Color/Finish | White |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| GM Lighting Patio Puck Light 5" MB | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | GM Lighting |
| Description | 6” 3000K LED Flush Mount |
| Model # | GM-LSD6-30-WH |
| Size | 6” |
| Color/Finish | Square, Matte Black Finish |
| Notes | Wet Label / Rated in Bathroom Areas and Balcony Areas |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

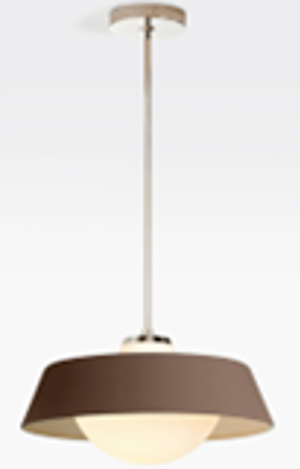

| Island Pendant Light | |
|---|---|
|
|
| Location | Island Pendants |
| Manufacturer | Rejuvenation |
| Description | 16” pendant light. |
| Model # | Blaine 16” Pendant |
| Size | 16”W x HGT TBD |
| Color/Finish | Polished Nickel Trim. Shade color TBD |
| Notes | See Plans for Locations. Centered over island. Provide with LED Bulb and ensure light/ switch are dimmable. |
| Price Point | $$$ |
| Product Type | NOVEL, HARMON |

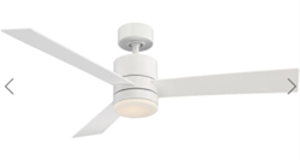

| Ceiling Fan/Light Combo | |
|---|---|
|
|
| Location | Ceiling fan / light combo |
| Manufacturer | WAC |
| Description | LED Ceiling Fan |
| Model # | F-081L-MW |
| Size | 52" |
| Color/Finish | White |
| Notes | Energy Star Fan. Fans in all bedrooms & pre-wire living room. Provide with LED lamps |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

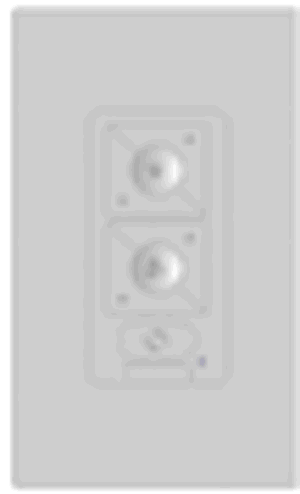

| Ceiling Fan/Light Control Switch | |
|---|---|
|
|
| Location | Ceiling fan / light combo |
| Manufacturer | WAC |
| Description | Ceiling fan and light wall control |
| Model # | WC20-WT |
| Size | |
| Color/Finish | White |
| Notes | Combination fan/light control switch |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

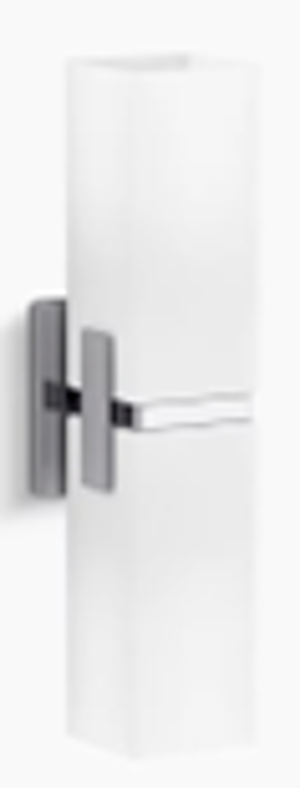

| Bathroom Vanity Sconce | |
|---|---|
|
|
| Location | Bathroom Vanity |
| Manufacturer | Kohler |
| Description | Honesty sconce. |
| Model # | K-31493-SC02-CPL |
| Size | 3.5”x16.33” |
| Color/Finish | Polished Chrome |
| Notes | Provide one for single vanities and two for double vanities. Provide LED Bulb(s) with E26 base. |
| Price Point | $$$ |
| Product Type | NOVEL, HARMON |
Moulding Trimwork
| Location | Manufacturer | Description | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|
| Units | Door Trim | 1"x 4" sides, 1"x 6" header | FJP - Contemporary square profile. Header flush with casings. No extensions provided. | $$ | NOVEL, RENDER, HARMON |
|
||
| Unit Islands | Unit Island Wood Post | 3x3 | Painted to match cabinets | Flooring to extend underneath island post. Perimeter of island posts to be wrapped with shoe mold after post is leveled. | $$ | NOVEL, HARMON |
|
|
| Closets | Organized Living | Closet Shelving | Per Drawings | Chrome Rod/White Bracing with White Shelves | Size/quantity per drawings. Provide two shelves on long walls and single shelf on short wall. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 | NOVEL, HARMON |
|
|
| Units | Base Board | 1" x 6" nominal | Solid wood - Contemporary eased edge. | $$ | NOVEL, HARMON |
|
||
| Units | Window Apron & Stool | 4" apron 8” sill | FJP - Contemporary square profile with eased edges. Apron to be square cut at each end. | $$ | NOVEL, RENDER, HARMON |
|
||
| Unit Islands | Trim under Counter | ¼” x 1-5/16” | Applied under countertops to cover gap between drywall and countertop | $ | NOVEL, HARMON |
|
| Door Casing Trim 1"x4", 1"x6" FJP | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Door Trim |
| Size | 1"x 4" sides, 1"x 6" header |
| Color/Finish | |
| Notes | FJP - Contemporary square profile. Header flush with casings. No extensions provided. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Island Wood Post 3x3 Paint Grade Wood | |
|---|---|
|
|
| Location | Unit Islands |
| Manufacturer | |
| Description | Unit Island Wood Post |
| Size | 3x3 |
| Color/Finish | Painted to match cabinets |
| Notes | Flooring to extend underneath island post. Perimeter of island posts to be wrapped with shoe mold after post is leveled. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |

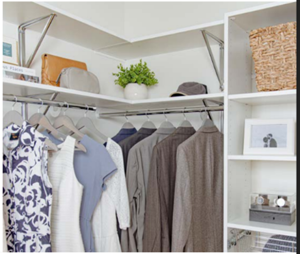

| Organized Living Closet Shelving | |
|---|---|
|
|
| Location | Closets |
| Manufacturer | Organized Living |
| Description | Closet Shelving |
| Size | Per Drawings |
| Color/Finish | Chrome Rod/White Bracing with White Shelves |
| Notes | Size/quantity per drawings. Provide two shelves on long walls and single shelf on short wall. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 |
| Price Point | |
| Product Type | NOVEL, HARMON |
| Wall Base 1" x 6" FJP | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Base Board |
| Size | 1" x 6" nominal |
| Color/Finish | |
| Notes | Solid wood - Contemporary eased edge. |
| Price Point | $$ |
| Product Type | NOVEL, HARMON |
| Window Apron & Sill 4", 8" Paint Grade Pine | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Window Apron & Stool |
| Size | 4" apron 8” sill |
| Color/Finish | |
| Notes | FJP - Contemporary square profile with eased edges. Apron to be square cut at each end. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Trim Under Counter 1/4" x 1-5/16" FJP | |
|---|---|
|
|
| Location | Unit Islands |
| Manufacturer | |
| Description | Trim under Counter |
| Size | ¼” x 1-5/16” |
| Color/Finish | |
| Notes | Applied under countertops to cover gap between drywall and countertop |
| Price Point | $ |
| Product Type | NOVEL, HARMON |
Plumbing Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Bathroom | Kohler | Hint bath faucet. | K-97060-4-CP | Polished Chrome | Watersense labeled. 1.2 GPM. Single Hole. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL |
|
|
| Toilet | Kohler | 2-piece 1.28 gpf / Include Matching Seat | 402313-0 | 16-1/2" high minus seat | White | Elongated Bowl; Include 20110-0 BreviaT Soft-Close Seat and Lid | $$ | NOVEL, RENDER, HARMON |
|
| ADA Bathroom | Kohler | Elate Diverter Valve | K-T35330-4-CP | Polished Chrome | Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL |
|
|

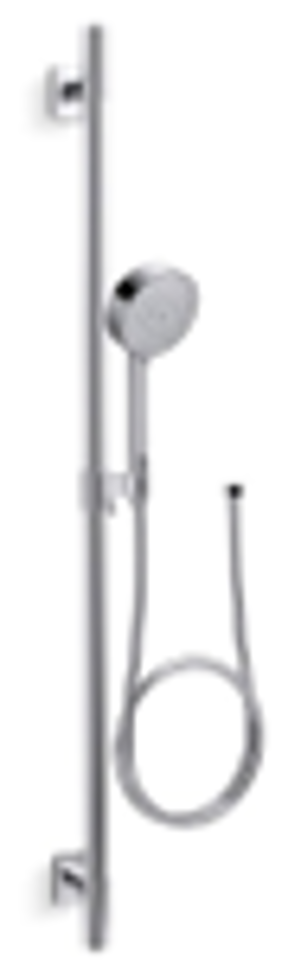

| ADA Bathroom | Kohler | Awaken Slide Bar with Hand Held Showerhead | K-99898-G-CP | Polished Chrome | Watersense labeled. 1-Handle Shower Trim. Drain/trim assemblies to match. 1.75 GPM shower head waterline stub should be @ 7’ 6” AFF. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL |
|
|
| Bathroom | Kohler | Honesty shower trim. | K-T99763-4G-CP | Polished Chrome | Watersense labeled. 1-Handle Shower Trim. Drain/trim assemblies to match. 1.75 GPM shower head waterline stub should be @ 7’ 6” AFF. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL |
|
|
| Bathroom | Kohler | Honesty tub/shower trim. | K-T99763-4G-CP | Polished Chrome | Watersense labeled. 1-Handle Shower Trim. Drain/trim assemblies to match. 1.75 GPM shower head waterline stub should be @ 7’ 6” AFF. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL |
|
|

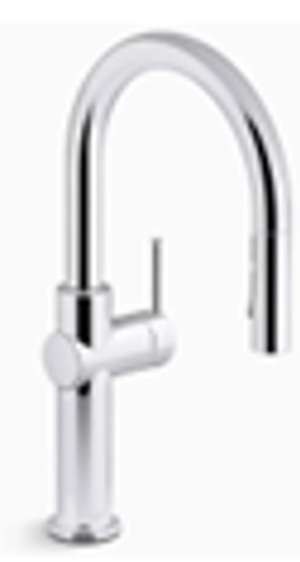

| Kitchen | Kohler | Crue kitchen faucet | K-22972-CP | Polished Chrome | 1.5 GPM. Single hold with pull down spray Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $$ | NOVEL |
|

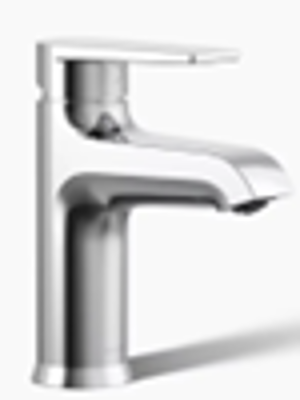

| Kohler Hint Bath Faucet PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Kohler |
| Description | Hint bath faucet. |
| Model # | K-97060-4-CP |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | Watersense labeled. 1.2 GPM. Single Hole. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL |
| Kohler Comfort Height Toilet | |
|---|---|
|
|
| Location | Toilet |
| Manufacturer | Kohler |
| Description | 2-piece 1.28 gpf / Include Matching Seat |
| Model # | 402313-0 |
| Size | 16-1/2" high minus seat |
| Color/Finish | White |
| Notes | Elongated Bowl; Include 20110-0 BreviaT Soft-Close Seat and Lid |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

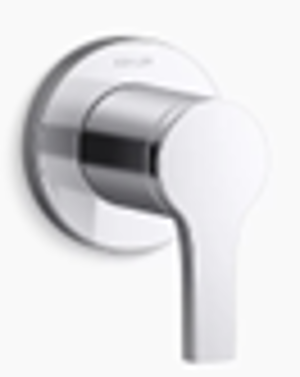

| Kohler ADA Elate Diverter PC | |
|---|---|
|
|
| Location | ADA Bathroom |
| Manufacturer | Kohler |
| Description | Elate Diverter Valve |
| Model # | K-T35330-4-CP |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL |
| Kohler ADA Shower Slide Bar PC | |
|---|---|
|
|
| Location | ADA Bathroom |
| Manufacturer | Kohler |
| Description | Awaken Slide Bar with Hand Held Showerhead |
| Model # | K-99898-G-CP |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | Watersense labeled. 1-Handle Shower Trim. Drain/trim assemblies to match. 1.75 GPM shower head waterline stub should be @ 7’ 6” AFF. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL |
| Kohler Honesty Shower PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Kohler |
| Description | Honesty shower trim. |
| Model # | K-T99763-4G-CP |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | Watersense labeled. 1-Handle Shower Trim. Drain/trim assemblies to match. 1.75 GPM shower head waterline stub should be @ 7’ 6” AFF. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL |
| Kohler Tub Shower Honesty PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Kohler |
| Description | Honesty tub/shower trim. |
| Model # | K-T99763-4G-CP |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | Watersense labeled. 1-Handle Shower Trim. Drain/trim assemblies to match. 1.75 GPM shower head waterline stub should be @ 7’ 6” AFF. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL |
| Kohler Kitchen Faucet PC | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Kohler |
| Description | Crue kitchen faucet |
| Model # | K-22972-CP |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | 1.5 GPM. Single hold with pull down spray Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $$ |
| Product Type | NOVEL |
Window Treatments
| Location | Manufacturer | Description | Model # | Size | Color/Material | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Units | Marietta Drapery | 2" Faux Woods Blind | 2” MDC- Fauxwood, | Per drawings. | Smooth White | Inside mount - smooth finish - contemporary valence option; Cordless Option. | $ | NOVEL, RENDER, HARMON |
|
| Unit Doors | Marietta Drapery | 2" faux wood blinds. | 2” MDC- Fauxwood, | Per drawings. | Smooth White | Fastened to door by metal clips - smooth finish – contemporary valence option; notch blinds around door hardware as needed. Cordless Option | $$ | NOVEL, RENDER, HARMON |
|
| Unit Windows | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Marietta Drapery |
| Description | 2" Faux Woods Blind |
| Model # | 2” MDC- Fauxwood, |
| Size | Per drawings. |
| Color/Material | Smooth White |
| Notes | Inside mount - smooth finish - contemporary valence option; Cordless Option. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Balcony Doors | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | Marietta Drapery |
| Description | 2" faux wood blinds. |
| Model # | 2” MDC- Fauxwood, |
| Size | Per drawings. |
| Color/Material | Smooth White |
| Notes | Fastened to door by metal clips - smooth finish – contemporary valence option; notch blinds around door hardware as needed. Cordless Option |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
