Appliances
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Whirlpool | 1.6 cu. ft. Over-the-range Microwave | WMH31017HS | 30”W x 17-3/8”H x 15-7/8”D | Stainless | Over-the-range, Recirculating vent kit provided Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | ADA Dishwasher | WDF550SAHS | 23 ½” W x 32 ½” H x 24” D | Stainless | Front Controls Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | Top Freezer Refrigerator 33" | WRT311FZDM | 32-3/4”W x 66-1/4”H x 32-7/8”D | Stainless | Provide with Grey refrigerator box and optional icemaker. Provide valence over top of refrigerator with 1-1/2” to top of refrigerator Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | Energy Star Dishwasher with Front Controls | WDF331PAMS | 23-7/8”W x 34-1/2”H x 24-1/2”D | Stainless | Front Controls Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Units | Whirlpool | 4.3 cu. ft. Washer | WFW560CHW | 27”W x 38-3/4”H x 31-9/16”D | White | Front-load with pedestal kit as needed, Energy Star Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $$ | RENDER, HARMON |
|
| Units | Whirlpool | 7.0 cu. ft. Dryer | WED4850HW | 29”W x 43”H x 28.25”D | White | Front-Load Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | Under Cabinet Range Hood with LED Lighting | UXT4130ADS | 29-15/16”W x 4-15/16” H x 17-1/4” D | Stainless | Provide low switch control or remote for accessibility requirements Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | Slide-in, Electric Range | WEE515S0LS | 29-7/8”W x 36”H x 28-15/16”D | Stainless with glass top | Slide-in, Electric Range. Turn edge of counter up to cap exposed edges. Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $$ | RENDER, HARMON |
|
| Kitchen | Whirlpool | 21.0 Cu. Ft. Side-by-Side Energy Star Refrigerator | WRS331SDHM | 32-3/4”W x 66-5/8”H x 33-5/8”D | Stainless | Provide with Grey refrigerator box. Provide valence over top of refrigerator with 1-1/2” to top of refrigerator Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $$ | RENDER, HARMON |
|
| Kitchen | Whirlpool | Electric Range | WFE3530RS | 29-7/8”W x 47-7/8”H x 27-3/4”D | Stainless with glass top | Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Units | Whirlpool | 3.9 cu. ft. Washer | WTW4855HW | 27.5”W x 42.25”H x 28”D | White | Top-Load Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | 1.6 cu. ft. Countertop Microwave | WCM30516HZ | 21-3/4”W x 13”H x 17-1/4”D | Stainless | Countertop Style Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Units | Whirlpool | 7.4 cu. ft. Dryer | WED5620HW | 27”W x 38-3/4”H x 31”D | White | Front-load with pedestal kit as needed. Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Whirlpool 1.6 CF OTR Microwave | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | 1.6 cu. ft. Over-the-range Microwave |
| Model # | WMH31017HS |
| Size | 30”W x 17-3/8”H x 15-7/8”D |
| Color/Finish | Stainless |
| Notes | Over-the-range, Recirculating vent kit provided Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool ADA Dishwasher | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | ADA Dishwasher |
| Model # | WDF550SAHS |
| Size | 23 ½” W x 32 ½” H x 24” D |
| Color/Finish | Stainless |
| Notes | Front Controls Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool ADA Top Freezer Refrigerator | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Top Freezer Refrigerator 33" |
| Model # | WRT311FZDM |
| Size | 32-3/4”W x 66-1/4”H x 32-7/8”D |
| Color/Finish | Stainless |
| Notes | Provide with Grey refrigerator box and optional icemaker. Provide valence over top of refrigerator with 1-1/2” to top of refrigerator Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Energy Star Front Control DW | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Energy Star Dishwasher with Front Controls |
| Model # | WDF331PAMS |
| Size | 23-7/8”W x 34-1/2”H x 24-1/2”D |
| Color/Finish | Stainless |
| Notes | Front Controls Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Energy Star Front Load ADA Washer | |
|---|---|
|
|
|
| Location | Units |
| Manufacturer | Whirlpool |
| Description | 4.3 cu. ft. Washer |
| Model # | WFW560CHW |
| Size | 27”W x 38-3/4”H x 31-9/16”D |
| Color/Finish | White |
| Notes | Front-load with pedestal kit as needed, Energy Star Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $$ |
| Product Type | RENDER, HARMON |
| Whirlpool Front Load Dryer | |
|---|---|
|
|
|
| Location | Units |
| Manufacturer | Whirlpool |
| Description | 7.0 cu. ft. Dryer |
| Model # | WED4850HW |
| Size | 29”W x 43”H x 28.25”D |
| Color/Finish | White |
| Notes | Front-Load Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |

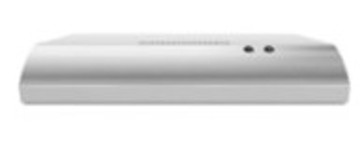

| Whirlpool Range Hood | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Under Cabinet Range Hood with LED Lighting |
| Model # | UXT4130ADS |
| Size | 29-15/16”W x 4-15/16” H x 17-1/4” D |
| Color/Finish | Stainless |
| Notes | Provide low switch control or remote for accessibility requirements Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Slide In ADA Range | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Slide-in, Electric Range |
| Model # | WEE515S0LS |
| Size | 29-7/8”W x 36”H x 28-15/16”D |
| Color/Finish | Stainless with glass top |
| Notes | Slide-in, Electric Range. Turn edge of counter up to cap exposed edges. Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $$ |
| Product Type | RENDER, HARMON |
| Whirlpool SxS 21 CF Refrigerator | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | 21.0 Cu. Ft. Side-by-Side Energy Star Refrigerator |
| Model # | WRS331SDHM |
| Size | 32-3/4”W x 66-5/8”H x 33-5/8”D |
| Color/Finish | Stainless |
| Notes | Provide with Grey refrigerator box. Provide valence over top of refrigerator with 1-1/2” to top of refrigerator Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $$ |
| Product Type | RENDER, HARMON |
| Whirlpool Tombstone Range | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Electric Range |
| Model # | WFE3530RS |
| Size | 29-7/8”W x 47-7/8”H x 27-3/4”D |
| Color/Finish | Stainless with glass top |
| Notes | Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Top Load Washer | |
|---|---|
|
|
|
| Location | Units |
| Manufacturer | Whirlpool |
| Description | 3.9 cu. ft. Washer |
| Model # | WTW4855HW |
| Size | 27.5”W x 42.25”H x 28”D |
| Color/Finish | White |
| Notes | Top-Load Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Countertop ADA Microwave | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | 1.6 cu. ft. Countertop Microwave |
| Model # | WCM30516HZ |
| Size | 21-3/4”W x 13”H x 17-1/4”D |
| Color/Finish | Stainless |
| Notes | Countertop Style Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Front Load ADA Dryer | |
|---|---|
|
|
|
| Location | Units |
| Manufacturer | Whirlpool |
| Description | 7.4 cu. ft. Dryer |
| Model # | WED5620HW |
| Size | 27”W x 38-3/4”H x 31”D |
| Color/Finish | White |
| Notes | Front-load with pedestal kit as needed. Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
Bath Accessories
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Bathroom | Pamex | Curved Shower Rod | BSR-573/673 | 60" | Satin Nickel | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Pfister | Pfirst Modern Robe Hook | BRH-PFM0GS | 3-3/4” x 2-3/4” Diameter | Brushed Nickel | See Architectural Unit Plans for Quantity Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | RENDER, HARMON, NOVEL |
|
| Bathroom | Pfister | Pfirst Modern Surface Paper Holder | BPH-PFM0GS | 9-3/8” x 2-3/8” | Brushed Nickel | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | RENDER, HARMON, NOVEL |
|
| Bathroom | Pfister | Pfirst Modern Towel Bar | BTB-PFM2GS | 25-3/4" x 2-1/8" | Brushed Nickel | See Architectural Unit Plans for Quantity Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | NOVEL, RENDER, HARMON |
|
| Bathroom | Precision Frameworks | Rectangular Framed, Glass Mirror | FR3040BN | 30"x40" | Brushed Nickel | Thin-framed metal edge. | $$ | NOVEL, RENDER, HARMON |
|

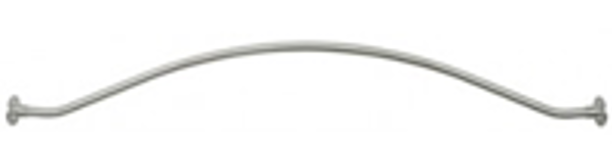

| Pamex Curved Shower Rod SN | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Curved Shower Rod |
| Model # | BSR-573/673 |
| Size | 60" |
| Color/Finish | Satin Nickel |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

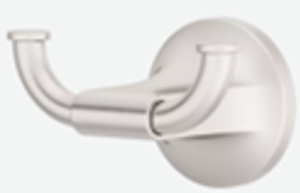

| Pfister Robe Hook BN | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Pfirst Modern Robe Hook |
| Model # | BRH-PFM0GS |
| Size | 3-3/4” x 2-3/4” Diameter |
| Color/Finish | Brushed Nickel |
| Notes | See Architectural Unit Plans for Quantity Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | RENDER, HARMON, NOVEL |

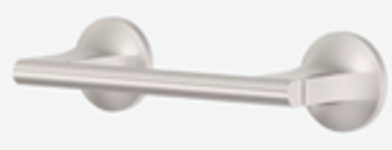

| Pfister Toilet Paper Holder BN | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Pfirst Modern Surface Paper Holder |
| Model # | BPH-PFM0GS |
| Size | 9-3/8” x 2-3/8” |
| Color/Finish | Brushed Nickel |
| Notes | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | RENDER, HARMON, NOVEL |

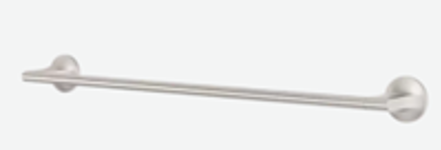

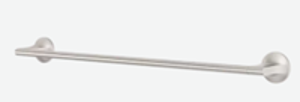

| Pfister Towel Bar BN | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Pfirst Modern Towel Bar |
| Model # | BTB-PFM2GS |
| Size | 25-3/4" x 2-1/8" |
| Color/Finish | Brushed Nickel |
| Notes | See Architectural Unit Plans for Quantity Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

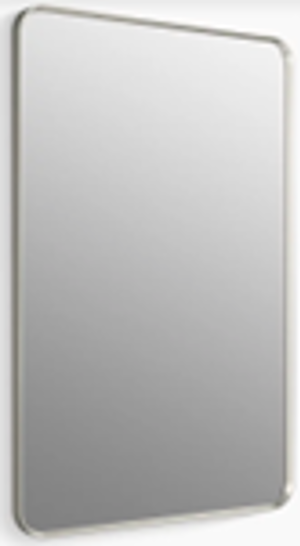

| Precision Frameworks Bath Mirror BN | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Precision Frameworks |
| Description | Rectangular Framed, Glass Mirror |
| Model # | FR3040BN |
| Size | 30"x40" |
| Color/Finish | Brushed Nickel |
| Notes | Thin-framed metal edge. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
Cabinets & Countertops
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Advanta | Mayfair FOL Thermofoil | Base Cabinets | White | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. Trash pull-outs require full extension soft-close slides also. | $$ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Amerisink | Square Undermount Sink | AS240A | 19.5" x 14.25"x5.5” | White (020) | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Amerisink | Square Undermount Sink | AS225 | 20" x 15"x7.5” | White (020) | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Advanta | Shaker Style | 34" high vanities plywood boxes at sinks, MDF boxes elsewhere | White | Full overlay doors non-soft close door hinge/soft-close drawers | $$ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Luxor | Granite | 2 cm | White Wave | Provide with eased edges (top and bottom) at all exposed ends/corners. | $$ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | Amerisink | Kitchen Sink - Undermount | AS1129 | 31"x18"x9" depth | Stainless | 18 ga oversize/ depth single bowl | $ | RENDER, HARMON |
|
| Kitchen | Amerisink | 18 ga oversize/ depth single bowl | AS1126 | 31”x18”x5” | Stainless | 18 ga oversize/ADA depth single bowl. | $ | RENDER, HARMON, NOVEL |
|
| Kitchen | Luxor | Granite | 3 cm | White Wave | Provide with eased edges (top and bottom) at all exposed ends/corners. | $$ | RENDER, HARMON |
|
|
| Units | Richelieu | Door/Drawer pull. | BP10746195 | 6" | Brushed Nickel | Bar pull. | $$ | RENDER, HARMON |
|
| Advanta Kitchen & Island Thermofoil Shaker Cabinets White | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Advanta |
| Description | Mayfair FOL Thermofoil |
| Model # | |
| Size | Base Cabinets |
| Color/Finish | White |
| Notes | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. Trash pull-outs require full extension soft-close slides also. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink ADA Vanity Sink | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Amerisink |
| Description | Square Undermount Sink |
| Model # | AS240A |
| Size | 19.5" x 14.25"x5.5” |
| Color/Finish | White (020) |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink Bathroom Sink | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Amerisink |
| Description | Square Undermount Sink |
| Model # | AS225 |
| Size | 20" x 15"x7.5” |
| Color/Finish | White (020) |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Advanta Bathroom Thermofoil Shaker Vanity | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Advanta |
| Description | Shaker Style |
| Model # | |
| Size | 34" high vanities plywood boxes at sinks, MDF boxes elsewhere |
| Color/Finish | White |
| Notes | Full overlay doors non-soft close door hinge/soft-close drawers |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Bathroom Countertops | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Luxor |
| Description | Granite |
| Model # | |
| Size | 2 cm |
| Color/Finish | White Wave |
| Notes | Provide with eased edges (top and bottom) at all exposed ends/corners. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

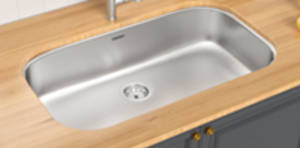

| Amerisink Rounded Kitchen Sink | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Amerisink |
| Description | Kitchen Sink - Undermount |
| Model # | AS1129 |
| Size | 31"x18"x9" depth |
| Color/Finish | Stainless |
| Notes | 18 ga oversize/ depth single bowl |
| Price Point | $ |
| Product Type | RENDER, HARMON |

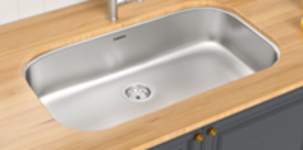

| Amerisink Rounded ADA Kitchen Sink | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Amerisink |
| Description | 18 ga oversize/ depth single bowl |
| Model # | AS1126 |
| Size | 31”x18”x5” |
| Color/Finish | Stainless |
| Notes | 18 ga oversize/ADA depth single bowl. |
| Price Point | $ |
| Product Type | RENDER, HARMON, NOVEL |

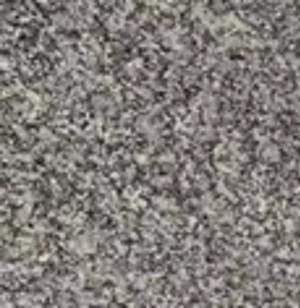

| Kitchen Countertop | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Luxor |
| Description | Granite |
| Model # | |
| Size | 3 cm |
| Color/Finish | White Wave |
| Notes | Provide with eased edges (top and bottom) at all exposed ends/corners. |
| Price Point | $$ |
| Product Type | RENDER, HARMON |

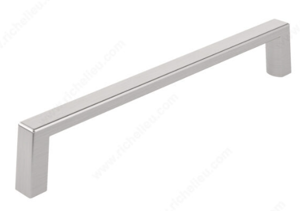

| Richelieu Pull BN | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Richelieu |
| Description | Door/Drawer pull. |
| Model # | BP10746195 |
| Size | 6" |
| Color/Finish | Brushed Nickel |
| Notes | Bar pull. |
| Price Point | $$ |
| Product Type | RENDER, HARMON |
Doors & Hardware
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Unit Doors | Taylor | 1-Panel metal skinned door | 1 Panel Flat Shaker with ADA Embossment Option | 3'-0" x 6'-8" | Primed | Provide hollow metal frame that will allow installation of wood casings on doorframe per drawings. (PROVIDE ALTERNATE PRICE FOR 7’-0” DOOR) | $$ | RENDER |
|
| Unit Doors | AFCO | ADA Compliant Latching Panic Saddle Threshold | A-207BS | Match width of door. | Matte Black | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Doors | AFCO | ADA Compliant Latching Panic Saddle Threshold | A-758TB | To match width of door. | Brushed Aluminum Finish | $ | RENDER, HARMON |
|
|
| Units | Deltana | Radius corner door hinge | S35R5BK15 | 3.5"x3.5" | Brushed Nickel | All hinges to match door hardware (Do Not Paint) | $ | RENDER, HARMON |
|
| Units | Deltana | Standard HD Spring Hinge | DSH4R515 | Brushed Nickel | Hinge must be UL Rated Heavy Duty hinge for rated openings. All hinges to match door hardware (Do Not Paint) | $ | RENDER, HARMON |
|
|
| Units | Deltana | Standard Steel Hinge | S44R5 | 4"x4" | Brushed Nickel | All hinges to match door hardware (Do Not Paint) | $ | RENDER, HARMON |
|
| Units | Door Saver | Hinge pin stop. | Satin Nickel | Provide at doors where base door stop cannot be provided. | $ | RENDER, HARMON |
|
||
| Units | Ives | Door Viewer | 698 | Satin Nickel | Provide at entry doors per Architectural drawings | $ | RENDER, HARMON |
|
|
| Units | Ives | Flexible Door Stop | 63FLSN | 3" | Satin Nickel | Provide at wall base where space available | $ | RENDER, HARMON |
|
| Units | Kwikset | Daylon Lever | Lever model number dependent on function | Satin Nickel | Passage Set with Privacy Locks on Bathroom & Bedroom Doors Aaron Zarle Aaron.Zarle@assaabloy.com (904) 252-9722 | $ | RENDER, HARMON |
|
|
| Unit Balcony Doors | Therma-Tru | Full Lite Flush Steel Patio Door | 3'-0" x 7'-0" | Primed | Tempered Glass if Required by code. Provide 10" bottom panel and glazing stops that can painted any selected colors. | $$ | NOVEL, RENDER, HARMON |
|
|
| Units | Kwikset | 158 Square Deadbolt | Deadbolt model number dependent on function | Satin Nickel | Aaron Zarle Aaron.Zarle@assaabloy.com (904) 252-9722 | $ | RENDER, HARMON |
|
|
| Unit Doors | Masonite | 2-Panel, Craftsman / Molded Profile, Hollow Core | 2-Panel, Craftsman | 6'-8" | Primed | Provide with 10" bottom panel. | $ | NOVEL, RENDER, HARMON |
|

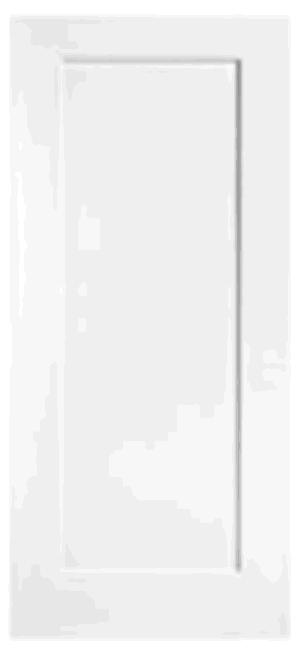

| Taylor Unit Entry Door | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | Taylor |
| Description | 1-Panel metal skinned door |
| Model # | 1 Panel Flat Shaker with ADA Embossment Option |
| Size | 3'-0" x 6'-8" |
| Color/Finish | Primed |
| Notes | Provide hollow metal frame that will allow installation of wood casings on doorframe per drawings. (PROVIDE ALTERNATE PRICE FOR 7’-0” DOOR) |
| Price Point | $$ |
| Product Type | RENDER |

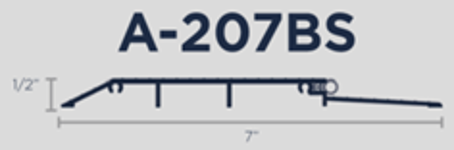

| AFCO Balcony Door Threshold | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | AFCO |
| Description | ADA Compliant Latching Panic Saddle Threshold |
| Model # | A-207BS |
| Size | Match width of door. |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

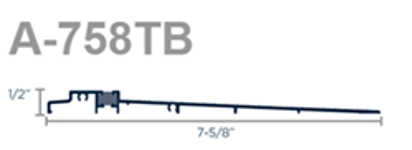

| AFCO Entry Door Threshold | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | AFCO |
| Description | ADA Compliant Latching Panic Saddle Threshold |
| Model # | A-758TB |
| Size | To match width of door. |
| Color/Finish | Brushed Aluminum Finish |
| Notes | |
| Price Point | $ |
| Product Type | RENDER, HARMON |

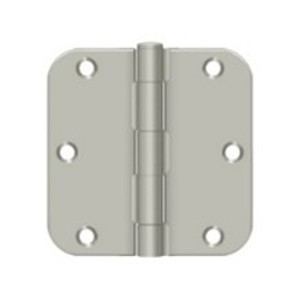

| Deltana Interior Door Hinge BN | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Deltana |
| Description | Radius corner door hinge |
| Model # | S35R5BK15 |
| Size | 3.5"x3.5" |
| Color/Finish | Brushed Nickel |
| Notes | All hinges to match door hardware (Do Not Paint) |
| Price Point | $ |
| Product Type | RENDER, HARMON |

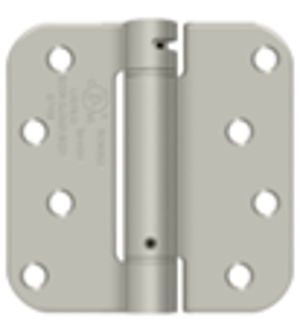

| Deltana Spring Hinge BN | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Deltana |
| Description | Standard HD Spring Hinge |
| Model # | DSH4R515 |
| Size | |
| Color/Finish | Brushed Nickel |
| Notes | Hinge must be UL Rated Heavy Duty hinge for rated openings. All hinges to match door hardware (Do Not Paint) |
| Price Point | $ |
| Product Type | RENDER, HARMON |

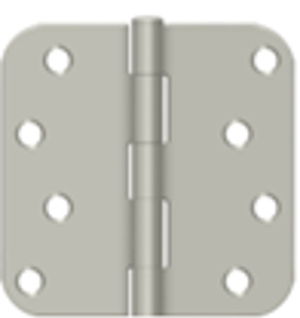

| Deltana Standard Exterior Hinge BN | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Deltana |
| Description | Standard Steel Hinge |
| Model # | S44R5 |
| Size | 4"x4" |
| Color/Finish | Brushed Nickel |
| Notes | All hinges to match door hardware (Do Not Paint) |
| Price Point | $ |
| Product Type | RENDER, HARMON |

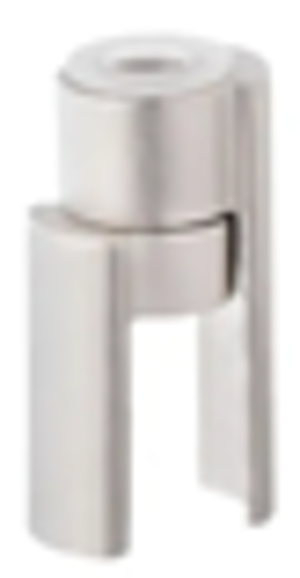

| Door Stop SN | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Door Saver |
| Description | Hinge pin stop. |
| Model # | |
| Size | |
| Color/Finish | Satin Nickel |
| Notes | Provide at doors where base door stop cannot be provided. |
| Price Point | $ |
| Product Type | RENDER, HARMON |

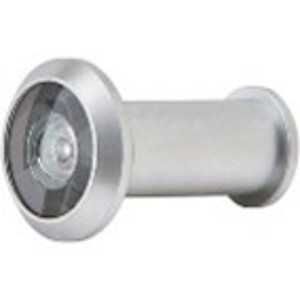

| Ives Door Viewer SN | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Ives |
| Description | Door Viewer |
| Model # | 698 |
| Size | |
| Color/Finish | Satin Nickel |
| Notes | Provide at entry doors per Architectural drawings |
| Price Point | $ |
| Product Type | RENDER, HARMON |

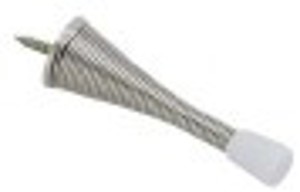

| Ives Flexible Door Stop SN | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Ives |
| Description | Flexible Door Stop |
| Model # | 63FLSN |
| Size | 3" |
| Color/Finish | Satin Nickel |
| Notes | Provide at wall base where space available |
| Price Point | $ |
| Product Type | RENDER, HARMON |

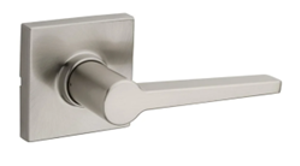

| Kwikset Daylon Lever SN | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Kwikset |
| Description | Daylon Lever |
| Model # | Lever model number dependent on function |
| Size | |
| Color/Finish | Satin Nickel |
| Notes | Passage Set with Privacy Locks on Bathroom & Bedroom Doors Aaron Zarle Aaron.Zarle@assaabloy.com (904) 252-9722 |
| Price Point | $ |
| Product Type | RENDER, HARMON |

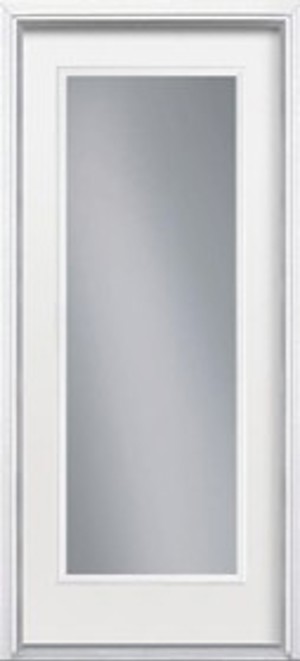

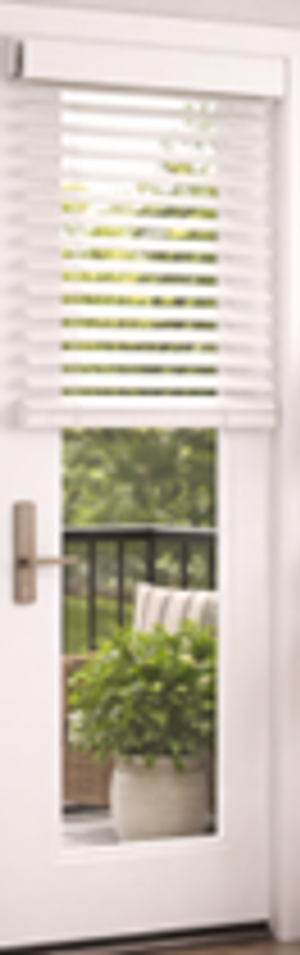

| Therma Tru 7' Balcony Door | |
|---|---|
|
|
| Location | Unit Balcony Doors |
| Manufacturer | Therma-Tru |
| Description | |
| Model # | Full Lite Flush Steel Patio Door |
| Size | 3'-0" x 7'-0" |
| Color/Finish | Primed |
| Notes | Tempered Glass if Required by code. Provide 10" bottom panel and glazing stops that can painted any selected colors. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

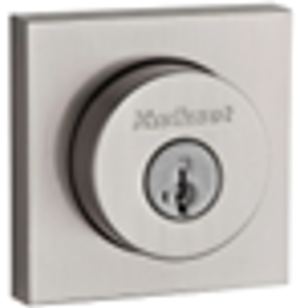

| Kwikset Square Deadbolt SN | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Kwikset |
| Description | 158 Square Deadbolt |
| Model # | Deadbolt model number dependent on function |
| Size | |
| Color/Finish | Satin Nickel |
| Notes | Aaron Zarle Aaron.Zarle@assaabloy.com (904) 252-9722 |
| Price Point | $ |
| Product Type | RENDER, HARMON |

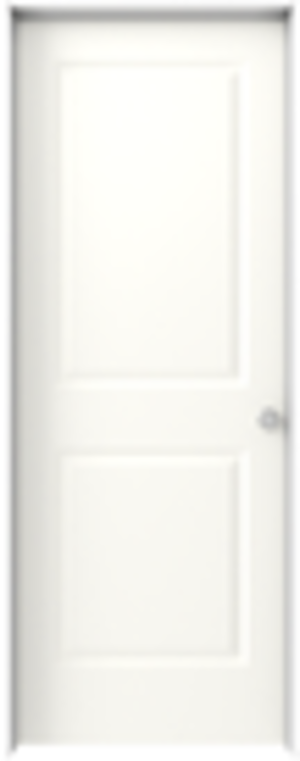

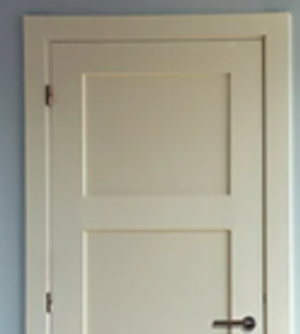

| Unit Interior Door Two Panel 6'-8" Molded Profile | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | Masonite |
| Description | 2-Panel, Craftsman / Molded Profile, Hollow Core |
| Model # | 2-Panel, Craftsman |
| Size | 6'-8" |
| Color/Finish | Primed |
| Notes | Provide with 10" bottom panel. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
Flooring & Hard Surfaces
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Bathroom Flooring | Cobalt Katanga | 12 mil LVP | K##-801 | 7"x48" | Myrtle | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 | $ | NOVEL, RENDER, HARMON |
|
| Kitchen | Daltile | 3" x 6" Ceramic Wall Tile | Color Wheel Classic | 3" x 6" | 0790 Matte Artic White | Herringbone Pattern with 1/16" joints | $ | NOVEL, RENDER, HARMON |
|
| Units | Cobalt Katanga | 12 mil LVP | 7”x48” | Myrtle | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 | $ | NOVEL, RENDER, HARMON |
|
|
| Units | Cobalt | LVT Matching transition strip | Lengths as shown on drawings | Match LVT Finish | Transition strip from carpet to vinyl flooring. | $ | RENDER, HARMON |
|
|
| Bedroom/ Closet Flooring | Mohawk | Carpet | Frequencies PM560 | Stony Glade 749 | Provide with 6# carpet padding. | $ | RENDER, HARMON |
|
| Cobalt Bathroom Flooring Myrtle | |
|---|---|
|
|
| Location | Bathroom Flooring |
| Manufacturer | Cobalt Katanga |
| Description | 12 mil LVP |
| Model # | K##-801 |
| Size | 7"x48" |
| Color/Finish | Myrtle |
| Notes | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Daltile Kitchen Backsplash AW | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Daltile |
| Description | 3" x 6" Ceramic Wall Tile |
| Model # | Color Wheel Classic |
| Size | 3" x 6" |
| Color/Finish | 0790 Matte Artic White |
| Notes | Herringbone Pattern with 1/16" joints |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Cobalt Flooring Myrtle | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Cobalt Katanga |
| Description | 12 mil LVP |
| Model # | |
| Size | 7”x48” |
| Color/Finish | Myrtle |
| Notes | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

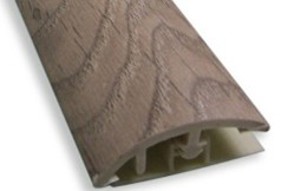

| Flooring Transition Strip | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Cobalt |
| Description | LVT Matching transition strip |
| Model # | |
| Size | Lengths as shown on drawings |
| Color/Finish | Match LVT Finish |
| Notes | Transition strip from carpet to vinyl flooring. |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Mohawk Frequencies | |
|---|---|
|
|
| Location | Bedroom/ Closet Flooring |
| Manufacturer | Mohawk |
| Description | Carpet |
| Model # | Frequencies PM560 |
| Size | |
| Color/Finish | Stony Glade 749 |
| Notes | Provide with 6# carpet padding. |
| Price Point | $ |
| Product Type | RENDER, HARMON |
Interior Paint Colors
| Location | Manufacturer | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|
| Ceilings | Sherwin Williams | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, RENDER, HARMON |
|
| Unit Bath Walls and Ceilings | Sherwin Williams | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. | Eg-Shel Finish August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | NOVEL, RENDER, HARMON |
|
| Unit Doors | Sherwin Williams | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. | Eg-Shel (Tone 2) August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | RENDER |
|
| Unit Doors | Sherwin Williams | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. | Eg-Shel Finish August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | RENDER |
|
| Unit Trim | Sherwin Williams | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. | Eg-Shel Finish. August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | RENDER |
|
| Unit Walls | Sherwin Williams | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. | Flat paint finish August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, RENDER, HARMON |
|
| Unit Ceilings Extra White | |
|---|---|
|
|
| Location | Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. |
| Notes | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Bathroom Extra White | |
|---|---|
|
|
|
| Location | Unit Bath Walls and Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. |
| Notes | Eg-Shel Finish August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Entry Door & Balcony Door (Interior Side) (RENDER) - Extra White | |
|---|---|
|
|
|
| Location | Unit Doors |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. |
| Notes | Eg-Shel (Tone 2) August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | RENDER |
| Unit Interior Doors (RENDER) - Extra White | |
|---|---|
|
|
|
| Location | Unit Doors |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. |
| Notes | Eg-Shel Finish August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | RENDER |
| Unit Trim (RENDER) Extra White | |
|---|---|
|
|
|
| Location | Unit Trim |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. |
| Notes | Eg-Shel Finish. August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | RENDER |
| Unit Walls Extra White | |
|---|---|
|
|
|
| Location | Unit Walls |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. |
| Notes | Flat paint finish August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
Lighting Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Units | GMLighting | 5” 3000K LED Flush Mount | GM-RND5-30-WH | 5” | Round, Matte White Finish | $ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | GMLighting | 5” 3000K LED Flush Mount | GM-RND5-30-WH | 5” | Round, Matte White Finish | See Plans for Locations. Centered between island and counter | $ | NOVEL, RENDER, HARMON |
|
| Units | GMLighting | 8” 3000K LED Flush Mount | GM-RND8-30-WH | 8” | Round, Matte White Finish | See Plans for Locations. | $ | NOVEL, RENDER, HARMON |
|
| Patio | Maxim Lighting | 86401BK | 4”x6.25”x 7.25” | Sconce, Architectural Black Finish | Wet Label / Rated in Balcony Areas | $ | NOVEL, RENDER, HARMON |
|
|
| Ceiling fan / light combo | Westinghouse | Comet | 7233600 | 52" | White | Provide with LED lamps | $ | NOVEL, RENDER, HARMON |
|
| Units | Braeburn | 5-2 Day programmable | 2220NC | White | $ | NOVEL, RENDER, HARMON |
|
||

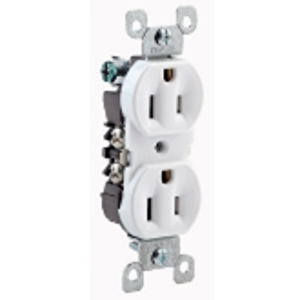

| Units | Leviton | Standard outlet. | 12650W | White | $ | RENDER, HARMON |
|
||

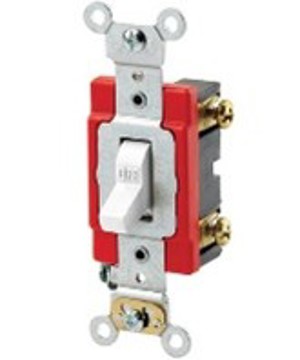

| Units | Leviton | Standard switch. | A1221 | White | Coordinate Single Pole/3-Way Switches as shown on documents | $ | RENDER, HARMON |
|
|

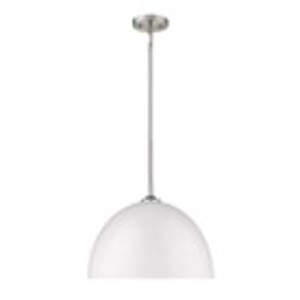

| Kitchen | Golden Lighting | Single light pendant. | 6956-L PW-WHT | 16”W x HGT TBD | White exterior finish brushed rod finish | See Plans for Locations. Brushed Chrome finish on support rod. Lights centered over island width. Provide with LED 3000K bulbs | $ | RENDER, HARMON |
|

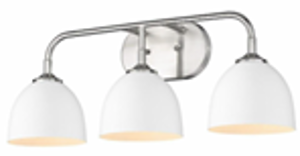

| Bathroom | Golden Lighting | Zoey 3 Light Bath Vanity | 6956-BA3 PW-WHT - Pewter with Matte White shades | 24”x9.5”x 7.25” | Pewter with Matte White shades | Center over mirror. Furnish and install 400 lumen 3000K LED Edison Bulb. | $ | RENDER, HARMON |
|
| GMLighting Closet Puck Light 5" 3000K | |
|---|---|
|
|
| Location | Units |
| Manufacturer | GMLighting |
| Description | 5” 3000K LED Flush Mount |
| Model # | GM-RND5-30-WH |
| Size | 5” |
| Color/Finish | Round, Matte White Finish |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| GMLighting Kitchen 5" | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | GMLighting |
| Description | 5” 3000K LED Flush Mount |
| Model # | GM-RND5-30-WH |
| Size | 5” |
| Color/Finish | Round, Matte White Finish |
| Notes | See Plans for Locations. Centered between island and counter |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| GMLighting LR Puck Light 8" | |
|---|---|
|
|
| Location | Units |
| Manufacturer | GMLighting |
| Description | 8” 3000K LED Flush Mount |
| Model # | GM-RND8-30-WH |
| Size | 8” |
| Color/Finish | Round, Matte White Finish |
| Notes | See Plans for Locations. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Maxim Lighting Sconce MB | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | Maxim Lighting |
| Description | |
| Model # | 86401BK |
| Size | 4”x6.25”x 7.25” |
| Color/Finish | Sconce, Architectural Black Finish |
| Notes | Wet Label / Rated in Balcony Areas |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Westinghouse Ceiling Fan 52" White | |
|---|---|
|
|
| Location | Ceiling fan / light combo |
| Manufacturer | Westinghouse |
| Description | Comet |
| Model # | 7233600 |
| Size | 52" |
| Color/Finish | White |
| Notes | Provide with LED lamps |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Braeburn Programmable Thermostat | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Braeburn |
| Description | 5-2 Day programmable |
| Model # | 2220NC |
| Size | |
| Color/Finish | White |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Standard Outlet | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Standard outlet. |
| Model # | 12650W |
| Size | |
| Color/Finish | White |
| Notes | |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Standard Switch | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Standard switch. |
| Model # | A1221 |
| Size | |
| Color/Finish | White |
| Notes | Coordinate Single Pole/3-Way Switches as shown on documents |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Golden Lighting Pendant BC (1) | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Golden Lighting |
| Description | Single light pendant. |
| Model # | 6956-L PW-WHT |
| Size | 16”W x HGT TBD |
| Color/Finish | White exterior finish brushed rod finish |
| Notes | See Plans for Locations. Brushed Chrome finish on support rod. Lights centered over island width. Provide with LED 3000K bulbs |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Golden Bathroom Light BC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Golden Lighting |
| Description | Zoey 3 Light Bath Vanity |
| Model # | 6956-BA3 PW-WHT - Pewter with Matte White shades |
| Size | 24”x9.5”x 7.25” |
| Color/Finish | Pewter with Matte White shades |
| Notes | Center over mirror. Furnish and install 400 lumen 3000K LED Edison Bulb. |
| Price Point | $ |
| Product Type | RENDER, HARMON |
Moulding Trimwork
| Location | Manufacturer | Description | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|
| Units | Door trim | 1"x3" sides. 1"x3" header | $ | NOVEL, RENDER, HARMON |
|
|||
| Units | Organized Living | Closet Shelving | Wire and Rod Shelving | White | Provide brackets and wall anchors as needed to support shelves. Provide single long hang and double short hang shelving per drawings with continuous hanger rods on each shelf. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 | $ | RENDER, HARMON |
|
| Units | Organized Living | Close mesh wire shelving. | 1.5” high x 16” deep close mesh wire shelving | White | Provide brackets and wall anchors as needed to support shelves. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 | $ | RENDER, HARMON, NOVEL |
|
| Units | MDF Wall Base. | 1"x4" | Primed | Contemporary square profile. | $ | RENDER, HARMON |
|
|
| Units | Window Apron & Stool | 4" apron 8” sill | FJP - Contemporary square profile with eased edges. Apron to be square cut at each end. | $$ | NOVEL, RENDER, HARMON |
|
| Door Casing Trim 1"x3" sides. 1"x3" header MDF | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Door trim |
| Size | 1"x3" sides. 1"x3" header |
| Color/Finish | |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

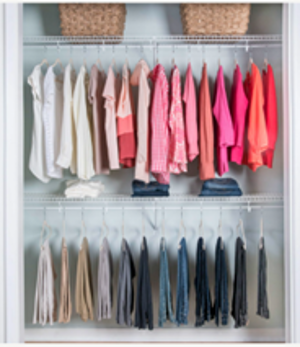

| Organized Living Closet Wire Shelving | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Organized Living |
| Description | Closet Shelving |
| Size | Wire and Rod Shelving |
| Color/Finish | White |
| Notes | Provide brackets and wall anchors as needed to support shelves. Provide single long hang and double short hang shelving per drawings with continuous hanger rods on each shelf. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 |
| Price Point | $ |
| Product Type | RENDER, HARMON |

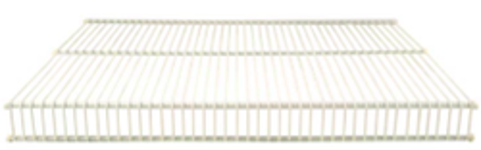

| Organized Living Close Mesh Wire Shelving | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Organized Living |
| Description | Close mesh wire shelving. |
| Size | 1.5” high x 16” deep close mesh wire shelving |
| Color/Finish | White |
| Notes | Provide brackets and wall anchors as needed to support shelves. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 |
| Price Point | $ |
| Product Type | RENDER, HARMON, NOVEL |

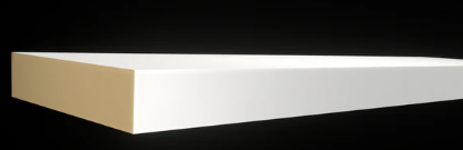

| Wall Base 1x4 MDF | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | MDF Wall Base. |
| Size | 1"x4" |
| Color/Finish | Primed |
| Notes | Contemporary square profile. |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Window Apron & Sill 4", 8" Paint Grade Pine | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Window Apron & Stool |
| Size | 4" apron 8” sill |
| Color/Finish | |
| Notes | FJP - Contemporary square profile with eased edges. Apron to be square cut at each end. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
Plumbing Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Bathroom | Pfister | ADA Handheld Shower with Slide Bar (or equivalent) | LG16-500K | Brushed Nickel | 1.75 GPM hand held shower head. Provide in ADA Units Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | RENDER, HARMON |
|
|
| Bathroom | Pfister | McAllen Single Control Lavatory Faucet | LG42-MCAOGS | Brushed Nickel | Provide with 1.2 GPM aerator. Single Hole Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | RENDER, HARMON |
|
|
| Bathroom | Pfister | Contempra Shower Diverter | 016-NC1K | Brushed Nickel | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | RENDER, HARMON |
|
|
| Kitchen | Pfister | Pfirst Series Pull Down Kitchen Faucet | G529-PF2C | Stainless Steel | Provide with 1.5 GPM aerator. Single hold with pull down spray Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | RENDER, HARMON |
|
|
| Bathroom | Pfister | Pfirst Series Tub and Shower Trim | R89-070K w/ LJ15-070K showerhead Brushed Nickel | Brushed Nickel | 1-Handle, Tub & Shower Combo. Provide with 1.5 GPM shower head Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | RENDER, HARMON |
|
|
| Bathroom | Pfister | Universal Mixing Valve | JX8-340A | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | NOVEL, RENDER, HARMON |
|
| Pfister ADA Hand Held Shower BN | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | ADA Handheld Shower with Slide Bar (or equivalent) |
| Model # | LG16-500K |
| Size | |
| Color/Finish | Brushed Nickel |
| Notes | 1.75 GPM hand held shower head. Provide in ADA Units Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | RENDER, HARMON |

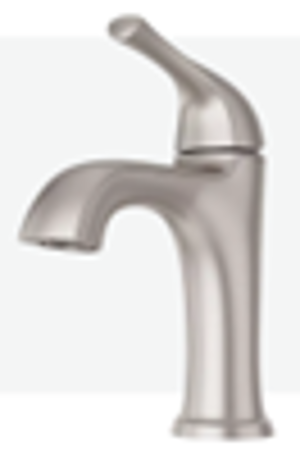

| Pfister Bathroom McAllen BN | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | McAllen Single Control Lavatory Faucet |
| Model # | LG42-MCAOGS |
| Size | |
| Color/Finish | Brushed Nickel |
| Notes | Provide with 1.2 GPM aerator. Single Hole Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | RENDER, HARMON |

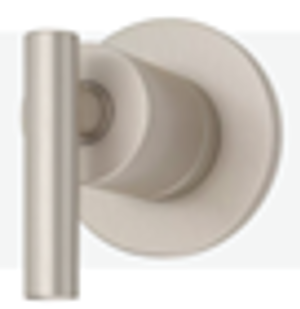

| Pfister Contempra Diverter Valve BN | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Contempra Shower Diverter |
| Model # | 016-NC1K |
| Size | |
| Color/Finish | Brushed Nickel |
| Notes | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | RENDER, HARMON |

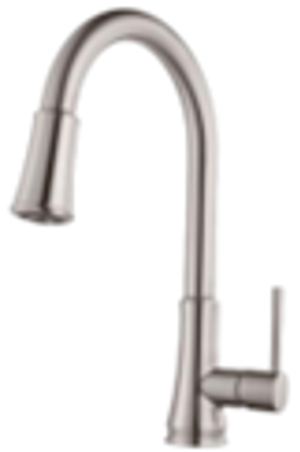

| Pfister Kitchen Sink Stainless | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Pfister |
| Description | Pfirst Series Pull Down Kitchen Faucet |
| Model # | G529-PF2C |
| Size | |
| Color/Finish | Stainless Steel |
| Notes | Provide with 1.5 GPM aerator. Single hold with pull down spray Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | RENDER, HARMON |

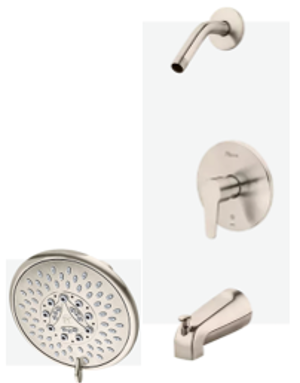

| Pfister Tub Shower BN | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Pfirst Series Tub and Shower Trim |
| Model # | R89-070K w/ LJ15-070K showerhead Brushed Nickel |
| Size | |
| Color/Finish | Brushed Nickel |
| Notes | 1-Handle, Tub & Shower Combo. Provide with 1.5 GPM shower head Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | RENDER, HARMON |

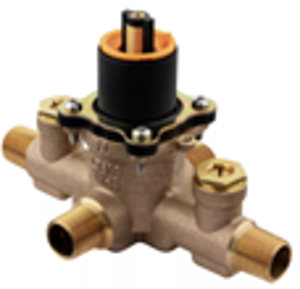

| Pfister Mixing Valve | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Universal Mixing Valve |
| Model # | JX8-340A |
| Size | |
| Color/Finish | |
| Notes | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
Window Treatments
| Location | Manufacturer | Description | Model # | Size | Color/Material | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Units | Marietta Drapery | 2" Faux Woods Blind | 2” MDC- Fauxwood, | Per drawings. | Smooth White | Inside mount - smooth finish - contemporary valence option; Cordless Option. | $ | NOVEL, RENDER, HARMON |
|
| Unit Doors | Marietta Drapery | 2" faux wood blinds. | 2” MDC- Fauxwood, | Per drawings. | Smooth White | Fastened to door by metal clips - smooth finish – contemporary valence option; notch blinds around door hardware as needed. Cordless Option | $$ | NOVEL, RENDER, HARMON |
|

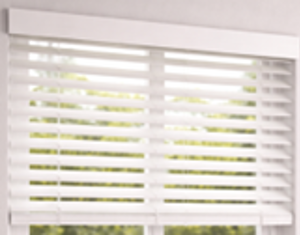

| Unit Windows | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Marietta Drapery |
| Description | 2" Faux Woods Blind |
| Model # | 2” MDC- Fauxwood, |
| Size | Per drawings. |
| Color/Material | Smooth White |
| Notes | Inside mount - smooth finish - contemporary valence option; Cordless Option. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Balcony Doors | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | Marietta Drapery |
| Description | 2" faux wood blinds. |
| Model # | 2” MDC- Fauxwood, |
| Size | Per drawings. |
| Color/Material | Smooth White |
| Notes | Fastened to door by metal clips - smooth finish – contemporary valence option; notch blinds around door hardware as needed. Cordless Option |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
