Appliances
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Whirlpool | Energy Star Dishwasher with Front Controls | WDF331PAMS | 23-7/8”W x 34-1/2”H x 24-1/2”D | Stainless | Front Controls Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | Electric Range | WFE3530RS | 29-7/8”W x 47-7/8”H x 27-3/4”D | Stainless with glass top | Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | 1.6 cu. ft. Over-the-range Microwave | WMH31017HS | 30”W x 17-3/8”H x 15-7/8”D | Stainless | Over-the-range, Recirculating vent kit provided Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Units | Whirlpool | 3.9 cu. ft. Washer | WTW4855HW | 27.5”W x 42.25”H x 28”D | White | Top-Load Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Units | Whirlpool | 7.0 cu. ft. Dryer | WED4850HW | 29”W x 43”H x 28.25”D | White | Front-Load Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | Top Freezer Refrigerator 33" | WRT311FZDM | 32-3/4”W x 66-1/4”H x 32-7/8”D | Stainless | Provide with Grey refrigerator box and optional icemaker. Provide valence over top of refrigerator with 1-1/2” to top of refrigerator Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | ADA Dishwasher | WDF550SAHS | 23 ½” W x 32 ½” H x 24” D | Stainless | Front Controls Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Units | Whirlpool | 4.3 cu. ft. Washer | WFW560CHW | 27”W x 38-3/4”H x 31-9/16”D | White | Front-load with pedestal kit as needed, Energy Star Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $$ | RENDER, HARMON |
|
| Kitchen | Whirlpool | Under Cabinet Range Hood with LED Lighting | UXT4130ADS | 29-15/16”W x 4-15/16” H x 17-1/4” D | Stainless | Provide low switch control or remote for accessibility requirements Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Kitchen | Whirlpool | Slide-in, Electric Range | WEE515S0LS | 29-7/8”W x 36”H x 28-15/16”D | Stainless with glass top | Slide-in, Electric Range. Turn edge of counter up to cap exposed edges. Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $$ | RENDER, HARMON |
|
| Kitchen | Whirlpool | 1.6 cu. ft. Countertop Microwave | WCM30516HZ | 21-3/4”W x 13”H x 17-1/4”D | Stainless | Countertop Style Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Units | Whirlpool | 7.4 cu. ft. Dryer | WED5620HW | 27”W x 38-3/4”H x 31”D | White | Front-load with pedestal kit as needed. Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 | $ | RENDER, HARMON |
|
| Whirlpool Energy Star Front Control DW | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Energy Star Dishwasher with Front Controls |
| Model # | WDF331PAMS |
| Size | 23-7/8”W x 34-1/2”H x 24-1/2”D |
| Color/Finish | Stainless |
| Notes | Front Controls Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Tombstone Range | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Electric Range |
| Model # | WFE3530RS |
| Size | 29-7/8”W x 47-7/8”H x 27-3/4”D |
| Color/Finish | Stainless with glass top |
| Notes | Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool 1.6 CF OTR Microwave | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | 1.6 cu. ft. Over-the-range Microwave |
| Model # | WMH31017HS |
| Size | 30”W x 17-3/8”H x 15-7/8”D |
| Color/Finish | Stainless |
| Notes | Over-the-range, Recirculating vent kit provided Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Top Load Washer | |
|---|---|
|
|
|
| Location | Units |
| Manufacturer | Whirlpool |
| Description | 3.9 cu. ft. Washer |
| Model # | WTW4855HW |
| Size | 27.5”W x 42.25”H x 28”D |
| Color/Finish | White |
| Notes | Top-Load Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Front Load Dryer | |
|---|---|
|
|
|
| Location | Units |
| Manufacturer | Whirlpool |
| Description | 7.0 cu. ft. Dryer |
| Model # | WED4850HW |
| Size | 29”W x 43”H x 28.25”D |
| Color/Finish | White |
| Notes | Front-Load Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool ADA Top Freezer Refrigerator | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Top Freezer Refrigerator 33" |
| Model # | WRT311FZDM |
| Size | 32-3/4”W x 66-1/4”H x 32-7/8”D |
| Color/Finish | Stainless |
| Notes | Provide with Grey refrigerator box and optional icemaker. Provide valence over top of refrigerator with 1-1/2” to top of refrigerator Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool ADA Dishwasher | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | ADA Dishwasher |
| Model # | WDF550SAHS |
| Size | 23 ½” W x 32 ½” H x 24” D |
| Color/Finish | Stainless |
| Notes | Front Controls Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Energy Star Front Load ADA Washer | |
|---|---|
|
|
|
| Location | Units |
| Manufacturer | Whirlpool |
| Description | 4.3 cu. ft. Washer |
| Model # | WFW560CHW |
| Size | 27”W x 38-3/4”H x 31-9/16”D |
| Color/Finish | White |
| Notes | Front-load with pedestal kit as needed, Energy Star Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $$ |
| Product Type | RENDER, HARMON |
| Whirlpool Range Hood | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Under Cabinet Range Hood with LED Lighting |
| Model # | UXT4130ADS |
| Size | 29-15/16”W x 4-15/16” H x 17-1/4” D |
| Color/Finish | Stainless |
| Notes | Provide low switch control or remote for accessibility requirements Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Slide In ADA Range | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | Slide-in, Electric Range |
| Model # | WEE515S0LS |
| Size | 29-7/8”W x 36”H x 28-15/16”D |
| Color/Finish | Stainless with glass top |
| Notes | Slide-in, Electric Range. Turn edge of counter up to cap exposed edges. Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $$ |
| Product Type | RENDER, HARMON |
| Whirlpool Countertop ADA Microwave | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Whirlpool |
| Description | 1.6 cu. ft. Countertop Microwave |
| Model # | WCM30516HZ |
| Size | 21-3/4”W x 13”H x 17-1/4”D |
| Color/Finish | Stainless |
| Notes | Countertop Style Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Whirlpool Front Load ADA Dryer | |
|---|---|
|
|
|
| Location | Units |
| Manufacturer | Whirlpool |
| Description | 7.4 cu. ft. Dryer |
| Model # | WED5620HW |
| Size | 27”W x 38-3/4”H x 31”D |
| Color/Finish | White |
| Notes | Front-load with pedestal kit as needed. Jamie Stroud jamie_stroud@whirlpool.com (910) 616-0183 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
Bath Accessories
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Bathroom | Pfister | Modern Surface Paper Holder | BPH-PFM0C | 9-3/8" x 2- 3/8" | Polished Chrome | $$ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Pfister | Modern Robe Hook | BRH-PFM0C | 3-3/4" x 2 - 3/4" | Polished Chrome | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Pfister | Modern Towel Bar | BTB - PFM2C | 25-3/4"x2-1/8" | Polished Chrome | $$ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Precision Frameworks | Rectangular Metal Framed Mirror | FR3040BLK | 30"x40" | Matte Black | Separate mirrors for each sink (one for single sink, two for double sink) | $$ | NOVEL, RENDER, HARMON |
|
| Bathroom | Pamex | Curved Shower Rod | Pamex BSR-573/673 | 60" | Polished Chrome | Only in Tub/shower combo locations | $ | NOVEL, HARMON, RENDER |
|
| Pfister Toilet Paper Holder PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Modern Surface Paper Holder |
| Model # | BPH-PFM0C |
| Size | 9-3/8" x 2- 3/8" |
| Color/Finish | Polished Chrome |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Pfister Robe Hook PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Modern Robe Hook |
| Model # | BRH-PFM0C |
| Size | 3-3/4" x 2 - 3/4" |
| Color/Finish | Polished Chrome |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Pfister 24" Towel Bar PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Modern Towel Bar |
| Model # | BTB - PFM2C |
| Size | 25-3/4"x2-1/8" |
| Color/Finish | Polished Chrome |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |

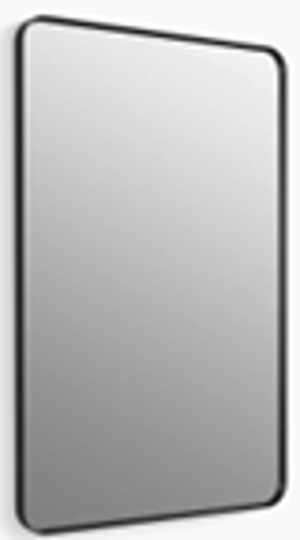

| Precision Frameworks Thin Frame Vanity Mirror MB | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Precision Frameworks |
| Description | Rectangular Metal Framed Mirror |
| Model # | FR3040BLK |
| Size | 30"x40" |
| Color/Finish | Matte Black |
| Notes | Separate mirrors for each sink (one for single sink, two for double sink) |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Pamex Curved Shower Rod PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pamex |
| Description | Curved Shower Rod |
| Model # | Pamex BSR-573/673 |
| Size | 60" |
| Color/Finish | Polished Chrome |
| Notes | Only in Tub/shower combo locations |
| Price Point | $ |
| Product Type | NOVEL, HARMON, RENDER |
Cabinets & Countertops
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Advanta | Mayfair FOL Thermofoil | Base Cabinets | White | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. Trash pull-outs require full extension soft-close slides also. | $$ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Advanta | Shaker Style | 34" high vanities plywood boxes at sinks, MDF boxes elsewhere | White | Full overlay doors non-soft close door hinge/soft-close drawers | $$ | NOVEL, RENDER, HARMON |
|
|
| Kitchens and Bathrooms | Richelieu | Pull spec - drawer | BP10746900 | Matte Black | Bar Pull | $$ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | Luxor | Granite | 3 cm | White Wave | Provide with eased edges (top and bottom) at all exposed ends/corners. | $$ | RENDER, HARMON |
|
|
| Bathroom | Luxor | Granite | 2 cm | White Wave | Provide with eased edges (top and bottom) at all exposed ends/corners. | $$ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Amerisink | Square Undermount Sink | AS225 | 20" x 15"x7.5” | White (020) | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Amerisink | Square Undermount Sink | AS240A | 19.5" x 14.25"x5.5” | White (020) | $ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | Amerisink | Kitchen Sink - Undermount | AS1129 | 31"x18"x9" depth | Stainless | 18 ga oversize/ depth single bowl | $ | RENDER, HARMON |
|
| Kitchen | Amerisink | 18 ga oversize/ depth single bowl | AS1126 | 31”x18”x5” | Stainless | 18 ga oversize/ADA depth single bowl. | $ | RENDER, HARMON, NOVEL |
|
| Advanta Kitchen & Island Thermofoil Shaker Cabinets White | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Advanta |
| Description | Mayfair FOL Thermofoil |
| Model # | |
| Size | Base Cabinets |
| Color/Finish | White |
| Notes | Full-overlay, valence/filler included around refrigerator and cabinets, leaving 1” max gaps between. Drawers to be wood boxes with full extension, soft-close slides. Trash pull-outs require full extension soft-close slides also. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Advanta Bathroom Thermofoil Shaker Vanity | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Advanta |
| Description | Shaker Style |
| Model # | |
| Size | 34" high vanities plywood boxes at sinks, MDF boxes elsewhere |
| Color/Finish | White |
| Notes | Full overlay doors non-soft close door hinge/soft-close drawers |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Richelieu Cabinet Hardware Pull MB | |
|---|---|
|
|
| Location | Kitchens and Bathrooms |
| Manufacturer | Richelieu |
| Description | Pull spec - drawer |
| Model # | BP10746900 |
| Size | |
| Color/Finish | Matte Black |
| Notes | Bar Pull |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Kitchen Countertop | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Luxor |
| Description | Granite |
| Model # | |
| Size | 3 cm |
| Color/Finish | White Wave |
| Notes | Provide with eased edges (top and bottom) at all exposed ends/corners. |
| Price Point | $$ |
| Product Type | RENDER, HARMON |
| Bathroom Countertops | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Luxor |
| Description | Granite |
| Model # | |
| Size | 2 cm |
| Color/Finish | White Wave |
| Notes | Provide with eased edges (top and bottom) at all exposed ends/corners. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink Bathroom Sink | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Amerisink |
| Description | Square Undermount Sink |
| Model # | AS225 |
| Size | 20" x 15"x7.5” |
| Color/Finish | White (020) |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink ADA Vanity Sink | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Amerisink |
| Description | Square Undermount Sink |
| Model # | AS240A |
| Size | 19.5" x 14.25"x5.5” |
| Color/Finish | White (020) |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Amerisink Rounded Kitchen Sink | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Amerisink |
| Description | Kitchen Sink - Undermount |
| Model # | AS1129 |
| Size | 31"x18"x9" depth |
| Color/Finish | Stainless |
| Notes | 18 ga oversize/ depth single bowl |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Amerisink Rounded ADA Kitchen Sink | |
|---|---|
|
|
|
| Location | Kitchen |
| Manufacturer | Amerisink |
| Description | 18 ga oversize/ depth single bowl |
| Model # | AS1126 |
| Size | 31”x18”x5” |
| Color/Finish | Stainless |
| Notes | 18 ga oversize/ADA depth single bowl. |
| Price Point | $ |
| Product Type | RENDER, HARMON, NOVEL |
Doors & Hardware
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Unit Doors | Taylor | 1-Panel metal skinned door | 1 Panel Flat Shaker with ADA Embossment Option | 3'-0" x 6'-8" | Primed | Provide hollow metal frame that will allow installation of wood casings on doorframe per drawings. (PROVIDE ALTERNATE PRICE FOR 7’-0” DOOR) | $$ | RENDER |
|
| Unit Balcony Doors | Therma-Tru | Full Lite Flush Steel Patio Door | 3'-0" x 7'-0" | Primed | Tempered Glass if Required by code. Provide 10" bottom panel and glazing stops that can painted any selected colors. | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Doors | Masonite | 2-Panel, Craftsman / Molded Profile, Hollow Core | 2-Panel, Craftsman | 6'-8" | Primed | Provide with 10" bottom panel. | $ | NOVEL, RENDER, HARMON |
|
| Unit Doors | AFCO | ADA Compliant Latching Panic Saddle Threshold | A-758TB | To match width of door. | Brushed Aluminum Finish | $ | RENDER, HARMON |
|
|
| Unit Doors | AFCO | ADA Compliant Latching Panic Saddle Threshold | A-207BS | Match width of door. | Matte Black | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Entries | Kwikset | 158 Square Deadbolt | Matte Black | $$ | RENDER, HARMON |
|
|||
| Unit Entries | Kwikset | Daylon Lever | Matte Black | $ | RENDER, HARMON |
|
|||
| Unit Entries | Deltana | Standard HD Spring Hinge | DSH44U1B | 4x4 | All hinges to match door hardware (Do Not Paint) – Matte Black | Hinge must be UL Rated Heavy Duty hinge for rated openings | $$ | NOVEL, RENDER, HARMON |
|
| Unit Entries | Deltana | Standard Steel Hinge | S44U1B-R | 4x4 | All hinges to match door hardware (Do Not Paint) – Matte Black | $$ | NOVEL, RENDER, HARMON |
|
|
| Units | Deltana | S35R5BK1B | 3.5”x3.5” | All hinges to match door hardware (Do Not Paint) – Matte Black | No paintable hinges | $ | NOVEL, RENDER, HARMON |
|
|
| Unit Entries | Ives | Door viewer | Matte Black | $$ | NOVEL, RENDER, HARMON |
|
|||
| Unit Doors Interior | Door Saver | Hinge Pin Stop | DoorSaver3 | Matte Black | Provide at doors where base door stop cannot be provided. | $$ | NOVEL, RENDER, HARMON |
|
|
| Unit Interior | Ives | Spring Door Stop | 63FLBK | 3" | Matte Black | Provide at wall base where space available | $ | NOVEL, RENDER, HARMON |
|
| Taylor Unit Entry Door | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | Taylor |
| Description | 1-Panel metal skinned door |
| Model # | 1 Panel Flat Shaker with ADA Embossment Option |
| Size | 3'-0" x 6'-8" |
| Color/Finish | Primed |
| Notes | Provide hollow metal frame that will allow installation of wood casings on doorframe per drawings. (PROVIDE ALTERNATE PRICE FOR 7’-0” DOOR) |
| Price Point | $$ |
| Product Type | RENDER |
| Therma Tru 7' Balcony Door | |
|---|---|
|
|
| Location | Unit Balcony Doors |
| Manufacturer | Therma-Tru |
| Description | |
| Model # | Full Lite Flush Steel Patio Door |
| Size | 3'-0" x 7'-0" |
| Color/Finish | Primed |
| Notes | Tempered Glass if Required by code. Provide 10" bottom panel and glazing stops that can painted any selected colors. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Interior Door Two Panel 6'-8" Molded Profile | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | Masonite |
| Description | 2-Panel, Craftsman / Molded Profile, Hollow Core |
| Model # | 2-Panel, Craftsman |
| Size | 6'-8" |
| Color/Finish | Primed |
| Notes | Provide with 10" bottom panel. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| AFCO Entry Door Threshold | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | AFCO |
| Description | ADA Compliant Latching Panic Saddle Threshold |
| Model # | A-758TB |
| Size | To match width of door. |
| Color/Finish | Brushed Aluminum Finish |
| Notes | |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| AFCO Balcony Door Threshold | |
|---|---|
|
|
| Location | Unit Doors |
| Manufacturer | AFCO |
| Description | ADA Compliant Latching Panic Saddle Threshold |
| Model # | A-207BS |
| Size | Match width of door. |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Kwikset Deadbolt Square MB | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Kwikset |
| Description | 158 Square Deadbolt |
| Model # | |
| Size | |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | $$ |
| Product Type | RENDER, HARMON |
| Kwikset Door Handle Square Rose MB | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Kwikset |
| Description | Daylon Lever |
| Model # | |
| Size | |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Deltana Entry Door Spring Hinges Square MB | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Deltana |
| Description | Standard HD Spring Hinge |
| Model # | DSH44U1B |
| Size | 4x4 |
| Color/Finish | All hinges to match door hardware (Do Not Paint) – Matte Black |
| Notes | Hinge must be UL Rated Heavy Duty hinge for rated openings |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Deltana Entry Door Standard Hinge MB | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Deltana |
| Description | Standard Steel Hinge |
| Model # | S44U1B-R |
| Size | 4x4 |
| Color/Finish | All hinges to match door hardware (Do Not Paint) – Matte Black |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Deltana Standard Door Hinge MB | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Deltana |
| Description | |
| Model # | S35R5BK1B |
| Size | 3.5”x3.5” |
| Color/Finish | All hinges to match door hardware (Do Not Paint) – Matte Black |
| Notes | No paintable hinges |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Ives Entry Door Viewer MB | |
|---|---|
|
|
| Location | Unit Entries |
| Manufacturer | Ives |
| Description | Door viewer |
| Model # | |
| Size | |
| Color/Finish | Matte Black |
| Notes | |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Door Saver Interior Door Hinge Pin Stop MB | |
|---|---|
|
|
| Location | Unit Doors Interior |
| Manufacturer | Door Saver |
| Description | Hinge Pin Stop |
| Model # | DoorSaver3 |
| Size | |
| Color/Finish | Matte Black |
| Notes | Provide at doors where base door stop cannot be provided. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Ives Interior Door Stop MB | |
|---|---|
|
|
| Location | Unit Interior |
| Manufacturer | Ives |
| Description | Spring Door Stop |
| Model # | 63FLBK |
| Size | 3" |
| Color/Finish | Matte Black |
| Notes | Provide at wall base where space available |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
Flooring & Hard Surfaces
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Daltile | 3" x 6" Ceramic Wall Tile | Color Wheel Classic | 3" x 6" | 0790 Matte Artic White | Herringbone Pattern with 1/16" joints | $ | NOVEL, RENDER, HARMON |
|
| Bathroom Flooring | Cobalt Katanga | 12 mil LVP | K##-801 | 7"x48" | Myrtle | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 | $ | NOVEL, RENDER, HARMON |
|
| Units | Cobalt Katanga | 12 mil LVP | 7”x48” | Myrtle | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 | $ | NOVEL, RENDER, HARMON |
|
|
| Bedroom/ Closet Flooring | Mohawk | Carpet | Frequencies PM560 | Stony Glade 749 | Provide with 6# carpet padding. | $ | RENDER, HARMON |
|
|
| Units | Cobalt | LVT Matching transition strip | Lengths as shown on drawings | Match LVT Finish | Transition strip from carpet to vinyl flooring. | $ | RENDER, HARMON |
|
| Daltile Kitchen Backsplash AW | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Daltile |
| Description | 3" x 6" Ceramic Wall Tile |
| Model # | Color Wheel Classic |
| Size | 3" x 6" |
| Color/Finish | 0790 Matte Artic White |
| Notes | Herringbone Pattern with 1/16" joints |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Cobalt Bathroom Flooring Myrtle | |
|---|---|
|
|
| Location | Bathroom Flooring |
| Manufacturer | Cobalt Katanga |
| Description | 12 mil LVP |
| Model # | K##-801 |
| Size | 7"x48" |
| Color/Finish | Myrtle |
| Notes | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Cobalt Flooring Myrtle | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Cobalt Katanga |
| Description | 12 mil LVP |
| Model # | |
| Size | 7”x48” |
| Color/Finish | Myrtle |
| Notes | 2.0 mm thickness with 12 mil wear layer. Provide 1/4” Acoustimat sound mat underneath all hard surface finishes. LVP throughout all Units on ground level and LVP to be provided throughout WIC’s where W/D installed. Hannah Verschoore hverschoore@spartansurfaces.com (214) 422-4805 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Mohawk Frequencies | |
|---|---|
|
|
| Location | Bedroom/ Closet Flooring |
| Manufacturer | Mohawk |
| Description | Carpet |
| Model # | Frequencies PM560 |
| Size | |
| Color/Finish | Stony Glade 749 |
| Notes | Provide with 6# carpet padding. |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Flooring Transition Strip | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Cobalt |
| Description | LVT Matching transition strip |
| Model # | |
| Size | Lengths as shown on drawings |
| Color/Finish | Match LVT Finish |
| Notes | Transition strip from carpet to vinyl flooring. |
| Price Point | $ |
| Product Type | RENDER, HARMON |
Interior Paint Colors
| Location | Manufacturer | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|
| Unit Walls | Sherwin Williams | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. | Flat paint finish August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, RENDER, HARMON |
|
| Ceilings | Sherwin Williams | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com | $ | NOVEL, RENDER, HARMON |
|
| Unit Bath Walls and Ceilings | Sherwin Williams | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. | Eg-Shel Finish August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | NOVEL, RENDER, HARMON |
|
| Unit Trim | Sherwin Williams | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. | Eg-Shel Finish. August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | RENDER |
|
| Unit Doors | Sherwin Williams | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. | Eg-Shel (Tone 2) August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | RENDER |
|
| Unit Doors | Sherwin Williams | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. | Eg-Shel Finish August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 | $ | RENDER |
|
| Unit Walls Extra White | |
|---|---|
|
|
| Location | Unit Walls |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. |
| Notes | Flat paint finish August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Ceilings Extra White | |
|---|---|
|
|
|
| Location | Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 - Extra White. 1 coat Painters Edge Latex PE30 Series primer, 1 coat Painters Edge PE30 Series Flat Latex. Use 1 coat Property Solution Interior Latex Eg-Shel Series B20W03050 in bathrooms. |
| Notes | Flat paint finish, except in bathrooms where eggshell finish is to be provided. August E. Favaroth august.e.favaroth@sherwin.com |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Bathroom Extra White | |
|---|---|
|
|
|
| Location | Unit Bath Walls and Ceilings |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. |
| Notes | Eg-Shel Finish August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Unit Trim (RENDER) Extra White | |
|---|---|
|
|
|
| Location | Unit Trim |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. |
| Notes | Eg-Shel Finish. August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | RENDER |
| Unit Entry Door & Balcony Door (Interior Side) (RENDER) - Extra White | |
|---|---|
|
|
|
| Location | Unit Doors |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. |
| Notes | Eg-Shel (Tone 2) August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | RENDER |
| Unit Interior Doors (RENDER) - Extra White | |
|---|---|
|
|
|
| Location | Unit Doors |
| Manufacturer | Sherwin Williams |
| Color/Finish | SW7006 – Extra White; 1 coat Painters Edge Latex PE30 Series primer, 1 coat Property Solutions Interior Latex Eg-Shell Series B20W03050. |
| Notes | Eg-Shel Finish August E. Favaroth august.e.favaroth@sherwin.com (407) 448-2359 |
| Price Point | $ |
| Product Type | RENDER |
Lighting Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Units | GMLighting | 5” 3000K LED Flush Mount | GM-RND5-30-WH | 5” | Round, Matte White Finish | $ | NOVEL, RENDER, HARMON |
|
|
| Kitchen | GMLighting | 5” 3000K LED Flush Mount | GM-RND5-30-WH | 5” | Round, Matte White Finish | See Plans for Locations. Centered between island and counter | $ | NOVEL, RENDER, HARMON |
|
| Units | GMLighting | 8” 3000K LED Flush Mount | GM-RND8-30-WH | 8” | Round, Matte White Finish | See Plans for Locations. | $ | NOVEL, RENDER, HARMON |
|
| Patio | Maxim Lighting | 86401BK | 4”x6.25”x 7.25” | Sconce, Architectural Black Finish | Wet Label / Rated in Balcony Areas | $ | NOVEL, RENDER, HARMON |
|
|
| Ceiling fan / light combo | Westinghouse | Comet | 7233600 | 52" | White | Provide with LED lamps | $ | NOVEL, RENDER, HARMON |
|
| Units | Braeburn | 5-2 Day programmable | 2220NC | White | $ | NOVEL, RENDER, HARMON |
|
||
| Bathroom | Golden Lighting | Zoey 3 Light Bath Vanity | 6956-BA3 BLK-WHT | 24”x9.5”x 7.25” | Chrome with Matte White shades | Center over mirror. Furnish and install 400 lumen 3000K LED Edison Bulb. | $ | NOVEL, RENDER, HARMON |
|
| Kitchen | Golden Lighting | Single Light Pendant | 6956-L BLK-WHT | 16”W x HGT TBD | White exterior finish brushed rod finish | See Plans for Locations. Brushed Chrome finish on support rod. Lights centered over island width. Provide with LED 3000K bulbs. | $ | RENDER, HARMON, NOVEL |
|
| Units | Leviton | Standard outlet. | 12650W | White | $ | RENDER, HARMON |
|
||
| Units | Leviton | Standard switch. | A1221 | White | Coordinate Single Pole/3-Way Switches as shown on documents | $ | RENDER, HARMON |
|
| GMLighting Closet Puck Light 5" 3000K | |
|---|---|
|
|
| Location | Units |
| Manufacturer | GMLighting |
| Description | 5” 3000K LED Flush Mount |
| Model # | GM-RND5-30-WH |
| Size | 5” |
| Color/Finish | Round, Matte White Finish |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| GMLighting Kitchen 5" | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | GMLighting |
| Description | 5” 3000K LED Flush Mount |
| Model # | GM-RND5-30-WH |
| Size | 5” |
| Color/Finish | Round, Matte White Finish |
| Notes | See Plans for Locations. Centered between island and counter |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| GMLighting LR Puck Light 8" | |
|---|---|
|
|
| Location | Units |
| Manufacturer | GMLighting |
| Description | 8” 3000K LED Flush Mount |
| Model # | GM-RND8-30-WH |
| Size | 8” |
| Color/Finish | Round, Matte White Finish |
| Notes | See Plans for Locations. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Maxim Lighting Sconce MB | |
|---|---|
|
|
| Location | Patio |
| Manufacturer | Maxim Lighting |
| Description | |
| Model # | 86401BK |
| Size | 4”x6.25”x 7.25” |
| Color/Finish | Sconce, Architectural Black Finish |
| Notes | Wet Label / Rated in Balcony Areas |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Westinghouse Ceiling Fan 52" White | |
|---|---|
|
|
| Location | Ceiling fan / light combo |
| Manufacturer | Westinghouse |
| Description | Comet |
| Model # | 7233600 |
| Size | 52" |
| Color/Finish | White |
| Notes | Provide with LED lamps |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Braeburn Programmable Thermostat | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Braeburn |
| Description | 5-2 Day programmable |
| Model # | 2220NC |
| Size | |
| Color/Finish | White |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Golden Lighting Bathroom Three Head MB | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Golden Lighting |
| Description | Zoey 3 Light Bath Vanity |
| Model # | 6956-BA3 BLK-WHT |
| Size | 24”x9.5”x 7.25” |
| Color/Finish | Chrome with Matte White shades |
| Notes | Center over mirror. Furnish and install 400 lumen 3000K LED Edison Bulb. |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Golden Lighting Pendant BC | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Golden Lighting |
| Description | Single Light Pendant |
| Model # | 6956-L BLK-WHT |
| Size | 16”W x HGT TBD |
| Color/Finish | White exterior finish brushed rod finish |
| Notes | See Plans for Locations. Brushed Chrome finish on support rod. Lights centered over island width. Provide with LED 3000K bulbs. |
| Price Point | $ |
| Product Type | RENDER, HARMON, NOVEL |
| Standard Outlet | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Standard outlet. |
| Model # | 12650W |
| Size | |
| Color/Finish | White |
| Notes | |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Standard Switch | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Leviton |
| Description | Standard switch. |
| Model # | A1221 |
| Size | |
| Color/Finish | White |
| Notes | Coordinate Single Pole/3-Way Switches as shown on documents |
| Price Point | $ |
| Product Type | RENDER, HARMON |
Moulding Trimwork
| Location | Manufacturer | Description | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|
| Units | MDF Wall Base. | 1"x4" | Primed | Contemporary square profile. | $ | RENDER, HARMON |
|
|
| Units | Door trim | 1"x3" sides. 1"x3" header | $ | NOVEL, RENDER, HARMON |
|
|||
| Units | Window Apron & Stool | 4" apron 8” sill | FJP - Contemporary square profile with eased edges. Apron to be square cut at each end. | $$ | NOVEL, RENDER, HARMON |
|
||
| Units | Organized Living | Closet Shelving | Wire and Rod Shelving | White | Provide brackets and wall anchors as needed to support shelves. Provide single long hang and double short hang shelving per drawings with continuous hanger rods on each shelf. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 | $ | RENDER, HARMON |
|
| Units | Organized Living | Close mesh wire shelving. | 1.5” high x 16” deep close mesh wire shelving | White | Provide brackets and wall anchors as needed to support shelves. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 | $ | RENDER, HARMON, NOVEL |
|
| Wall Base 1x4 MDF | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | MDF Wall Base. |
| Size | 1"x4" |
| Color/Finish | Primed |
| Notes | Contemporary square profile. |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Door Casing Trim 1"x3" sides. 1"x3" header MDF | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Door trim |
| Size | 1"x3" sides. 1"x3" header |
| Color/Finish | |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Window Apron & Sill 4", 8" Paint Grade Pine | |
|---|---|
|
|
| Location | Units |
| Manufacturer | |
| Description | Window Apron & Stool |
| Size | 4" apron 8” sill |
| Color/Finish | |
| Notes | FJP - Contemporary square profile with eased edges. Apron to be square cut at each end. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Organized Living Closet Wire Shelving | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Organized Living |
| Description | Closet Shelving |
| Size | Wire and Rod Shelving |
| Color/Finish | White |
| Notes | Provide brackets and wall anchors as needed to support shelves. Provide single long hang and double short hang shelving per drawings with continuous hanger rods on each shelf. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Organized Living Close Mesh Wire Shelving | |
|---|---|
|
|
| Location | Units |
| Manufacturer | Organized Living |
| Description | Close mesh wire shelving. |
| Size | 1.5” high x 16” deep close mesh wire shelving |
| Color/Finish | White |
| Notes | Provide brackets and wall anchors as needed to support shelves. Kyle Wilkins kwilkins@organizedliving.com (513) 205-2527 |
| Price Point | $ |
| Product Type | RENDER, HARMON, NOVEL |
Plumbing Fixtures
| Location | Manufacturer | Description | Model # | Size | Color/Finish | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Kitchen | Pfister | Pfirst Series Pull Down Kitchen Faucet | G529-PF2C | Polished Chrome | Single hold with pull down spray | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Pfister | McAllen Bathroom Faucet | LG42MCAOC | Polished Chrome | Single Hole | $ | NOVEL, RENDER, HARMON |
|
|
| Bathroom | Pfister | Tub & Shower combo | R89-0700w/ LJ15-070C | Polished Chrome | $ | NOVEL, RENDER, HARMON |
|
||
| Bathroom | Pfister | ADA handheld shower with slide bar | LG16-500C | Polished Chrome | $ | NOVEL, RENDER, HARMON |
|
||
| Bathroom | Pfister | Contempra Shower Diverter | 016-NC1C | Polished Chrome | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | RENDER, HARMON, NOVEL |
|
|
| Bathroom | Pfister | Universal Mixing Valve | JX8-340A | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 | $ | NOVEL, RENDER, HARMON |
|
||
| Bathroom | Sterling | Forum Vikrell Tub | 7161120 | 60”x32”x20” | White | Provide vinyl quarter round along base of pan. Drain to match shower fixture finish. Provide with Traverse wall panels. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $ | RENDER, HARMON |
|
| Bathroom | Sterling | Reserve Vikrell Wall Panels | 71914100 | 57” High x tub lengths | White | Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 | $ | RENDER, HARMON |
|
| Bathroom | Western Pottery | Two Piece Elongated 1.28 GPF | B872 | 17-1/4" rim height | White | $ | NOVEL, RENDER, HARMON |
|
|
| Shower Pan | Sterling | Guard + Shower Pan | 95079-0 | Dimensions per Architectural Plans | White | Provide vinyl quarter round along base of pan. Drain to match shower fixture finish. | $$ | NOVEL, RENDER, HARMON |
|
| Bathroom | Barrier Free | Shower Pan with Removable Threshold | P6331A75B | Dimensions per Architectural Plans | White | Drain to match shower fixture finish. Provide with cultured marble side panels. | $$ | NOVEL, RENDER, HARMON |
|
| Bathroom | Mincey Marble | Subway Shower Wall Panel System | TS-VN: 3x6 Shower Wall Panel | 32”x80 side panels and 60”x80” back panel | White | $ | RENDER, HARMON |
|
| Pfister Kitchen Sink PC | |
|---|---|
|
|
| Location | Kitchen |
| Manufacturer | Pfister |
| Description | Pfirst Series Pull Down Kitchen Faucet |
| Model # | G529-PF2C |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | Single hold with pull down spray |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Pfister Bathroom Sink PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | McAllen Bathroom Faucet |
| Model # | LG42MCAOC |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | Single Hole |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Pfister Tub/Shower Trim PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Tub & Shower combo |
| Model # | R89-0700w/ LJ15-070C |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Pfister ADA Hand Held Shower Head PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | ADA handheld shower with slide bar |
| Model # | LG16-500C |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |

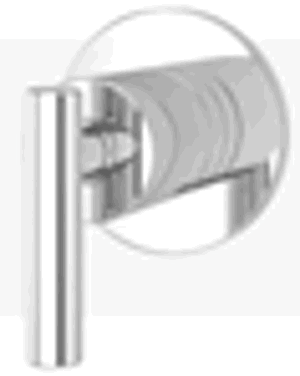

| Pfister Diverter Valve PC | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Contempra Shower Diverter |
| Model # | 016-NC1C |
| Size | |
| Color/Finish | Polished Chrome |
| Notes | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | RENDER, HARMON, NOVEL |
| Pfister Mixing Valve | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Pfister |
| Description | Universal Mixing Valve |
| Model # | JX8-340A |
| Size | |
| Color/Finish | |
| Notes | Shannon Irby shannon.irby@assaabloy.com (561) 345-0861 |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Sterling 32" Bathtub | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Sterling |
| Description | Forum Vikrell Tub |
| Model # | 7161120 |
| Size | 60”x32”x20” |
| Color/Finish | White |
| Notes | Provide vinyl quarter round along base of pan. Drain to match shower fixture finish. Provide with Traverse wall panels. Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Sterling Reserve Wall Panels | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Sterling |
| Description | Reserve Vikrell Wall Panels |
| Model # | 71914100 |
| Size | 57” High x tub lengths |
| Color/Finish | White |
| Notes | Giovanna Carchidi giovanna.carchidi@kohler.com (267) 530-3363 |
| Price Point | $ |
| Product Type | RENDER, HARMON |
| Western Pottery Comfort Height Toilet | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Western Pottery |
| Description | Two Piece Elongated 1.28 GPF |
| Model # | B872 |
| Size | 17-1/4" rim height |
| Color/Finish | White |
| Notes | |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
| Sterling FHA Shower Pan 38x60 | |
|---|---|
|
|
| Location | Shower Pan |
| Manufacturer | Sterling |
| Description | Guard + Shower Pan |
| Model # | 95079-0 |
| Size | Dimensions per Architectural Plans |
| Color/Finish | White |
| Notes | Provide vinyl quarter round along base of pan. Drain to match shower fixture finish. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Barrier Free Roll-in Shower Pan | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Barrier Free |
| Description | Shower Pan with Removable Threshold |
| Model # | P6331A75B |
| Size | Dimensions per Architectural Plans |
| Color/Finish | White |
| Notes | Drain to match shower fixture finish. Provide with cultured marble side panels. |
| Price Point | $$ |
| Product Type | NOVEL, RENDER, HARMON |
| Mincey Cultured Wall Panels | |
|---|---|
|
|
| Location | Bathroom |
| Manufacturer | Mincey Marble |
| Description | Subway Shower Wall Panel System |
| Model # | TS-VN: 3x6 Shower Wall Panel |
| Size | 32”x80 side panels and 60”x80” back panel |
| Color/Finish | White |
| Notes | |
| Price Point | $ |
| Product Type | RENDER, HARMON |
Window Treatments
| Location | Manufacturer | Description | Model # | Size | Color/Material | Notes | Price Point | Product Type | Image |
|---|---|---|---|---|---|---|---|---|---|
| Unit Windows | Hunter Douglas | 2" Faux Woods Blind | Everywood | Per Drawings | Match Window Frames | Inside mount - smooth finish - contemporary valence option; Cordless Option | $ | NOVEL, RENDER, HARMON |
|
| Hunter Douglas 2" Blinds | |
|---|---|
|
|
| Location | Unit Windows |
| Manufacturer | Hunter Douglas |
| Description | 2" Faux Woods Blind |
| Model # | Everywood |
| Size | Per Drawings |
| Color/Material | Match Window Frames |
| Notes | Inside mount - smooth finish - contemporary valence option; Cordless Option |
| Price Point | $ |
| Product Type | NOVEL, RENDER, HARMON |
